DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H80SV12008PRFSDC DC CONVERTER 12V 102W |
100 |
|
Datasheet | H80SV (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 16.8V | 137.5V | 12V | - | - | - | 8.5A | 102 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | Half Brick | Enable, Active High | - | - |
|
|
Q80SV05030PRFS14.4-170VIN, 5VOUT, 150W, EN5015 |
4,897 |
|
Datasheet | Q80SV_150W (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 14.4V | 170V | 5V | - | - | - | 30A | 150 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 88.3% | - | - | Through Hole | Quarter Brick | Enable, Active High | EN, UL | 60950-1; 62368-1 |
|
|
Q48SK12067NRDHDC DC CONVERTER 12V 800W |
1,094 |
|
Datasheet | Delphi Q48SK (800W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 67A | 804 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink, PMBus™, Remote On/Off | -40°C ~ 85°C | 96.3% | - | - | Through Hole | Quarter Brick | - | - | 62368-1 |
|

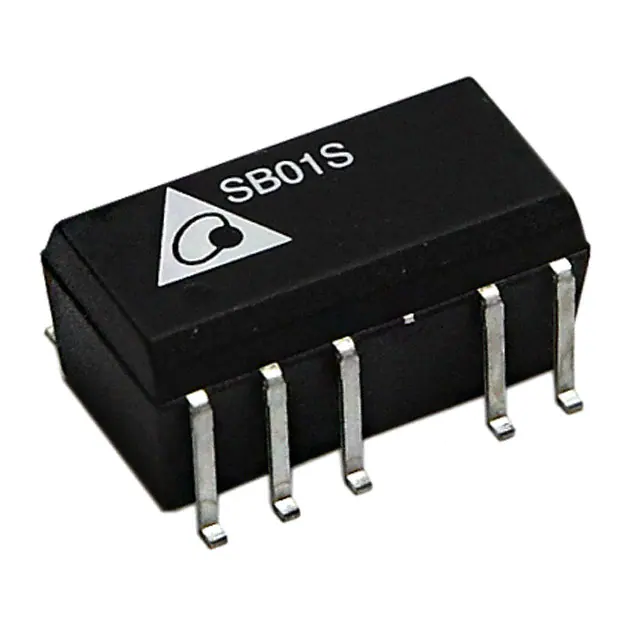

SB01D1212ADC DC CONVERTER +/-12V 1W |
310 |
|
Datasheet | SB01S/D (2W) | 12-SMD Module, 10 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
DH06D1215ADC DC CONVERTER +/-15V 6W |
111 |
|
Datasheet | DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
DF04D2412ADC DC CONVERTER +/-12V 4W |
110 |
|
Datasheet | DF04S/D (4W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 167mA, 167mA | 4 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 83% | - | - | Through Hole | - | - | - | - |
|

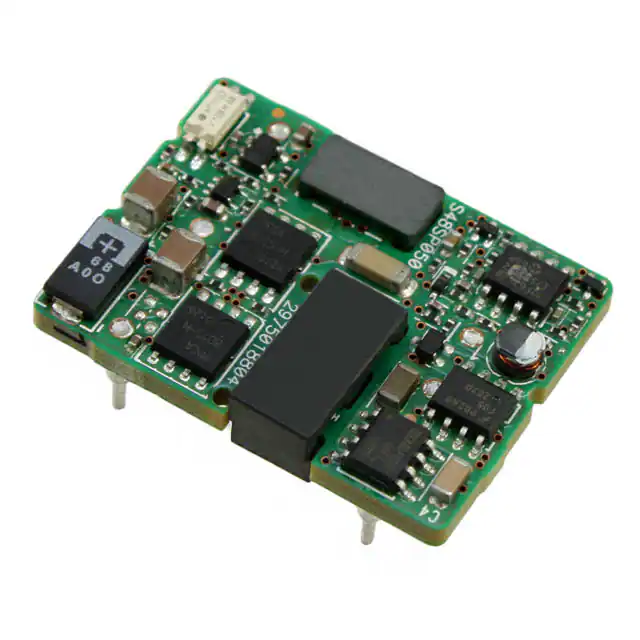

S48SP05007NRFBDC DC CONVERTER 5V 35W |
112 |
|
Datasheet | Delphi S48SP (35W) | 6-DIP Module, 1x1 Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 7A | 35 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 111°C | 90% | - | - | Through Hole | - | Enable, Active Low | - | - |
|

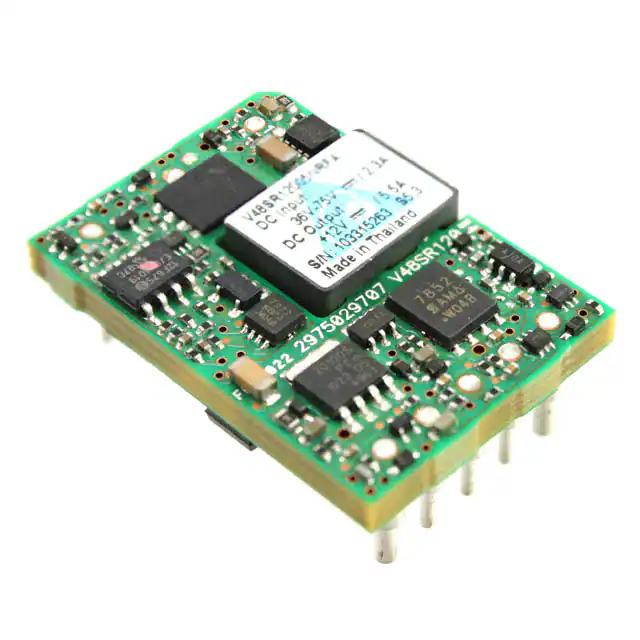

V48SR12005NRFADC DC CONVERTER 12V 66W |
102 |
|
- |
Delphi V48SR (66W) | 8-DIP Module, 1/16 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 5.5A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 120°C | 91% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
Q54SH12050NNDHDC DC CONVERTER 11.8V 602W |
105 |
|
Datasheet | Q54SH (600W) | Quarter Brick | Box | Active | Isolated Module | 1 | 40V | 60V | 11.8V | - | - | - | 51A | 602 W | 707 V | ITE (Commercial) | PMBus™, Remote On/Off | -20°C ~ 85°C | 97.8% | - | - | Through Hole | Quarter Brick | Enable, Active Low | - | - |
|
|
DH06D2412ADC DC CONVERTER +/-12V 6W |
3,530 |
|
Datasheet | DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
