DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gull Wing12.7mm.jpg)
|

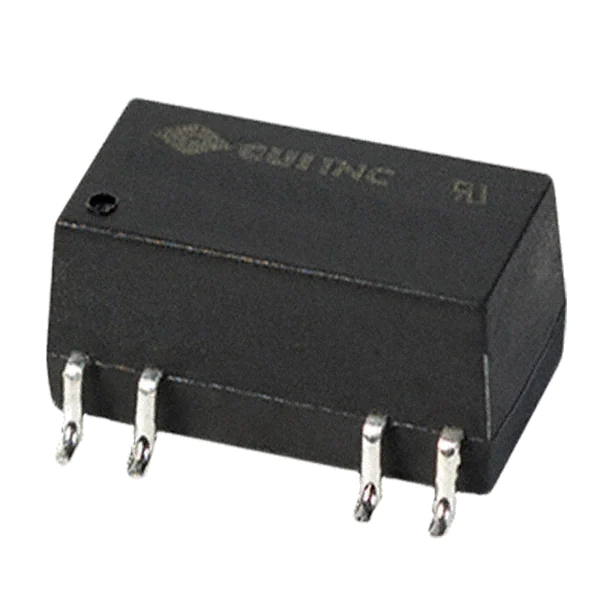

PQM1-S24-S15-M-TRDC DC CONVERTER 15V 1W |
4,488 |
|
Datasheet | PQM1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 22.8V | 25.2V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
|
PQM1-S24-S5-M-TRDC DC CONVERTER 5V 1W |
3,616 |
|
Datasheet | PQM1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
PDM2-S12-S3-SDC DC CONVERTER 3.3V 2W |
1,549 |
|
Datasheet | PDM2-S (2W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | - | - |
|
PDM2-S24-D3-SDC DC CONVERTER +/-3.3V 2W |
4,191 |
|
Datasheet | PDM2-S (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 3.3V | -3.3V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - |
|
PQA30-D24-S12-DHDC DC CONVERTER 12V 30W |
1,380 |
|
Datasheet | PQA30-D (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PQA30-D24-S9-DHDC DC CONVERTER 9V 30W |
2,594 |
|
Datasheet | PQA30-D (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 3.33A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PDM1-S3-S5-SDC DC CONVERTER 5V 1W |
3,312 |
|
Datasheet | PDM1-S (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 78% | - | - | Through Hole | - | - | - | - |
|
|
PDM1-S15-D12-SDC DC CONVERTER +/-12V 1W |
4,483 |
|
Datasheet | PDM1-S (1W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - |
.jpg)
|
PDS1-S3-D5-M-TRDC DC CONVERTER +/-5V 1W |
3,478 |
|
Datasheet | PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 2.97V | 3.63V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 78% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
|
PDS1-S3-D12-M-TRDC DC CONVERTER +/-12V 1W |
2,944 |
|
Datasheet | PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 78% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
