DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

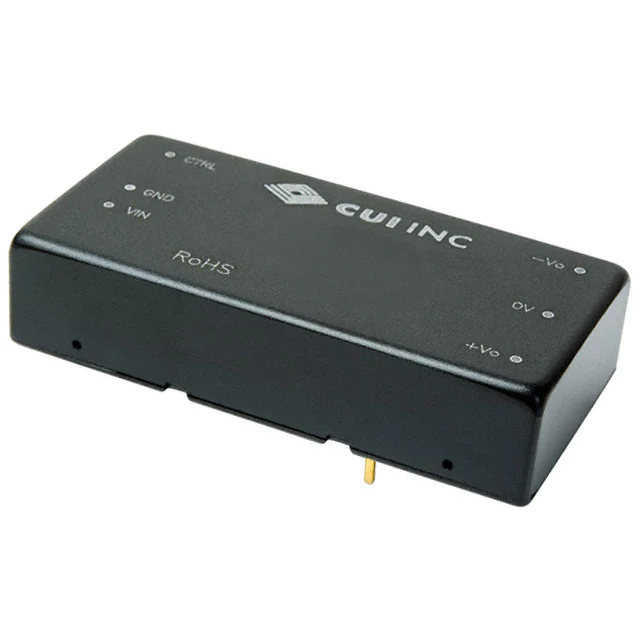

PYB10-Q48-S15DC DC CONVERTER 15V 10W |
1,811 |
|
Datasheet | PYB10 (10W) | 6-DIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | EN | 55024 |
|
PQA50-D24-S5-DDC DC CONVERTER 5V 50W |
3,150 |
|
Datasheet | PQA50-D (50W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PQA50-D24-S12-DDC DC CONVERTER 12V 50W |
1,440 |
|
Datasheet | PQA50-D (50W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.167A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PQA50-D48-S12-DDC DC CONVERTER 12V 50W |
4,752 |
|
Datasheet | PQA50-D (50W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4.167A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | CB Scheme, IEC | 60950-1 |
|
|
PQA50-D48-S24-DDC DC CONVERTER 24V 50W |
2,440 |
|
Datasheet | PQA50-D (50W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 2.083A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | - | - |
|
PDM2-S12-S12-DDC DC CONVERTER 12V 2W |
4,850 |
|
Datasheet | PDM2-D (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDM2-S12-S24-DDC DC CONVERTER 24V 2W |
3,461 |
|
Datasheet | PDM2-D (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDM2-S24-D12-DDC DC CONVERTER +/-12V 2W |
1,754 |
|
Datasheet | PDM2-D (2W) | 14-DIP Module, 6 Leads | Box | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDM2-S5-D15-DDC DC CONVERTER +/-15V 2W |
1,388 |
|
Datasheet | PDM2-D (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDM2-S5-D7-DDC DC CONVERTER +/-7V 2W |
4,680 |
|
Datasheet | PDM2-D (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 7V | -7V | - | - | 142mA, 142mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - |
