DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDM2-S24-D12-SDC DC CONVERTER +/-12V 2W |
2,889 |
|
Datasheet | PDM2-S (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PQD6-Q24-D12-DDC DC CONVERTER +/-12V 6W |
2,953 |
|
Datasheet | PQD6-D (6W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - |
|
|
PQD6-Q24-S5-DDC DC CONVERTER 5V 6W |
4,004 |
|
Datasheet | PQD6-D (6W) | 5-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | EN | 55024 |
|
PQD6-Q24-S24-DDC DC CONVERTER 24V 6W |
2,160 |
|
Datasheet | PQD6-D (6W) | 5-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | EN | 55024 |
|
|
PQD6-Q48-S5-DDC DC CONVERTER 5V 6W |
1,789 |
|
Datasheet | PQD6-D (6W) | 5-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | EN | 55024 |
|
|
PQD6-Q24-S12-DDC DC CONVERTER 12V 6W |
1,464 |
|
Datasheet | PQD6-D (6W) | 5-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | EN | 55024 |
|

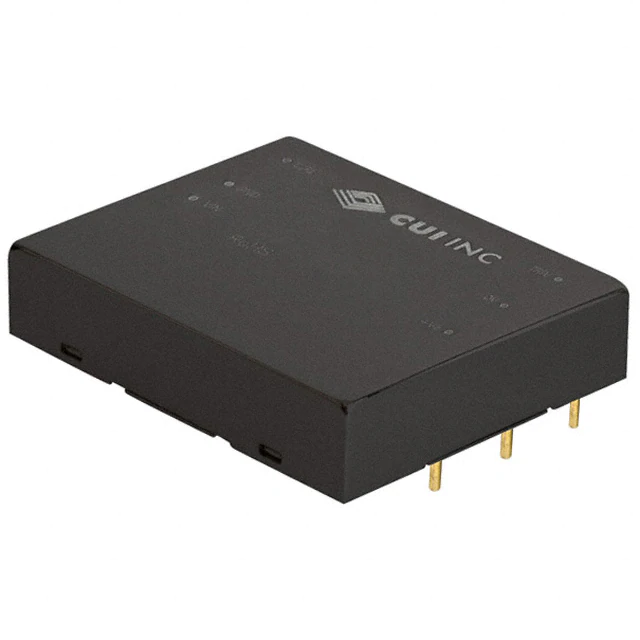

PYB30-Q48-T515DC DC CONVERTER 5V +/-15V 30W |
4,953 |
|
Datasheet | PYB30 (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 18V | 75V | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PYB30-Q48-T315DC DC CONVERTER 3.3V +/-15V 30W |
3,376 |
|
Datasheet | PYB30 (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 18V | 75V | 3.3V | 15V | -15V | - | 3.5A, 500mA, 500mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | Enable, Active High | - | - |
|
PYB10-Q24-D5DC DC CONVERTER +/-5V 10W |
1,020 |
|
Datasheet | PYB10 (10W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
|
PYB10-Q24-S3DC DC CONVERTER 3.3V 10W |
1,974 |
|
Datasheet | PYB10 (10W) | 6-DIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2.4A | 10 W | 1.5 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - |
