DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQA30-D24-S5-DDC DC CONVERTER 5V 30W |
1,333 |
|
Datasheet | PQA30-D (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
|
PQA30-D24-S9-DDC DC CONVERTER 9V 30W |
1,053 |
|
Datasheet | PQA30-D (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 3.33A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PQA30-D48-S15-DDC DC CONVERTER 15V 30W |
4,267 |
|
Datasheet | PQA30-D (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
|
PQA30-D48-S3-DDC DC CONVERTER 3.3V 30W |
1,176 |
|
Datasheet | PQA30-D (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
|
AE40B-UW-S24DC-DC ISOLATED, 40 W, 250~1500 V |
3,313 |
|
Datasheet | AE40B-UW (40W) | 4-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 250V | 1500V | 24V | - | - | - | 1.67A | 40 W | 5.6 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CE, UKCA | - |
|
|
PRC60-48-D24DC-DC, ISOLATED, 60 W, 18~75 VDC |
1,392 |
|
Datasheet | PRC60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 24V | -24V | - | - | 1.25A, 1.25A | 60 W | 1.6 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | CE, UKCA | 62368-1 |
|
|
PTP20-12-S15DC-DC, ISOLATED, 15 W, 9~18 VDC |
4,907 |
|
Datasheet | PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 1.333A | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | - | - | CE, UKCA | 60601-1 |
|
|
PRC60-24-D24DC-DC, ISOLATED, 60 W, 9 ~ 36 VD |
1,230 |
|
Datasheet | PRC60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 1.25A, 1.25A | 60 W | 1.6 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | CE, UKCA | 62368-1 |
|
PYB30-Q24-T512DC DC CONVERTER 5V +/-12V 30W |
2,206 |
|
Datasheet | PYB30 (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 9V | 36V | 5V | 12V | -12V | - | 3A, 625mA, 625mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|

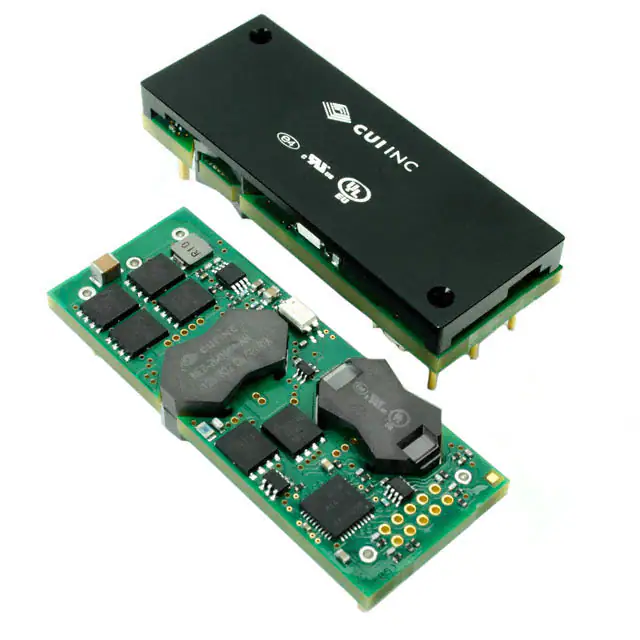

NEB-300NWA-ANHDC DC CONVERTER 12V 300W |
2,899 |
|
Datasheet | Novum®, NEB-N | 5-DIP Module, 1/8 Brick | Tray | Not For New Designs | Intermediate Bus Converter | 1 | 40V | 60V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 95.2% | - | - | Through Hole | - | Enable, Active Low | - | - |
