DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE10-EW-S9DC DC CONVERTER 9V 10W |
4,491 |
|
Datasheet | AE10-EW (10W) | 5-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 100V | 1000V | 9V | - | - | - | 1.11A | 10 W | 4 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 70°C (With Derating) | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|

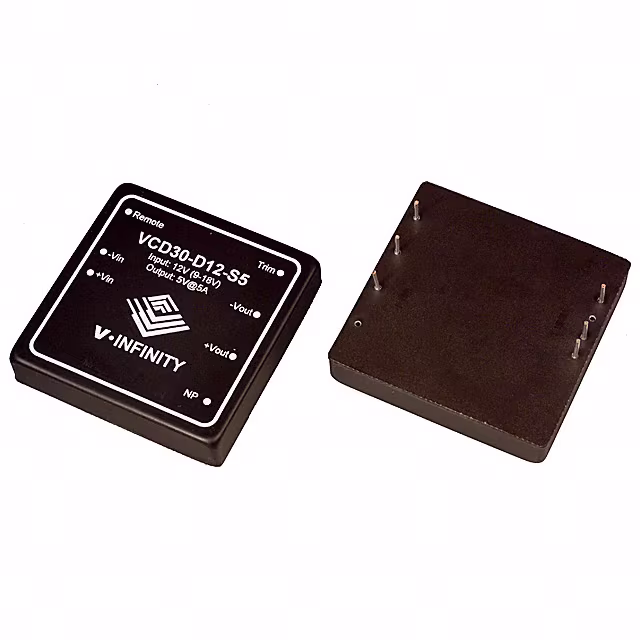

VCD30-D12-S5DC DC CONVERTER 5V 30W |
2,264 |
|
Datasheet | VCD30 | 8-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 5A | 30 W | 500 V | ITE (Commercial) | Remote On/Off, SCP | -25°C ~ 71°C | 78% | - | - | Through Hole | - | Enable, Active High | UL | 60950-1 |
|
PTP15-48-S15DC-DC, ISOLATED, 15 W, 36~75 VDC |
2,621 |
|
Datasheet | PTP15 (15W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 1A | 15 W | 5.6 kV | Medical | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | CE, UKCA | 60601-1 |
|
|
PQC60-24-S5DC-DC ISOLATED, 60 W, 9~36 VDC I |
1,920 |
|
Datasheet | PQC60 (60W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | - | - | - | 62368-1 |
|
AE15-EW-S24DC DC CONVERTER 24V 15W |
3,564 |
|
Datasheet | AE15-EW (15W) | 5-DIP Module | Tray | Obsolete | Isolated Module | 1 | 100V | 1000V | 24V | - | - | - | 625mA | 15 W | 4 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 70°C (With Derating) | 80% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
AE15-EW-S12DC DC CONVERTER 12V 15W |
3,929 |
|
Datasheet | AE15-EW (15W) | 5-DIP Module | Tray | Obsolete | Isolated Module | 1 | 100V | 1000V | 12V | - | - | - | 1.25A | 15 W | 4 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 70°C (With Derating) | 77% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
AE15-EW-S15DC DC CONVERTER 15V 15W |
3,952 |
|
Datasheet | AE15-EW (15W) | 5-DIP Module | Tray | Obsolete | Isolated Module | 1 | 100V | 1000V | 15V | - | - | - | 1A | 15 W | 4 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 70°C (With Derating) | 78% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PQC60-24-S5-HDC-DC ISOLATED, 60 W, 9~36 VDC I |
4,620 |
|
Datasheet | PQC60 (60W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | - | - | - | 62368-1 |
|
NEB-300NWA-ANDC DC CONVERTER 12V 300W |
3,858 |
|
Datasheet | Novum®, NEB-N | 5-DIP Module, 1/8 Brick | Tray | Not For New Designs | Intermediate Bus Converter | 1 | 40V | 60V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 95.2% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
PQA30-D24-S12-DDC DC CONVERTER 12V 30W |
4,204 |
|
Datasheet | PQA30-D (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | CB Scheme, EN, IEC, UL | 55024; 60950-1 |
