DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYBJ15-Q48-S3-OMDC DC CONVERTER 3.3V 15W |
4,376 |
|
Datasheet | PYBJ15 (15W) | 15-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 4.5A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
VPOL5A-5-SMT-TRDC DC CONVERTER 0.8-3.6V 18W |
4,204 |
|
Datasheet | VPOL5A | 5-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.8 ~ 3.6V | - | - | - | 5A | 18 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | - | Enable, Active High | - | - |
|

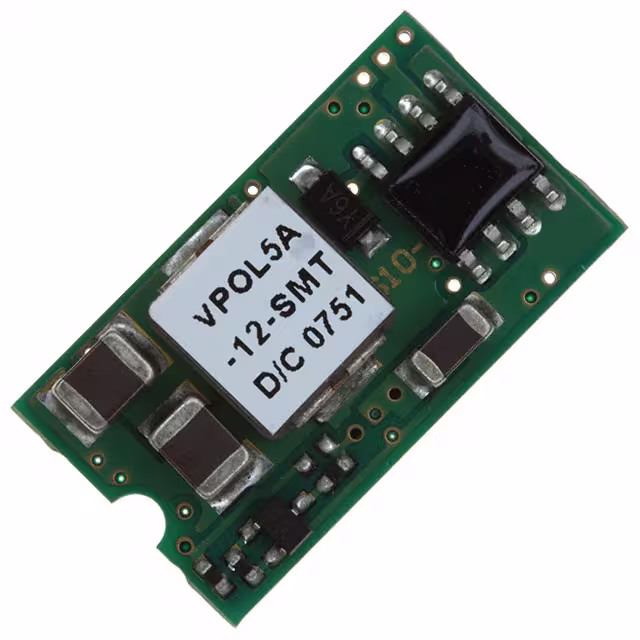

VPOL5A-12-SMTDC DC CONVERTER 0.75-5V 5A |
2,180 |
|
Datasheet | VPOL5A | 5-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.75 ~ 5V | - | - | - | 5A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
PYB10-Q48-D15DC DC CONVERTER +/-15V 10W |
3,682 |
|
Datasheet | PYB10 (10W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | EN | 55024 |
|
PYBE30-Q24-D15DC DC CONVERTER +/-15V 30W |
2,859 |
|
Datasheet | PYBE30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | - | - | CE, cURus | - |
|
|
PYBE30-Q48-D12DC DC CONVERTER +/-12V 30W |
3,806 |
|
Datasheet | PYBE30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | - | - | CE, cURus | - |
|
PYBJ15-Q48-S5-ODDC DC CONVERTER 5V 15W |
1,207 |
|
Datasheet | PYBJ15 (15W) | 14-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PYBJ15-Q24-S5-ODDC DC CONVERTER 5V 15W |
2,003 |
|
Datasheet | PYBJ15 (15W) | 14-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PYBJ15-Q24-S5-OMDC DC CONVERTER 5V 15W |
4,503 |
|
Datasheet | PYBJ15 (15W) | 15-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
|
PYBJ15-Q48-S5-OMDC DC CONVERTER 5V 15W |
3,505 |
|
Datasheet | PYBJ15 (15W) | 15-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
