DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDM1-S24-S15-SDC DC CONVERTER 15V 1W |
1,944 |
|
Datasheet | PDM1-S (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3 |
|
|
PDM1-S24-S9-SDC DC CONVERTER 9V 1W |
3,755 |
|
Datasheet | PDM1-S (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

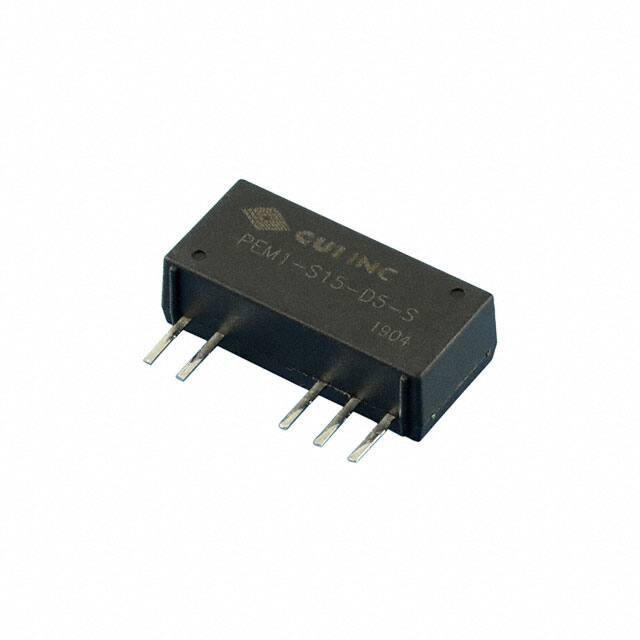

PEM1-S15-D5-SDC DC CONVERTER +/-5V 1W |
4,455 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - |
|
PEM1-S12-D3-SDC DC CONVERTER +/-3.3V 1W |
2,903 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 73% | - | - | Through Hole | - | - | - | - |
|
PDS1-S12-S9-M-TRDC DC CONVERTER 9V 1W |
4,151 |
|
Datasheet | PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S5-S9-M-TRDC DC CONVERTER 9V 1W |
3,047 |
|
Datasheet | PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S24-S24-M-TRDC DC CONVERTER 24V 1W |
1,781 |
|
Datasheet | PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S5-S12-M-TRDC DC CONVERTER 12V 1W |
2,766 |
|
Datasheet | PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
PEME2-S12-D15-SDC-DC 3KV ISOLATED, 2 W, 10.8~13 |
4,199 |
|
Datasheet | PEME2-S (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2.01 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
|
PES1-S12-S9-MDC DC CONVERTER 9V 1W |
3,159 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
