DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQB3-D12-D12-DDC DC CONVERTER +/-12V 3W |
1,687 |
|
Datasheet | PQB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PVB3-D12-D12-DDC DC CONVERTER +/-12V 3W |
4,955 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PVB3-D12-D5-DDC DC CONVERTER +/-5V 3W |
4,938 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PVB3-D12-D15-DDC DC CONVERTER +/-15V 3W |
1,053 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Bulk | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PQC20-48-S28-ODC-DC ISOLATED, 20 W, 36~75 VDC |
1,592 |
|
Datasheet | PQC20-O (20W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 60V | 28V | - | - | - | 714mA | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | - | - | 62368-1 |
|
|
PQC20-48-S15-ODC-DC ISOLATED, 20 W, 36~75 VDC |
2,085 |
|
Datasheet | PQC20-O (20W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 60V | 15V | - | - | - | 1.333A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | Sixteenth Brick | - | - | 62368-1 |
|
|
PVB3-D5-S5-DDC DC CONVERTER 5V 3W |
4,789 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 73% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|

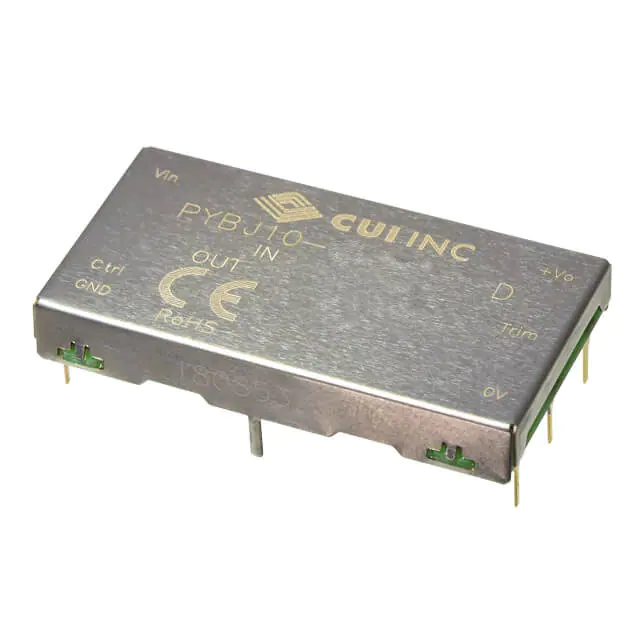

PYBJ10-Q24-S5-DDC DC CONVERTER 5V 10W |
4,644 |
|
Datasheet | PYBJ10 (10W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CB Scheme, IEC, UL | 62368-1 |
|
PDQE10-Q48-S3-DDC DC CONVERTER 3.3V 7.9W |
2,077 |
|
Datasheet | PDQE10 (10W) | 6-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2.4A | 7.9 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDQE10-Q48-S15-DDC DC CONVERTER 15V 10W |
1,973 |
|
Datasheet | PDQE10 (10W) | 6-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
