DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PUZ3-D5-D15-DDC DC CONVERTER +/-15V 3W |
2,132 |
|
Datasheet | PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PQDE6W-Q48-S15-DDC DC CONVERTER 15V 6W |
3,699 |
|
Datasheet | PQDE6W-D (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PQC20-48-S24-ODC-DC ISOLATED, 20 W, 36~75 VDC |
2,249 |
|
Datasheet | PQC20-O (20W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 60V | 24V | - | - | - | 833mA | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | - | - | 62368-1 |
|

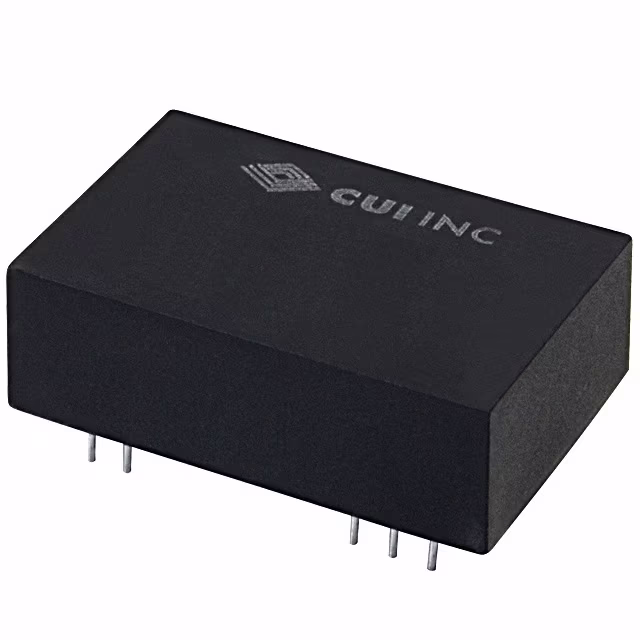

PVB3-D24-S5-DDC DC CONVERTER 5V 3W |
1,753 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 60950-1 |
|
|
PVB3-D48-S15-DDC DC CONVERTER 15V 3W |
4,065 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 86% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PVB3-D48-D12-DDC DC CONVERTER +/-12V 3W |
4,815 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 83% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PVB3-D48-D5-DDC DC CONVERTER +/-5V 3W |
4,335 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PVB3-D48-S12-DDC DC CONVERTER 12V 3W |
1,826 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 83% | - | - | Through Hole | - | - | - | - |
|
|
PVB3-D48-S5-DDC DC CONVERTER 5V 3W |
2,096 |
|
Datasheet | PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | - | - |
|
PRMC3-D48-D15-SDC DC CONVERTER +/-15V 3W |
3,338 |
|
Datasheet | PRMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
