DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

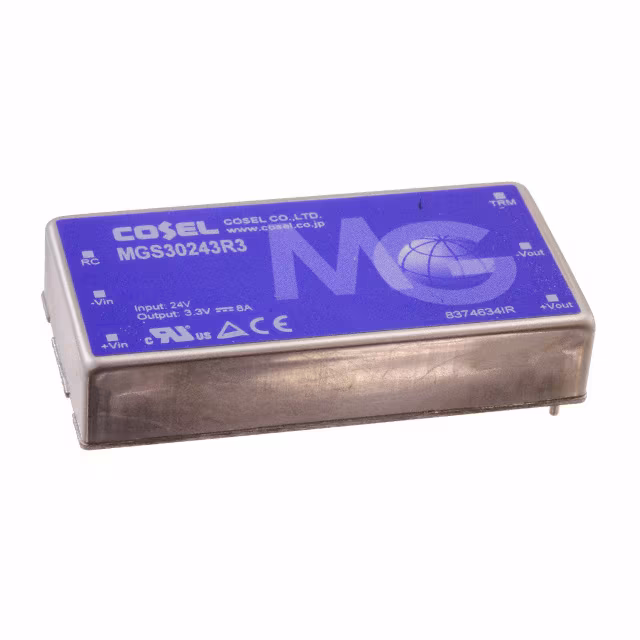

MGS30243R3DC DC CONVERTER 3.3V |
176 |
|
Datasheet | MGS (30W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 8A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | - | - |
|
MGW304812DC DC CONVERTER +/-12V |
3,316 |
|
Datasheet | MGW (30W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 36V | 76V | 12V or 24V | -12V | - | - | 1.25A, 1.25A | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP, OVP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - |
|
|
MGW301215DC DC CONVERTER +/-15V |
1,869 |
|
Datasheet | MGW (30W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 9V | 18V | 15V or 30V | -15V | - | - | 1A, 1A | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP, OVP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - |
|
MGFW302405DC DC CONVERTER +/-5V |
2,242 |
|
Datasheet | MGFW (30W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 5V or 10V | -5V | - | - | 2A, 2A | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - |
|
|
MGFW304812DC DC CONVERTER +/-12V |
2,848 |
|
Datasheet | MGFW (30W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 1.25A, 1.25A | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - |
|
MGFS152412DC DC CONVERTER 12V |
4,090 |
|
Datasheet | MGFS (15W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - |
.jpg)
|
MGFW402412DC DC CONVERTER +/-12V 41W |
114 |
|
Datasheet | MGFW (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V or 24V | -12V | - | - | 1.7A, 1.7A | 41 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|

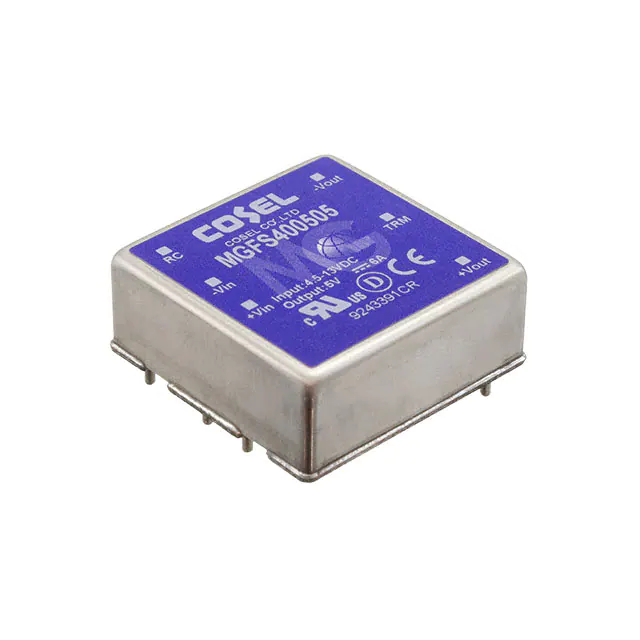

MGFS400505DC DC CONVERTER 5V 30W |
2,413 |
|
Datasheet | MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 13V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, DEMKO | - |
|
|
MGFS402415DC DC CONVERTER 15V 41W |
1,951 |
|
Datasheet | MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2.7A | 41 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, DEMKO | - |
|
CHS804805DC DC CONVERTER 5V |
1,154 |
|
Datasheet | CHS (80W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 16A | - | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | - | - |
