DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

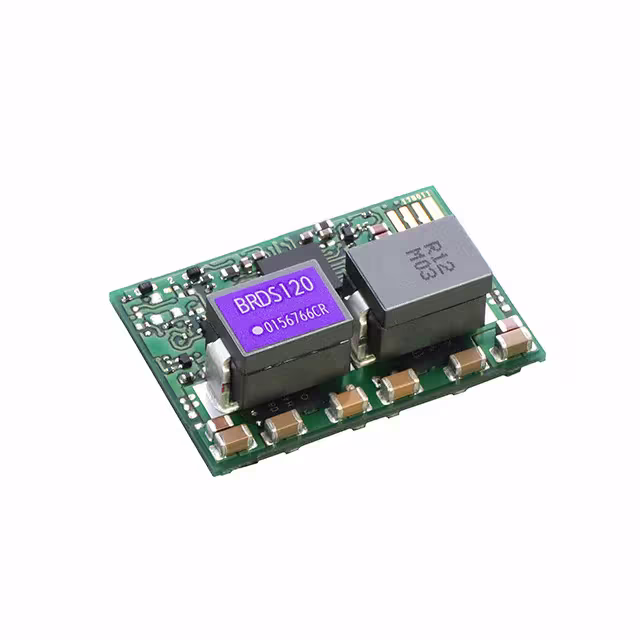

BRDS120DC DC CONVERTER 0.6-1.8V |
303 |
|
Datasheet | BRDS | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.6 ~ 1.8V | - | - | - | 120A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 89% | - | - | Surface Mount | Sixteenth Brick | - | CE, cURus, TUV | - |
.jpg)
|
MGFW804812DC DC CONVERTER +/-12V 82W |
4,732 |
|
Datasheet | MGFW (80W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 3.4A, 3.4A | 82 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|
|
MGFS802412DC DC CONVERTER 12V 80W |
2,615 |
|
Datasheet | MGFS (80W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.7A | 80 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|

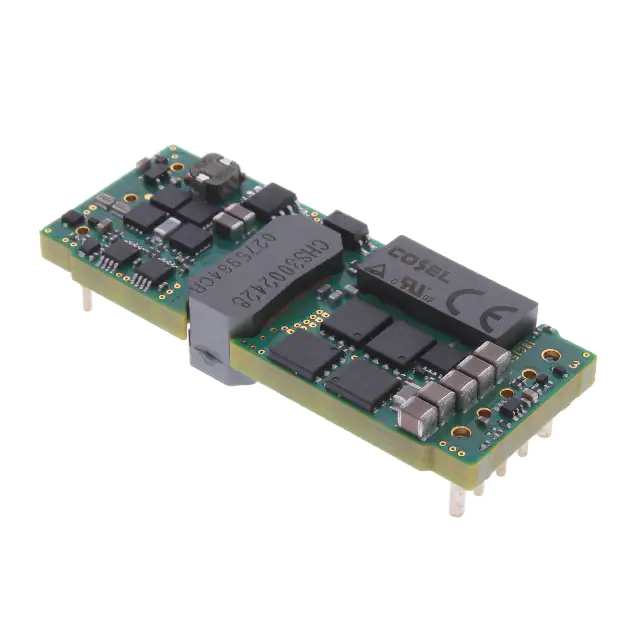

CHS3002428DC DC CONVERTER 28V 252W |
4,414 |
|
Datasheet | CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 9A | 252 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, TUV | - |
|

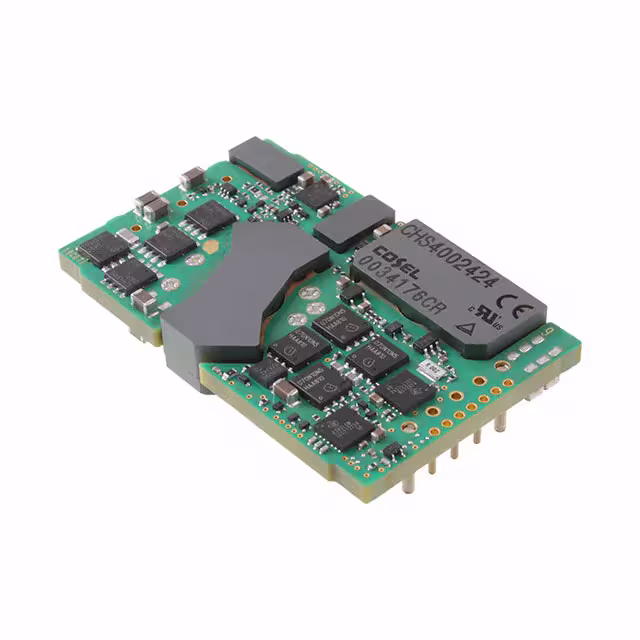

CHS4002424DC DC CONVERTER 24V 348W |
3,486 |
|
Datasheet | CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 14.5A | 348 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|

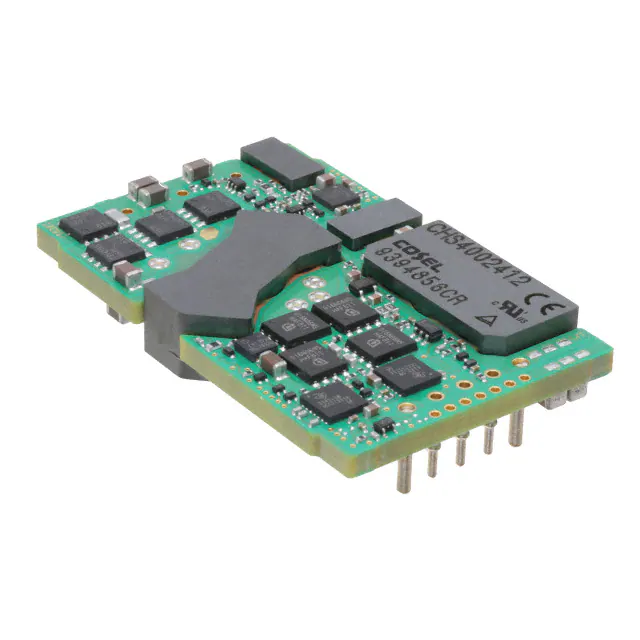

CHS4002412DC DC CONVERTER 12V 318W |
1,973 |
|
Datasheet | CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 26.5A | 318 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 93.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
CHS5004812DC DC CONVERTER 12V |
2,421 |
|
Datasheet | CHS (500W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 42A | 500 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | Enable, Active Low | cUL, UL | 60950-1 |
|
DHS250B48DC DC CONVERTER 48V |
139 |
|
Datasheet | DHS (250W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 200V | 400V | 48V | - | - | - | 5.2A | - | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - |
|
DBS700B24DC DC CONVERTER 24V |
1,892 |
|
Datasheet | DBS (700W) | 21-DIP Module | Box | Active | Isolated Module | 1 | 200V | 400V | 24V | - | - | - | 39A | - | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - |
|
ZUS61205DC DC CONVERTER 5V |
975 |
|
Datasheet | ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | - | 500 V | ITE (Commercial) | OCP | -20°C ~ 71°C (With Derating) | 73% | - | - | Through Hole | - | - | - | - |
