DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

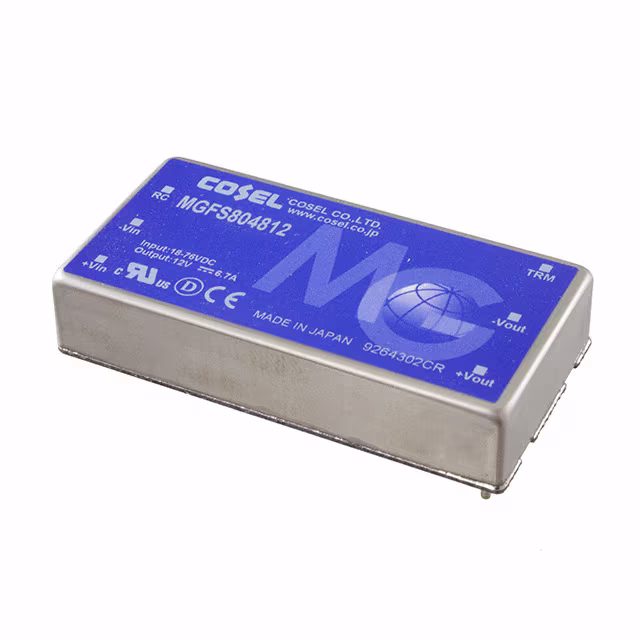

MGFS804812DC DC CONVERTER 12V 80W |
1,314 |
|
Datasheet | MGFS (80W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 6.7A | 80 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|
MGS1R50512DC DC CONVERTER 12V |
1,097 |
|
Datasheet | MGS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 130mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - |
|
|
MGS1R52405DC DC CONVERTER 5V |
674 |
|
Datasheet | MGS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 300mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - |
|

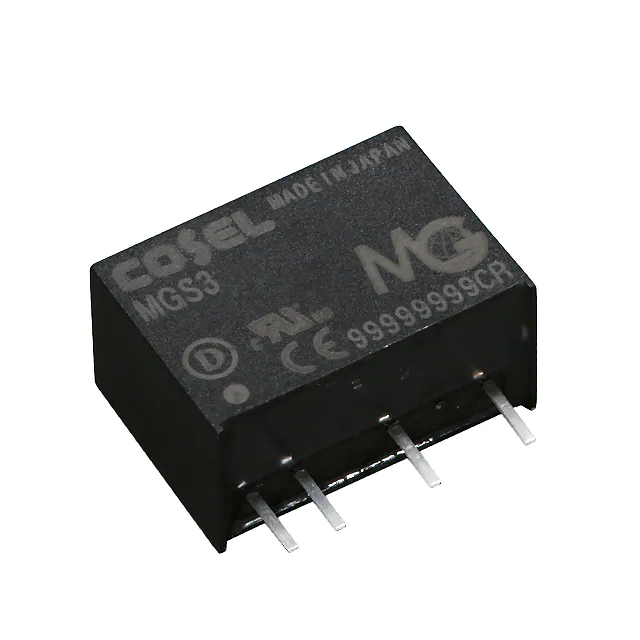

MGS30505DC DC CONVERTER 5V |
432 |
|
Datasheet | MGS (3W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|
|
MGS32405DC DC CONVERTER 5V |
135 |
|
Datasheet | MGS (3W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|

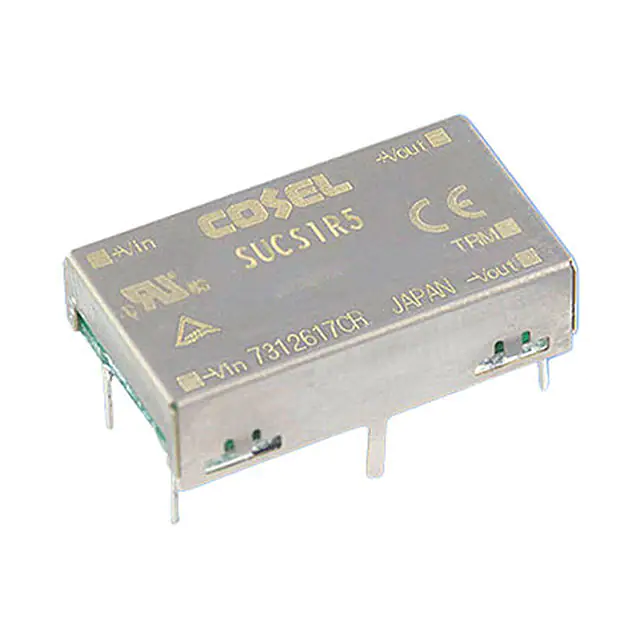

SUCS1R52412CDC DC CONVERTER 12V |
155 |
|
Datasheet | SUCS (1.5W) | 5-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 130mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - |
|
|
SUCS1R5243R3CDC DC CONVERTER 3.3V |
233 |
|
Datasheet | SUCS (1.5W) | 5-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - |
|

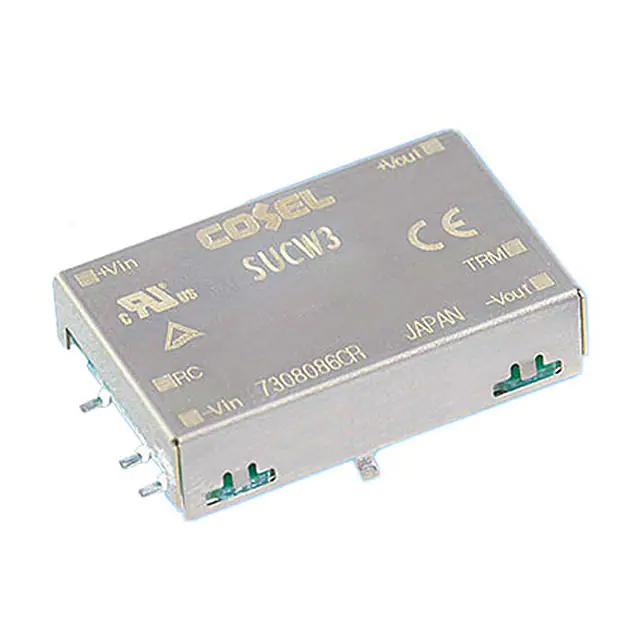

SUCW32412BDC DC CONVERTER +/-12V 24V 3.1W |
226 |
|
Datasheet | SUCW (3W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | - |
|
MGS62405DC DC CONVERTER 5V |
533 |
|
Datasheet | MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - |
|

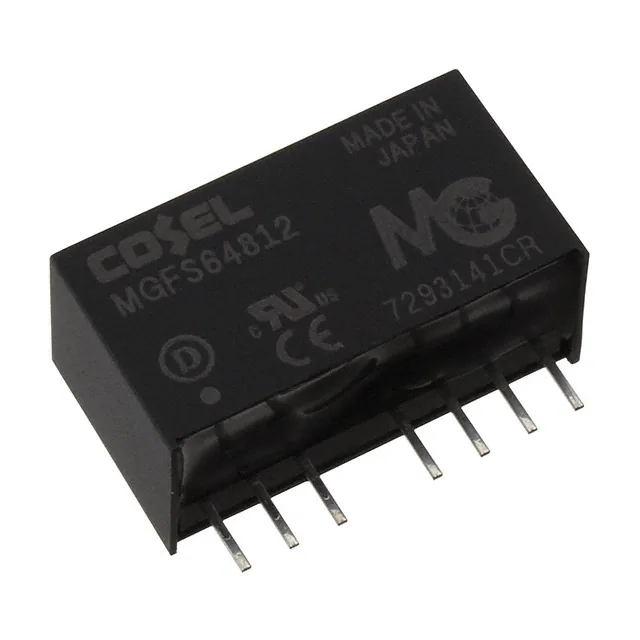

MGFS62415DC DC CONVERTER 15V 6W |
182 |
|
Datasheet | MGFS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - |
