DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGFW154812DC DC CONVERTER +/-12V |
3,974 |
|
Datasheet | MGFW (15W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 650mA, 650mA | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - |
|
|
MGFW152415DC DC CONVERTER +/-15V |
2,525 |
|
Datasheet | MGFW (15W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 15V or 30V | -15V | - | - | 500mA, 500mA | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - |
.jpg)
|
MGFW404812DC DC CONVERTER +/-12V 41W |
3,429 |
|
Datasheet | MGFW (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 1.7A, 1.7A | 41 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|

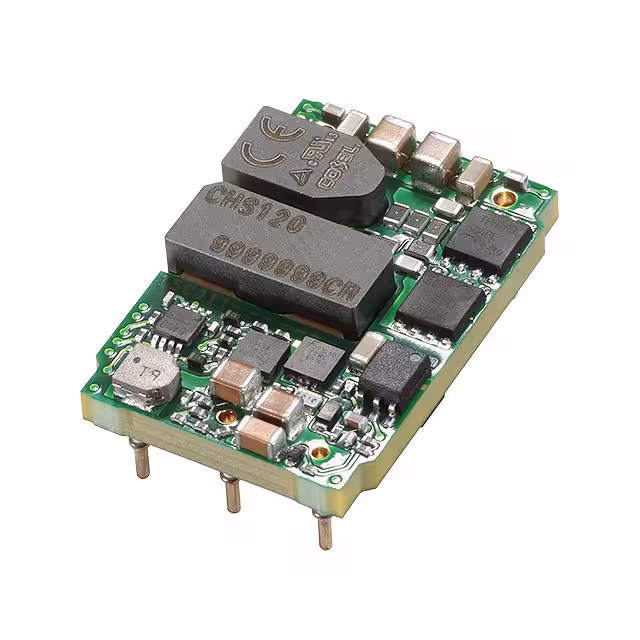

CHS1202405DC DC CONVERTER 5V 120W |
2,384 |
|
Datasheet | CHS (120W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 92.5% | - | - | Through Hole | Sixteenth Brick | - | CE, cURus, TUV | - |
|
CHS1202415DC DC CONVERTER 15V 120W |
3,213 |
|
Datasheet | CHS (120W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 8A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | Sixteenth Brick | - | CE, cURus, TUV | - |
|
|
MGFW400515DC DC CONVERTER +/-15V 30W |
4,856 |
|
Datasheet | MGFW (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 13V | 15V or 30V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|
CHS3002424DC DC CONVERTER 24V 252W |
4,767 |
|
Datasheet | CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 10.5A | 252 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, TUV | - |
|

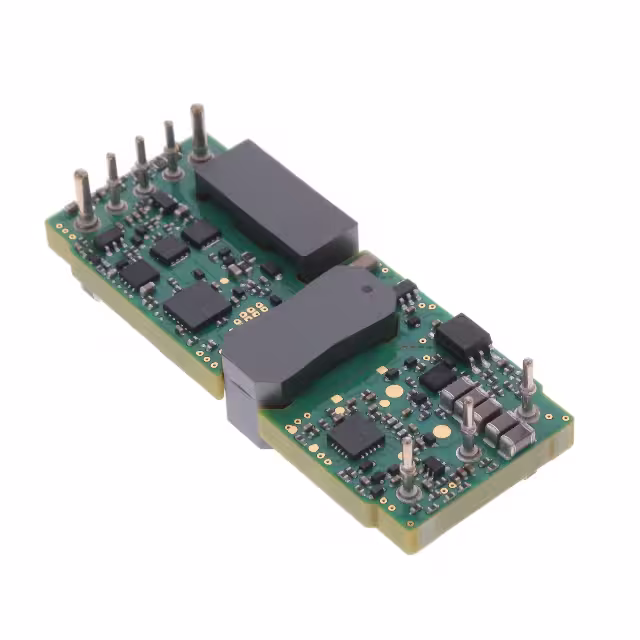

CHS3002448DC DC CONVERTER 48V 254W |
1,820 |
|
Datasheet | CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 5.3A | 254 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 93.5% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, TUV | - |
|
BRNS12DC DC CONVERTER 0.6-5.5V |
1,661 |
|
Datasheet | BRNS | 17-SMD Module | Strip | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - |
|
MGW1R50515DC DC CONVERTER +/-15V |
3,953 |
|
Datasheet | MGW (1.5W) | 5-SIP Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 50mA, 50mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - |
