DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC1SA01NSDC DC CONVERTER 5V 1W |
207 |
|
Datasheet | EC1SAN (1W) | 8-SMD Module, 6 Leads | Strip | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | - | - | CE | - |
|
EC1SA24NDC DC CONVERTER +/-12V 1W |
154 |
|
Datasheet | EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | CE | - |
|
|
EC1SA14NDC DC CONVERTER +/-12V 1W |
114 |
|
Datasheet | EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | CE | - |
|
EC2SA12NHDC DC CONVERTER 12V 2W |
212 |
|
Datasheet | EC2SANH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | CE | - |
|
EC2SA-05D15NDC DC CONVERTER +/-15V 2W |
811 |
|
Datasheet | EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | 60950-1 |
|
EC2SA23NHDC DC CONVERTER 15V 2W |
196 |
|
Datasheet | EC2SANH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 134mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | - | - | CE | - |
|
EC2SA12NDC DC CONVERTER 12V 2W |
158 |
|
Datasheet | EC2SAN (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | CE | - |
|

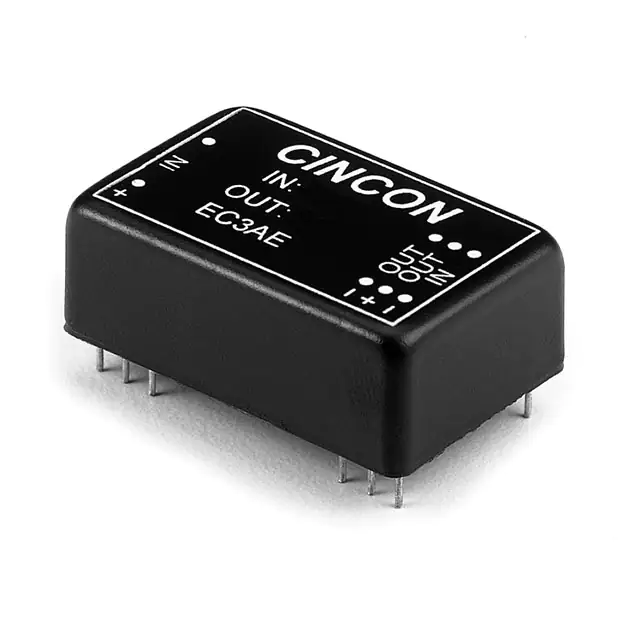

EC3AE25MDC DC CONVERTER +/-15V 3W |
120 |
|
Datasheet | EC3AE (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 100°C (With Derating) | 61% | - | - | Through Hole | - | - | CE | - |
|
|
EC2SA-48D05NDC DC CONVERTER +/-5V 2W |
911 |
|
Datasheet | EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | CE | 60950-1 |
|
EC3A25HDC DC CONVERTER +/-12V 3W |
1,889 |
|
Datasheet | EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | CE, cURus | 60950-1 |
