DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

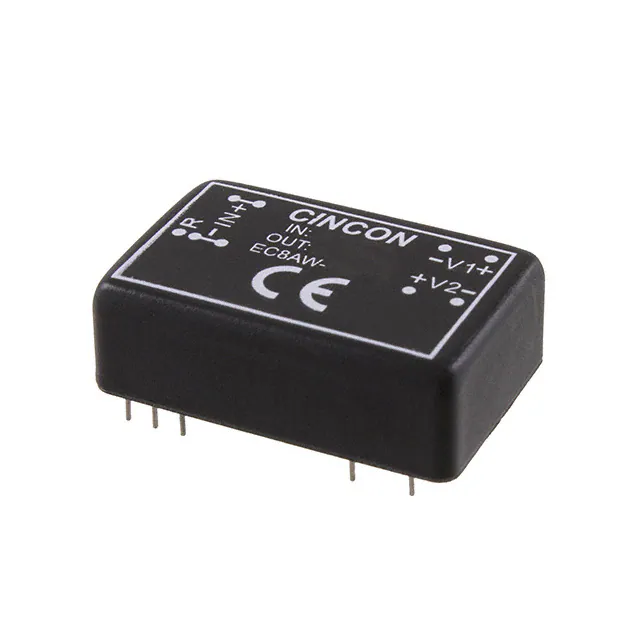

EC8AW-24S05DC DC CONVERTER 5V 15W |
127 |
|
Datasheet | EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | CE | 60950-1 |
|
EC4BW04DC DC CONVERTER +/-12V 10W |
118 |
|
Datasheet | EC4BW (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 415mA, 415mA | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | - |
|

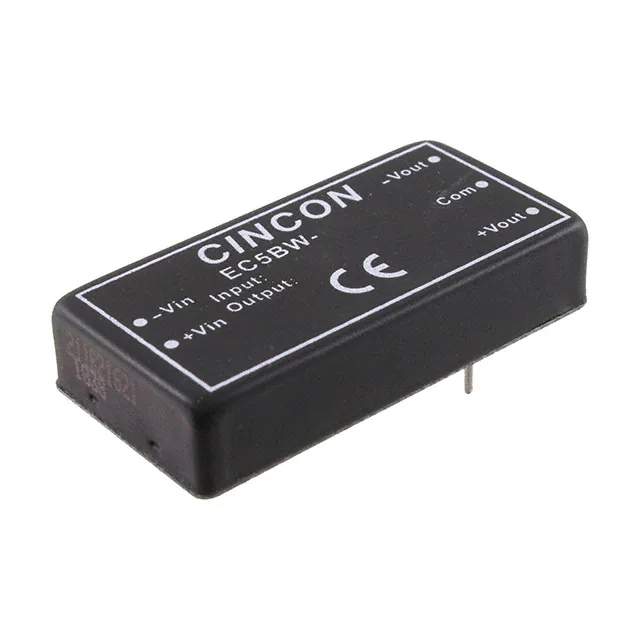

EC5BW-24S05DC DC CONVERTER 5V 15W |
116 |
|
Datasheet | EC5BW (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CE | 60950-1 |
|

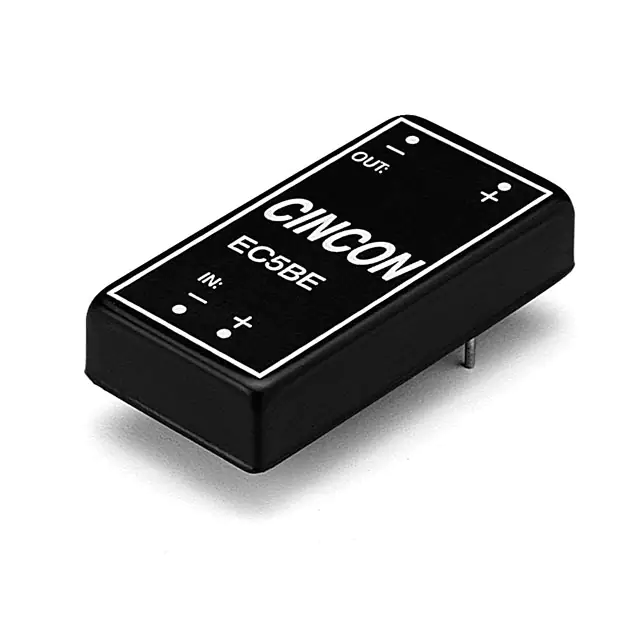

EC5BE11DC DC CONVERTER 5V 15W |
280 |
|
Datasheet | EC5BE (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, cURus | 60950-1 |
|
EC5SBW-24S12DC DC CONVERTER 12V 30W |
160 |
|
Datasheet | EC5SBW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
|
ECLB40W-24S12DC DC CONVERTER 12V 40W |
2,077 |
|
Datasheet | ECLB40W (40W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.333A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
|
CHB75-24S12NDC DC CONVERTER 12V 75W |
841 |
|
Datasheet | CHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | Half Brick | Enable, Active Low | CE, cURus | 60950-1 |
|
ECLB40W-110D12DC DC CONVERTER +/-12V 40W |
4,214 |
|
Datasheet | ECLB40W-110S (40W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 43V | 160V | 12V | -12V | - | - | 1.667A, 1.667A | 40 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | CE, cURus | 50155; 60950-1 |
|
CHB50-24S05DC DC CONVERTER 5V 50W |
138 |
|
Datasheet | CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
ECLB60W-24D12DC DC CONVERTER +/-12V 60W |
260 |
|
Datasheet | ECLB60W (60W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
