DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTK1524S12DC DC CONVERTER 12V 15W |
349 |
|
Datasheet | JTK (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 88% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
JTF1524S05DC DC CONVERTER 5.1V 15W |
187 |
|
Datasheet | JTF (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|

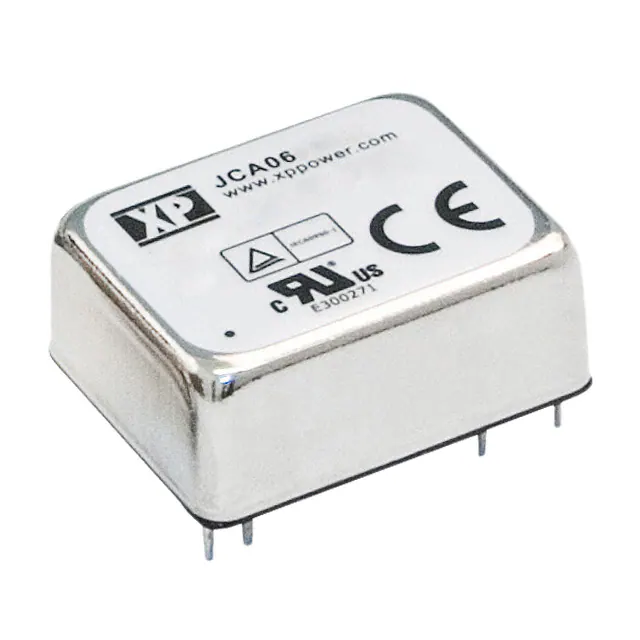

JCA0624S05DC DC CONVERTER 5V 6W |
122 |
|
Datasheet | JCA (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | - | - | - | 62368-1 |
|
JCM3012D15DC DC CONVERTER +/-15V 30W |
315 |
|
Datasheet | JCM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|

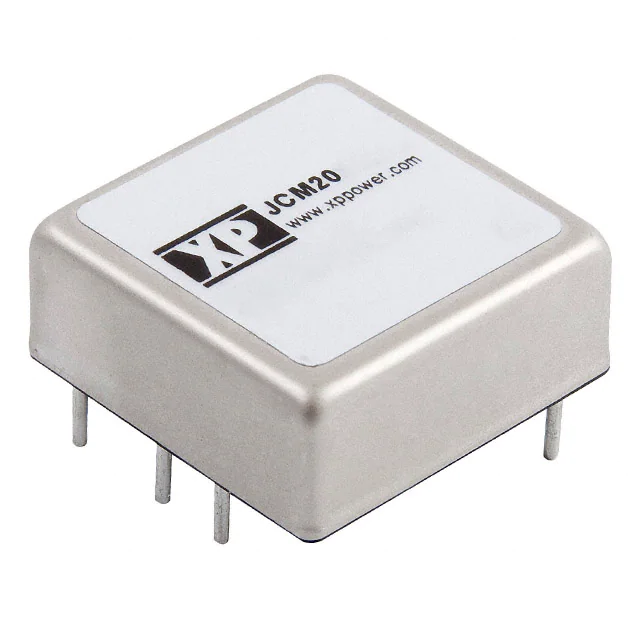

JCM2024S05DC DC CONVERTER 5V 20W |
869 |
|
Datasheet | JCM (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 4A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|

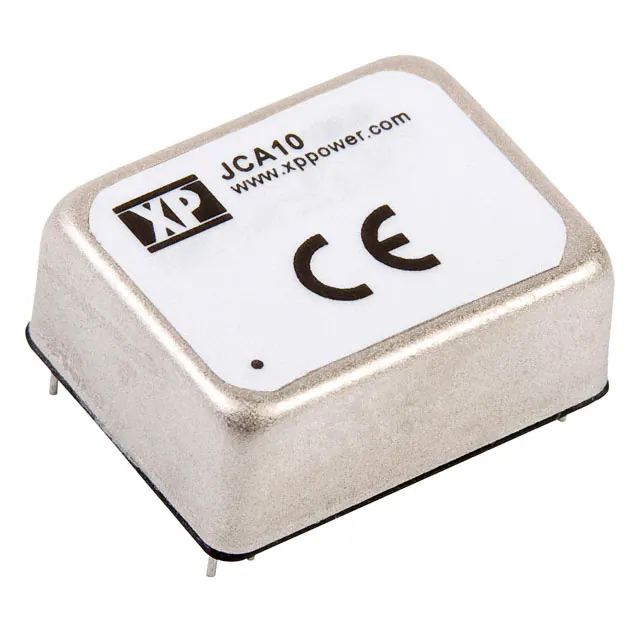

JCA1005D03DC DC CONVERTER +/-15V 10W |
134 |
|
Datasheet | JCA (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 330mA, 330mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 85% | - | - | Through Hole | - | - | - | 62368-1 |
|
JTK3048S12DC DC CONVERTER 12V 30W |
473 |
|
Datasheet | JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
|
JTK3024S15DC DC CONVERTER 15V 30W |
111 |
|
Datasheet | JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 91% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
JHM1024S12DC DC CONVERTER 12V 10W |
2,890 |
|
Datasheet | JHM (10W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 833mA | 10 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 89% | - | - | Through Hole | - | - | - | - |
|
|
JHM1024S05DC DC CONVERTER 5V 10W |
988 |
|
Datasheet | JHM (10W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 87% | - | - | Through Hole | - | - | - | - |
