DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IM2415SADC DC CONVERTER 15V 2W |
10,354 |
|
Datasheet | IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 135mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
IM2405SADC DC CONVERTER 5V 2W |
720 |
|
Datasheet | IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|

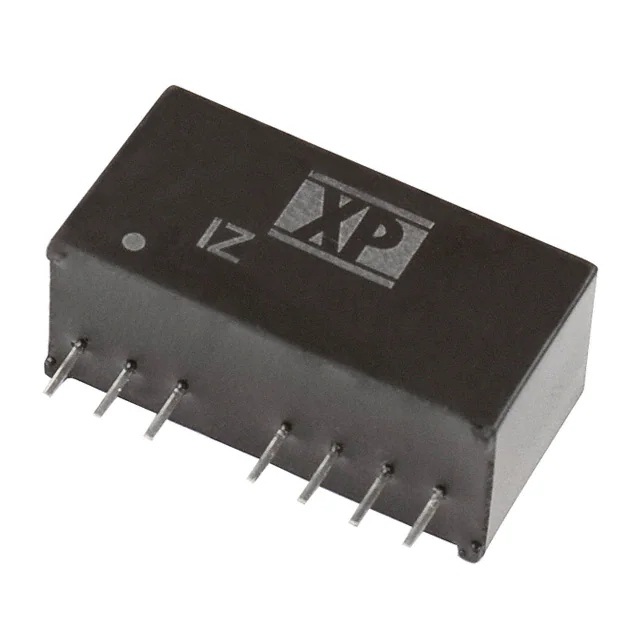

IZ2405SADC DC CONVERTER 5V 3W |
6,479 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
IZ2412SADC DC CONVERTER 12V 3W |
3,260 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
IZ2415SDC DC CONVERTER +/-15V 3W |
557 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|

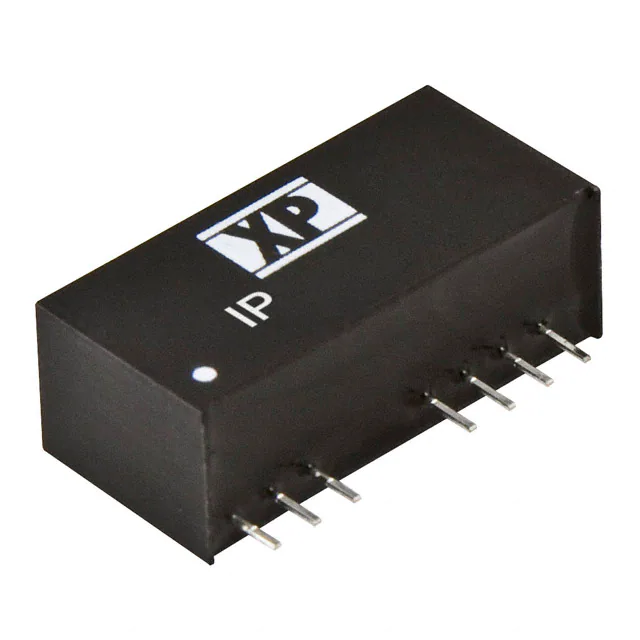

IP2405SADC DC CONVERTER 5V 3W |
1,742 |
|
Datasheet | IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
ITX2405SADC DC CONVERTER 5V 6W |
4,722 |
|
Datasheet | ITX (6W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 65°C | 83% | - | - | Through Hole | - | - | - | 62368-1 |
|
ISC0324S3V3DC DC CONVERTER 3.3V 3W |
1,584 |
|
Datasheet | ISC03 (3W) | 16-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 100°C | 75% | - | - | Surface Mount | - | Enable, Active High | - | 62368-1 |
|
ITQ4812SADC DC CONVERTER 12V 6W |
255 |
|
Datasheet | ITQ (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
ITQ2412SADC DC CONVERTER 12V 6W |
162 |
|
Datasheet | ITQ (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
