Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUP-14D35-24RELAY GEN PURPOSE 3PDT 10A 24V |
2,236 |
|
Datasheet | KUP | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUP-5A55-120RELAY GEN PURPOSE SPDT 10A 120V |
3,347 |
|
Datasheet | KUP | Bulk | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUP-14A45-120RELAY GEN PURPOSE 3PDT 10A 120V |
2,502 |
|
Datasheet | KUP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-14DG-24RELAY GEN PURPOSE 3PDT 10A 24V |
4,229 |
|
Datasheet | KRPA | Tray | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

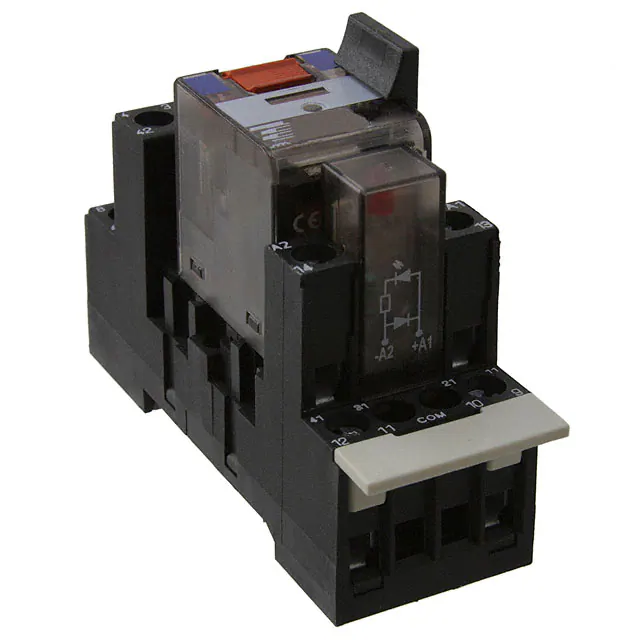

PT2S7LC4RELAY GEN PURPOSE DPDT 12A 24V |
3,317 |
|
Datasheet | PT, SCHRACK | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 30.8 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | Screw Terminal | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 18 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
KRPA-14AN-120RELAY GEN PURPOSE 3PDT 10A 120V |
1,392 |
|
Datasheet | KRPA | Tray | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUEP-3D15-24RELAY GEN PURPOSE SPST 10A 24V |
1,103 |
|
Datasheet | KUEP | Bulk | Active | Socketable | 24VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92HP7D1X-24RELAY GEN PURPOSE DPST 50A 24V |
3,322 |
|
Datasheet | T92 | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 50 A | 600VAC - Max | 30000VA | 68.6 mA | Non Latching | - | - | - | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
K10P-11D15-48RELAY GEN PURPOSE DPDT 15A 48V |
2,502 |
|
Datasheet | K10 | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 18.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | 4.8 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

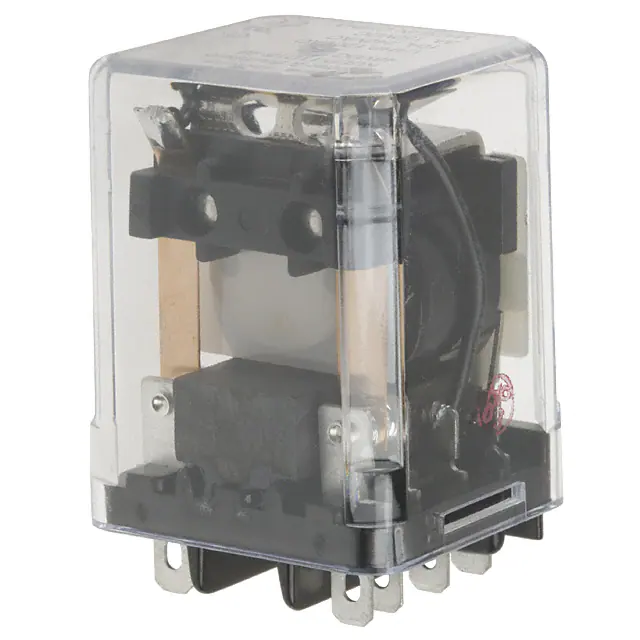

KUEP-11D15-48RELAY GEN PURPOSE DPDT 10A 48V |
1,116 |
|
Datasheet | KUEP | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 38 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
