Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

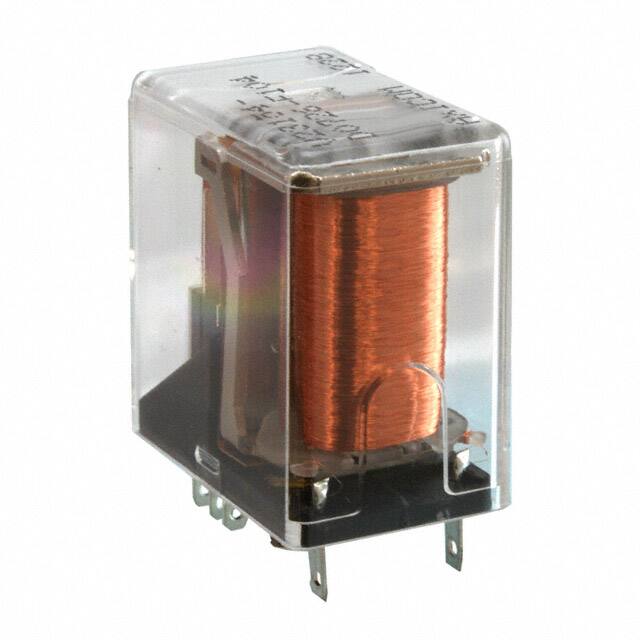

4-1393809-4POWER/SIGNAL RELAY, 2 FORM C, DP |
1,449 |
|
Datasheet | V23154, AXICOM | Tray | Active | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 500VA, 140W | 15 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
T9AP1D52-36-01RELAY GEN PURPOSE SPST 30A 36V |
3,256 |
|
Datasheet | T9A | Bulk | Active | Chassis Mount | 36VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 27.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 27 VDC | 3.6 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
K10P-11D55-24RELAY GEN PURPOSE DPDT 15A 24V |
1,757 |
|
Datasheet | K10 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 37 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUP-11A55-24RELAY GEN PURPOSE DPDT 10A 24V |
3,435 |
|
Datasheet | KUP | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUP-14D15-24RELAY GEN PURPOSE 3PDT 10A 24V |
3,361 |
|
Datasheet | KUP | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUP-14D15-12RELAY GEN PURPOSE 3PDT 10A 12V |
4,474 |
|
Datasheet | KUP | Bulk | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S7A22-120RELAY GEN PURPOSE DPST 30A 120V |
3,983 |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUP-14A15-120RELAY GEN PURPOSE 3PDT 10A 120V |
3,804 |
|
Datasheet | KUP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-11DG-24RELAY GEN PURPOSE DPDT 10A 24V |
3,048 |
|
Datasheet | KRPA | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUHP-11A51-240RELAY GEN PURPOSE DPDT 20A 240V |
100 |
|
Datasheet | KUHP | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 12 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
