Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1414995-0V23230D2001B200 |
1,589 |
|
Datasheet | V23230, AXICOM | Bulk | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 175 A | - | - | 279.1 mA | Non Latching | - | - | - | - | - | - | 25 ms | 35 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
|
KA-11DG-12RELAY GEN PURPOSE DPDT 10A 12V |
3,874 |
|
Datasheet | KA | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Nom | - | 100 mA | Non Latching | - | Solder Lug | - | Class B | 9 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10S-E2Y2-J2.5KRELAY GEN PURPOSE DPDT 3A 12V |
1,602 |
|
Datasheet | R10 | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 2.9 mA | Non Latching | - | PC Pin | - | - | 7.25 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
KA-11DG-6RELAY GEN PURPOSE DPDT 10A 6V |
140 |
|
Datasheet | KA | Tray | Obsolete | Chassis Mount | 6VDC | DPDT (2 Form C) | 10 A | 240VAC - Nom | - | 188 mA | Non Latching | - | Solder Lug | - | Class B | 4.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUL-4230RELAY GEN PURPOSE |
3,390 |
|
Datasheet | KUL | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R10S-E1Y2-J2.5KRELAY GEN PURPOSE DPDT 3A 12V |
3,146 |
|
Datasheet | R10 | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 2.9 mA | Non Latching | - | Plug In | - | - | 7.25 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|

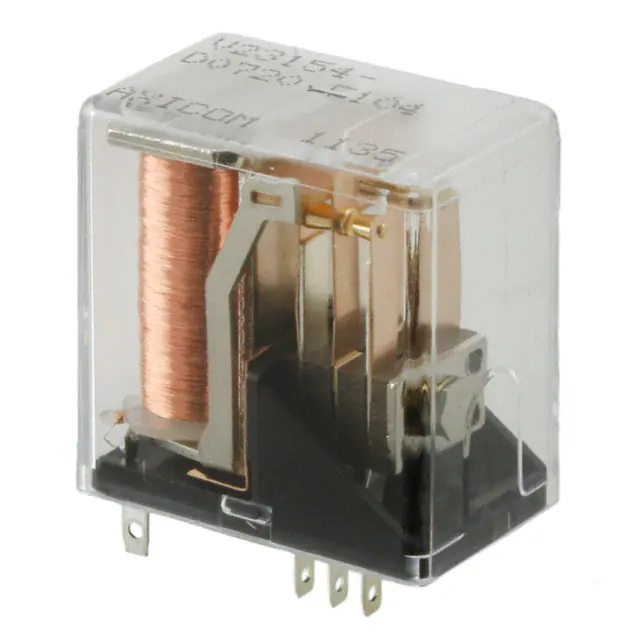

7-1393808-6RELAY GEN PURPOSE DPDT 5A 20V |
1,740 |
|
Datasheet | V23154, AXICOM | Bulk | Obsolete | Socketable | 20VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 11.9 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
PRD-5AG0-120RELAY GEN PURPOSE SPDT 30A 120V |
4,559 |
|
Datasheet | PRD | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
K10P-7AT5-120RELAY GEN PURPOSE DPST 15A 120V |
4,358 |
|
Datasheet | K10 | Bulk | Obsolete | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 15 A | 120VAC - Nom | - | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | 12 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1393145-4RELAY GEN PURPOSE DPST 15A 120V |
1,905 |
|
Datasheet | K10 | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 15 A | 120VAC - Max | - | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | 12 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
