Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

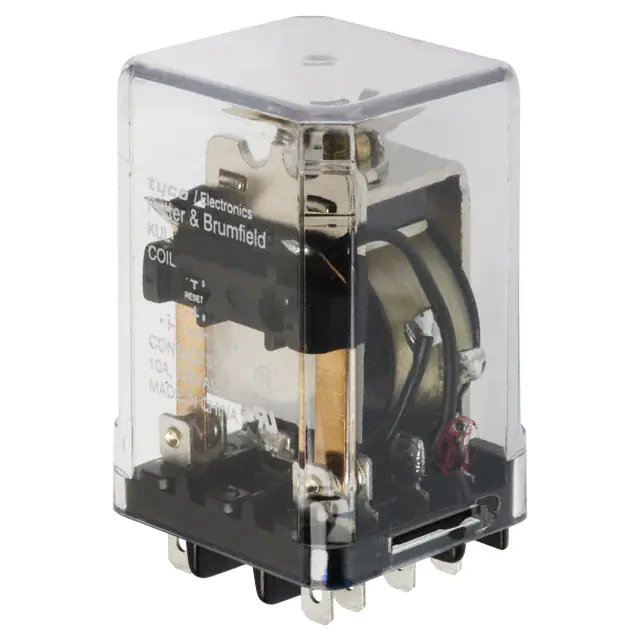

KUL-11D15D-12RELAY GEN PURPOSE DPDT 10A 12V |
138 |
|
Datasheet | KUL | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 133.3 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 25 ms | 25 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KA-14AY-120RELAY GEN PURPOSE 3PDT 5A 120V |
2,896 |
|
Datasheet | KA | Tray | Obsolete | Chassis Mount | 120VAC | 3PDT (3 Form C) | 5 A | 240VAC - Nom | - | 17.5 mA | Non Latching | - | Solder Lug | - | Class B | 102 VAC | - | - | - | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
KHU-17D11-48RELAY GEN PURPOSE 4PDT 3A 48V |
4,906 |
|
Datasheet | KH | Bulk | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 18.8 mA | Non Latching | - | Plug In | - | Class B | 36 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
K10P-11D15-120RELAY GEN PURPOSE DPDT 15A 120V |
3,967 |
|
Datasheet | K10 | Tray | Obsolete | Socketable | 120VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | - | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 90 VDC | 12 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PRD-11DH1-12RELAY GEN PURPOSE DPDT 20A 12V |
4,120 |
|
Datasheet | PRD | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | General Purpose | - | - |
|
|
KHAU-17D12B-24RELAY GEN PURPOSE 4PDT 5A 24V |
1,129 |
|
Datasheet | KHA | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 37.5 mA | Non Latching | Test Button | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KA-14DG-110RELAY GEN PURPOSE 3PDT 10A 110V |
1,551 |
|
Datasheet | KA | Bulk | Obsolete | Chassis Mount | 110VDC | 3PDT (3 Form C) | 10 A | 240VAC - Nom | - | 11.5 mA | Non Latching | - | Solder Lug | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10-E1Y2-JJ5.0KRELAY GEN PURPOSE DPDT 3A 24V |
3,371 |
|
Datasheet | R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 20 mA | Non Latching | - | Plug In | - | - | 14.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
KRP-11AG-120RELAY GEN PURPOSE DPDT 10A 120V |
3,201 |
|
Datasheet | KRP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10S-E2Y1-J2.5KRELAY GEN PURPOSE SPDT 3A 12V |
4,893 |
|
Datasheet | R10 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 120VAC - Nom | - | 2 mA | Non Latching | - | PC Pin | - | - | 5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
