Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUMC32EDHARMONY, UNIVERSAL PLUG-IN RELAY |
3,475 |
|
Datasheet | Harmony | Box | Active | Socketable | 48VDC | 3PDT (3 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 26.7 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
8501RSD43P14V53PLUG IN RELAY, TYPE R, MINIATURE |
2,448 |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VDC | 3PDT (3 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
8501RSD44P14V53PLUG IN RELAY, TYPE R, MINIATURE |
1,416 |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
RXM2AB1FDHARMONY, MINIATURE PLUG-IN RELAY |
1,057 |
|
Datasheet | Harmony | Box | Active | Socketable | 110VDC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 8.2 mA | Non Latching | Test Button | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RXG13JDHARMONY, INTERFACE PLUG-IN RELAY |
3,606 |
|
Datasheet | Harmony | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | - | Non Latching | Lighted Indicator | Plug In | - | - | - | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
RXM3AB1FDHARMONY, MINIATURE PLUG-IN RELAY |
3,862 |
|
Datasheet | Harmony | Box | Active | Socketable | 110VDC | 3PDT (3 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 8.2 mA | Non Latching | Test Button | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

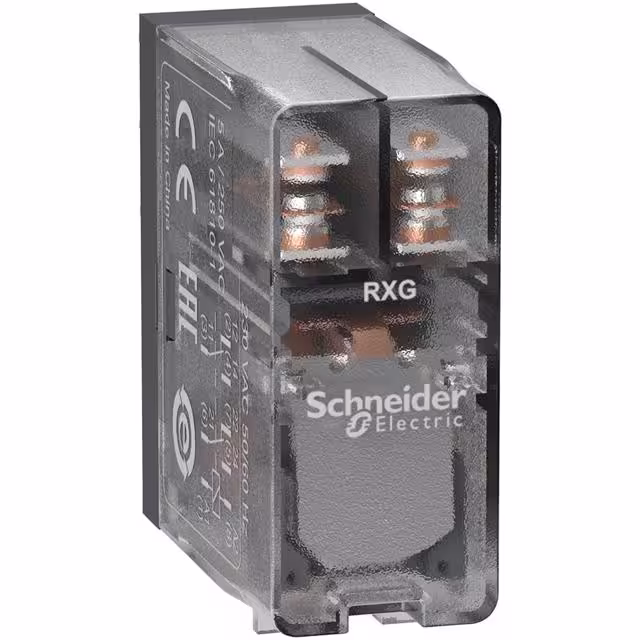

RXG25P7HARMONY, INTERFACE PLUG-IN RELAY |
2,359 |
|
Datasheet | Harmony | Box | Active | Socketable | 230VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | - | Plug In | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
RXM4AB1FDHARMONY, MINIATURE PLUG-IN RELAY |
1,761 |
|
Datasheet | Harmony | Box | Active | Socketable | 110VDC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 1500VA, 168W | 8.2 mA | Non Latching | - | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RXM2AB1EDHARMONY, MINIATURE PLUG-IN RELAY |
3,596 |
|
Datasheet | Harmony | Box | Active | Socketable | 48VDC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 18.8 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RXM2AB1E7HARMONY, MINIATURE PLUG-IN RELAY |
1,395 |
|
Datasheet | Harmony | Box | Active | Socketable | 48VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 67.6 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
