Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8501RS24V20PLUG IN RELAY, TYPE R, MINIATURE |
134 |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 300VAC, 30VDC - Max | 900VA, 90W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
RSB1A120BDHARMONY, INTERFACE PLUG-IN RELAY |
2,523 |
|
Datasheet | Harmony | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 300VDC - Max | 3600VA | 16.7 mA | Non Latching | - | Plug In | - | - | - | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RSB2A080BDHARMONY, INTERFACE PLUG-IN RELAY |
1,051 |
|
Datasheet | Harmony | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 28VDC - Max | 2000VA, 224W | 16.7 mA | Non Latching | - | Plug In | - | - | - | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RSB2A080F7HARMONY, INTERFACE PLUG-IN RELAY |
4,171 |
|
Datasheet | Harmony | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 8 A | 250VAC, 28VDC - Max | 2000VA, 224W | 14.4 mA | Non Latching | - | Plug In | - | - | - | 18 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

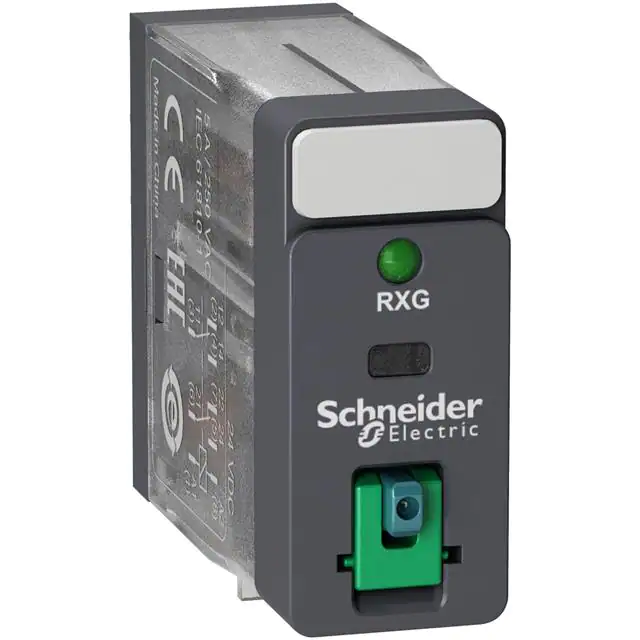

RXG22BDHARMONY, INTERFACE PLUG-IN RELAY |
2,695 |
|
Datasheet | Harmony | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
RXM4AB1BDHARMONY, MINIATURE PLUG-IN RELAY |
3,279 |
|
Datasheet | Harmony | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 28VDC - Max | 1250VA, 140W | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RXM2AB2BDHARMONY, MINIATURE PLUG-IN RELAY |
1,658 |
|
Datasheet | Harmony | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 36.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RXM4AB2JDHARMONY, MINIATURE PLUG-IN RELAY |
1,393 |
|
Datasheet | Harmony | Box | Active | Socketable | 12VDC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 1500VA, 168W | 75 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RPM22BDHARMONY, POWER PLUG-IN RELAY, 15 |
4,200 |
|
Datasheet | Harmony | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 37.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RXM4AB2BDHARMONY, MINIATURE PLUG-IN RELAY |
3,115 |
|
Datasheet | Harmony | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 28VDC - Max | 1250VA, 140W | 36.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
