Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B84143A0008R105LINE FILTER 520V/300VAC 8A CHASS |
4,731 |
|
Datasheet | B84143A | Tray | Active | Three Phase (Delta) | Single Stage | - | 520V, 300V | - | - | 8 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
B84143A0016R105LINE FILTER 520V/300VAC 16A CHAS |
4,994 |
|
Datasheet | B84143A | Bulk | Active | Three Phase (Delta) | Single Stage | - | 520V, 300V | - | - | 16 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
B84142B0016R000LINE FILTER 250VAC/VDC 16A CHASS |
2,507 |
|
Datasheet | B84142B | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 16 A | 50/60Hz | General Purpose | ENEC | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
B84143A0036R000LINE FILTER 480V/275VAC 36A CHAS |
3,240 |
|
Datasheet | B84143A | Bulk | Active | Three Phase (Delta) | Single Stage | - | 480V, 275V | 275 V | 480 V | 36 A | 50 ~ 60Hz | Inverters, Power Drive Systems | cUL, ENEC, UL | - | Chassis Mount | Terminal Block, Threaded Post (M6) | - |
|

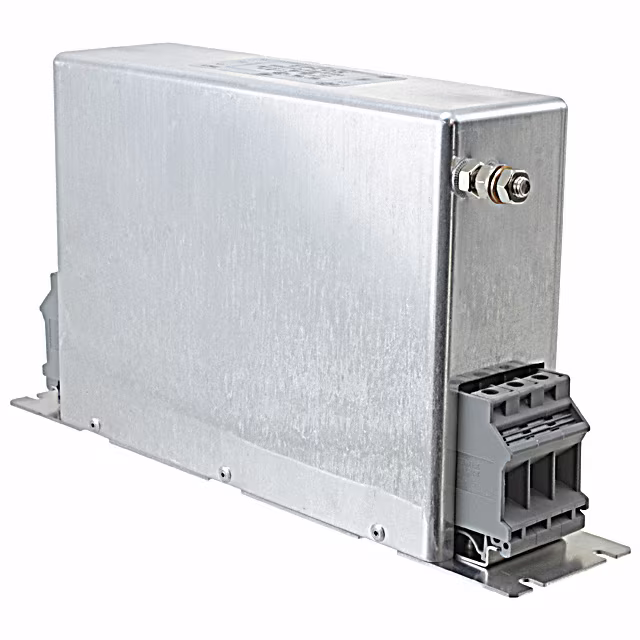

B84143A0066R105LINE FILTER 520V/300VAC 66A CHAS |
4,894 |
|
Datasheet | B84143A | Bulk | Active | Three Phase (Delta) | Single Stage | - | 520V, 300V | - | - | 66 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

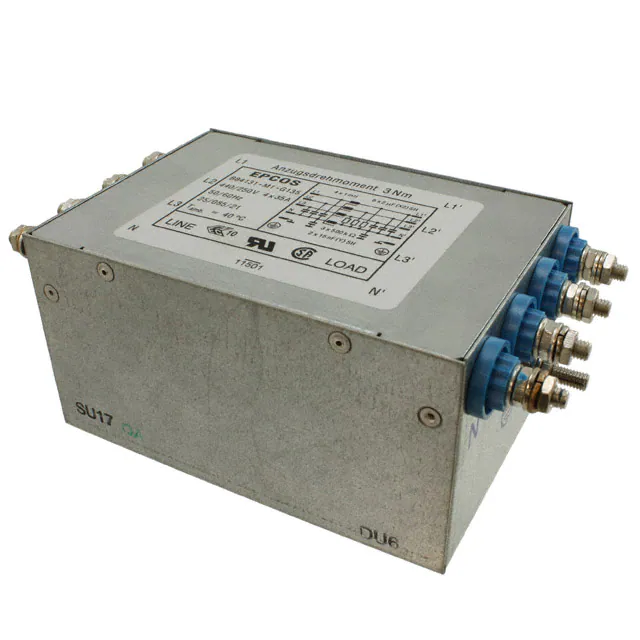

B84131M0001G135LINE FILTER 440V/250VAC 35A CHAS |
2,390 |
|
Datasheet | B84131 | Bulk | Active | Three Phase (Wye) | Single Stage | - | 440V, 250V | - | - | 35 A | 50/60Hz | General Purpose | CSA, cUR, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Threaded Post (M6) | - |
|
B84144A0050R120LINE FILTER 50A CHASSIS MOUNT |
1,394 |
|
Datasheet | B84144 | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 520 V | 300 V | 50 A | 50 ~ 60Hz | Converter | cUL, ENEC, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

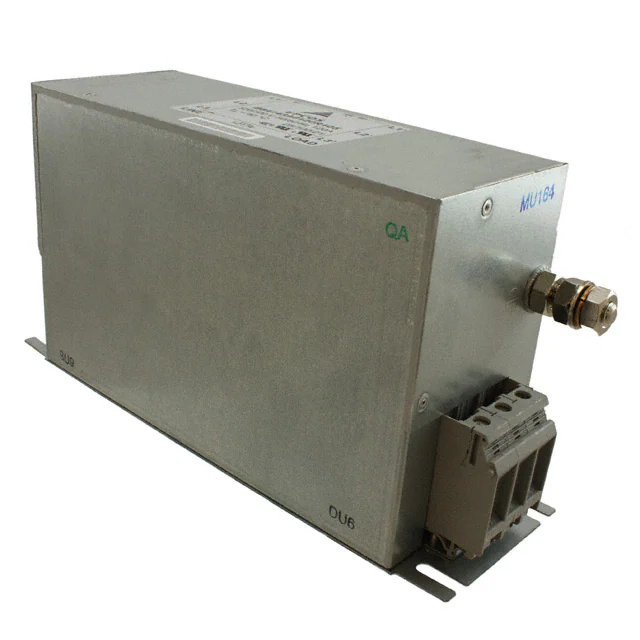

B84143A0120R105LINE FILTER 300/520VAC 120A CHAS |
2,925 |
|
Datasheet | B84143A | Tray | Active | Three Phase (Delta) | Single Stage | - | 300V, 520V | - | - | 120 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
B84144A0120R120LINE FILTER 120A CHASSIS MOUNT |
2,968 |
|
Datasheet | B84144 | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 520 V | 300 V | 120 A | 50 ~ 60Hz | Converter | cUL, ENEC, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
B84110A0000A010LINE FILTER 250VAC/VDC 1A TH |
1,595 |
|
Datasheet | B84110A | Tray | Active | Single Phase | Single Stage | 250V | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 10mH |
