Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B84112B0000B030LINE FILTER 250VAC/VDC 3A CHASS |
110 |
|
Datasheet | B84112B | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 3 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|

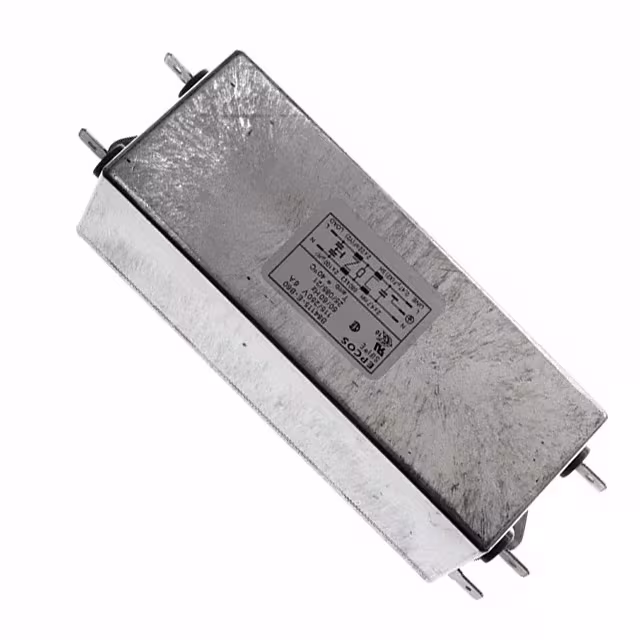

B84115E0000B060LINE FILTER 250VAC/VDC 6A CHASS |
1,415 |
|
Datasheet | B84115E | Tray | Active | Single Phase | Two Stage | 250V | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | L1 - 100µH, L2 - 4.7mH |
|
B84143A0020A166LINE FILTER 20A CHASSIS MOUNT |
3,892 |
|
Datasheet | B84143A | Bulk | Active | Three Phase (Delta) | Single Stage | - | - | 520 V | 300 V | 20 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect, Threaded Post (M5) | - |
|
B84110A0000A060LINE FILTER 250VAC/VDC 6A TH |
165 |
|
Datasheet | B84110A | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50 ~ 60Hz | General Purpose | CSA, ENEC, UL | - | Through Hole | PC Pins | - |
|
B84742A0020R725LINE FILTER 250VAC/VDC 20A DIN |
3,579 |
|
Datasheet | B84742AxR725 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 20 A | 50/60Hz | Converter | UL | - | DIN Rail | Terminal Block | - |
|
B84112G0000B116LINE FILTER 250VAC/VDC 16A CHASS |
3,104 |
|
Datasheet | B84112G | Tray | Active | Single Phase | Single Stage | 250V | 250V | - | - | 16 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.8mH |
|
B84111A0000A060LINE FILTER 250VAC/VDC 6A CHASS |
3,436 |
|
Datasheet | B84111A | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|
B84113H0000B060LINE FILTER 250VAC/VDC 6A CHASS |
100 |
|
Datasheet | B84113H | Tray | Active | Single Phase | Two Stage | 250V | 250V | - | - | 6 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 3.6mH |
|
B84111A0000B120LINE FILTER 250VAC/VDC 20A CHASS |
1,002 |
|
Datasheet | B84111A | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 20 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|

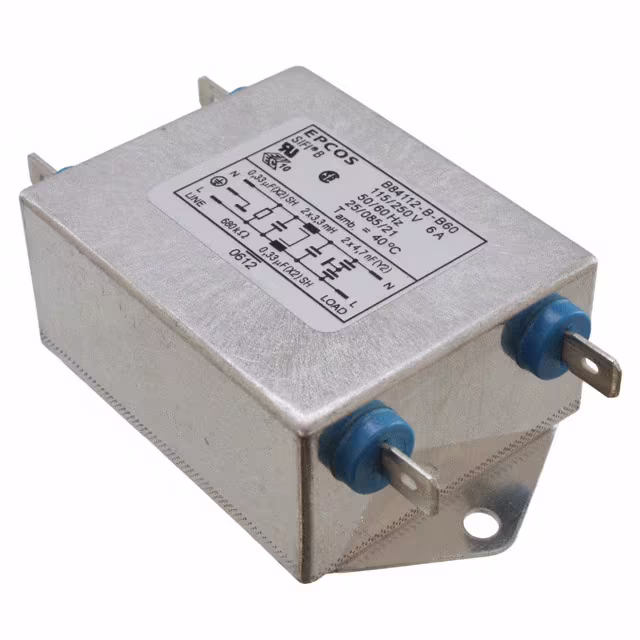

B84112B0000B060LINE FILTER 250VAC/VDC 6A CHASS |
4,211 |
|
Datasheet | B84112B | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | 3.3mH |
