Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25TYT8LINE FILTER 480VAC CHASSIS MOUNT |
3,713 |
|
Datasheet | TYT | Box | Active | Three Phase (Wye) | Single Stage | - | 480V | - | - | - | 50/60Hz | General Purpose | - | - | Chassis Mount | Terminal Block | 1.3mH |
|
30TDPS6LINE FILTER 30A CHASSIS MOUNT |
3,175 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 30 A | - | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 1.2mH |
|
|
20TDPS6LINE FILTER 20A CHASSIS MOUNT |
4,087 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 20 A | - | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 2.5mH |
|

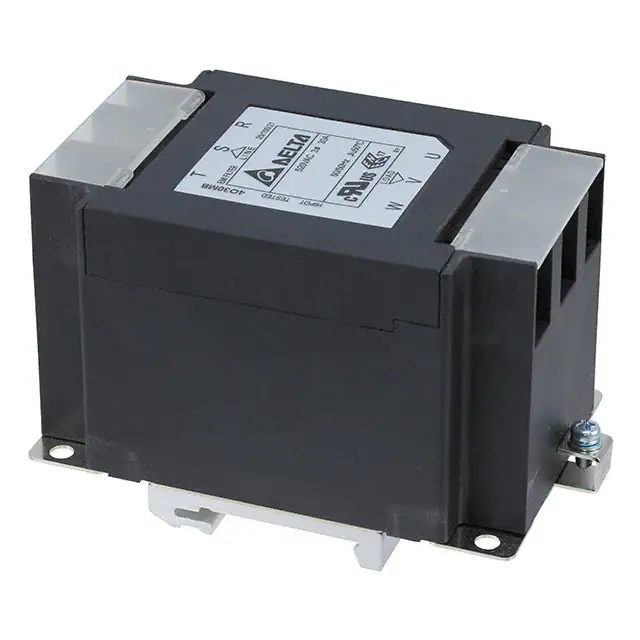

04TDPS6(D)LINE FILTER 4A DIN RAIL |
1,126 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 4 A | - | General Purpose | cURus, ENEC | - | DIN Rail | Terminal Block | 40mH |
|
10TDS6DLINE FILTER 440VAC 10A CHASS MNT |
2,700 |
|
Datasheet | TD | Box | Active | Three Phase (Delta) | Two Stage | - | 440V | - | - | 10 A | 50/60Hz | General Purpose | - | - | Chassis Mount | Threaded Post (M6) | L1 - 122µH, L2 - 2.8mH |
|
|
06TDPS6(D)LINE FILTER 6A DIN RAIL |
2,578 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 6 A | - | General Purpose | cURus, ENEC | - | DIN Rail | Terminal Block | 23mH |
|
|
10TDPS6(D)LINE FILTER 10A DIN RAIL |
1,134 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 10 A | - | General Purpose | cURus, ENEC | - | DIN Rail | Terminal Block | 10mH |
|
|
16TDPS6(D)LINE FILTER 16A DIN RAIL |
4,295 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 16 A | - | General Purpose | cURus, ENEC | - | DIN Rail | Terminal Block | 4.3mH |
|
|
20TDPS6(D)LINE FILTER 20A DIN RAIL |
3,064 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 20 A | - | General Purpose | cURus, ENEC | - | DIN Rail | Terminal Block | 2.5mH |
|
|
20TDPS6ELINE FILTER 20A CHASSIS MOUNT |
1,434 |
|
Datasheet | TDP | Box | Active | Three Phase (Delta) | Single Stage | - | - | - | - | 20 A | - | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 14.8mH |
