Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75BCF6RLINE FILTER 75A CHASSIS MOUNT |
1,854 |
|
Datasheet | BCFXR | Box | Active | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 75 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M5) | 1.06mH |
|
100KEHD10AFPDLINE FLTR 440VAC 100A CHASS MNT |
3,552 |
|
Datasheet | KEH | Box | Active | Three Phase (Delta) | Two Stage | - | 440V | - | - | 100 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
100KEVD10BBSWLINE FLTR 520VAC 100A CHASS MNT |
3,062 |
|
Datasheet | KEV-BS | Box | Active | Three Phase (Wye) | Two Stage | - | 520V | - | - | 100 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|

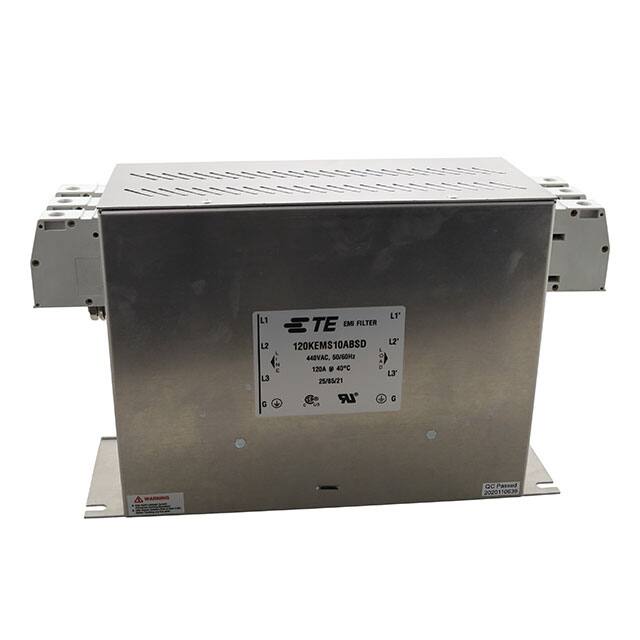

120KEMS10ABSDLINE FLTR 440VAC 120A CHASS MNT |
1,317 |
|
Datasheet | KEM-BS | Box | Active | Three Phase (Delta) | Single Stage | - | 440V | - | - | 120 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
150KEPS10ABSWLINE FLTR 440VAC 150A CHASS MNT |
4,402 |
|
Datasheet | KEP-BS | Box | Active | Three Phase (Wye) | Single Stage | - | 440V | - | - | 150 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
120KEHD10BBSDLINE FLTR 520VAC 120A CHASS MNT |
3,080 |
|
Datasheet | KEH-BS | Box | Active | Three Phase (Delta) | Two Stage | - | 520V | - | - | 120 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
125 AHV S FPLINE FILTER 125A CHASSIS MOUNT |
3,231 |
|
Datasheet | AHV | Box | Active | Three Phase (Delta) | Single Stage | - | - | 750 V | 760 V | 125 A | 50Hz ~ 60Hz | General Purpose | cURus | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
150 AHV S BSLINE FILTER 150A CHASSIS MOUNT |
1,915 |
|
Datasheet | AHV | Box | Active | Three Phase (Delta) | Single Stage | - | - | 750 V | 760 V | 150 A | 50Hz ~ 60Hz | General Purpose | cURus | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
400 AHV S FPLINE FILTER 400A CHASSIS MOUNT |
3,661 |
|
Datasheet | AHV | Box | Active | Three Phase (Delta) | Single Stage | - | - | 750 V | 760 V | 400 A | 50Hz ~ 60Hz | General Purpose | cURus | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
500 AHV S FPLINE FILTER 500A CHASSIS MOUNT |
4,661 |
|
Datasheet | AHV | Box | Active | Three Phase (Delta) | Single Stage | - | - | 750 V | 760 V | 500 A | 50Hz ~ 60Hz | General Purpose | cURus | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
