Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Measuring Type | Measuring Range | Display Type | Number of Characters Per Row | Display Characters - Height | Output Type | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DK762VOLTMETER 2VDC LCD PANEL MOUNT |
4,979 |
|
Datasheet | DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK771VOLTMETER 200MVDC LCD PANEL MT |
4,419 |
|
Datasheet | DK740-770 EPIC | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK753VOLTMETER 20VDC LCD PANEL MOUNT |
2,158 |
|
Datasheet | DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK781VOLTMETER 200MVDC LCD PANEL MT |
4,536 |
|
Datasheet | DK740-770 EPIC | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters, Green Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK783VOLTMETER 20VDC LCD PANEL MOUNT |
3,204 |
|
Datasheet | DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Black Characters, Green Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK615VOLTMETER 2VDC LED PANEL MOUNT |
1,031 |
|
Datasheet | DK610 | Box | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 5VDC | Rectangular - 71.77mm x 32.02mm | Panel Mount | PC Pin | - | - |
|

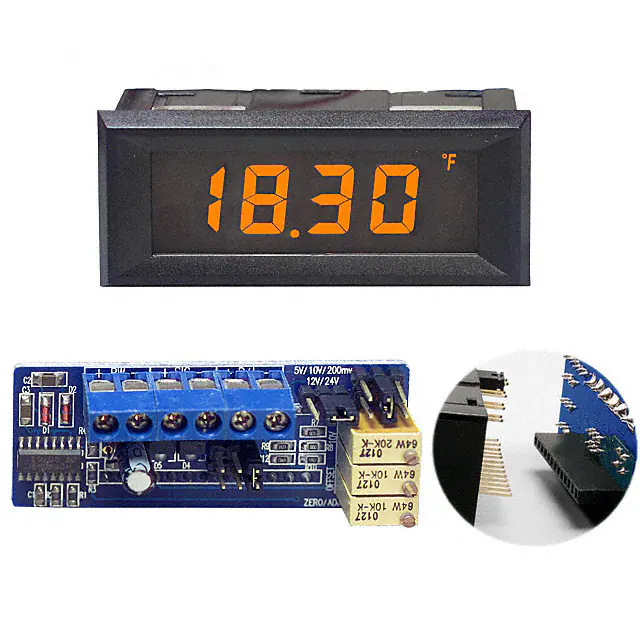

DK196PROC METER/VOLTMETER LCD PNL MT |
2,792 |
|
Datasheet | DK190V EPIC | Bulk | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Amber Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK200PPROC METER/VOLTMETER LCD PNL MT |
1,868 |
|
Datasheet | DK190V EPIC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Black Characters, Green Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|

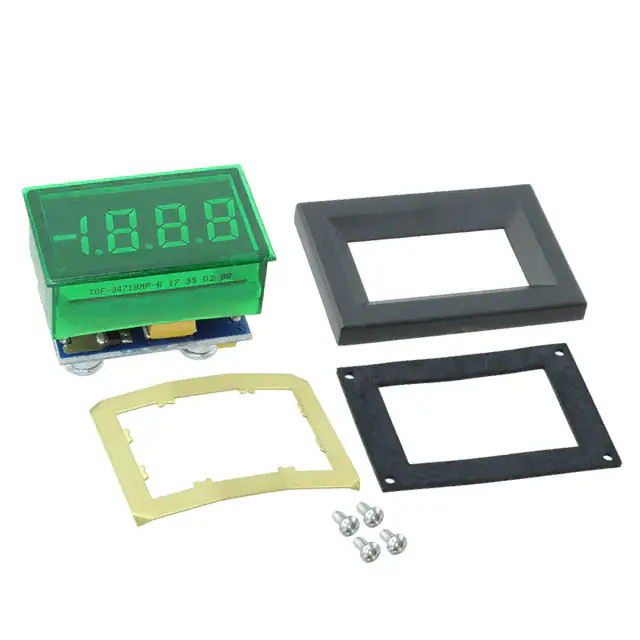

DLA20-LM-G-1VOLTMETER PANEL MOUNT |
3,964 |
|
Datasheet | DLA20-LM | Bulk | Active | Voltmeter | Voltage | - | - | 3 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|

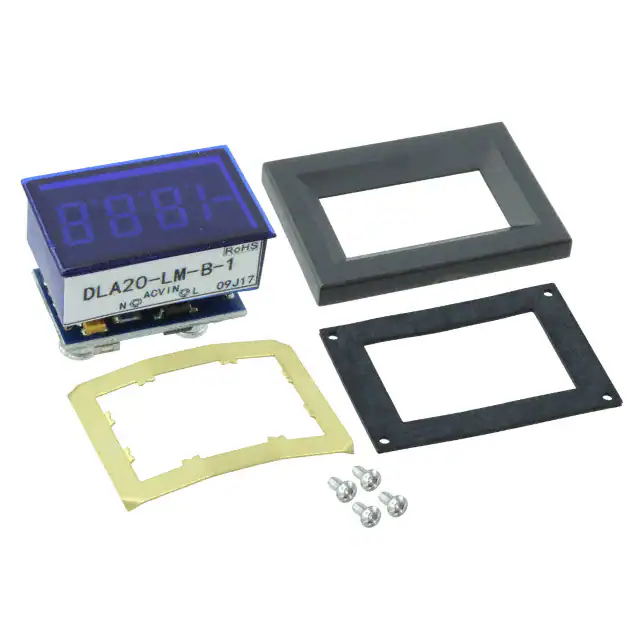

DLA20-LM-B-1VOLTMETER PANEL MOUNT |
1,217 |
|
Datasheet | DLA20-LM | Bulk | Active | Voltmeter | Voltage | - | - | 3 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
