Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Measuring Type | Measuring Range | Display Type | Number of Characters Per Row | Display Characters - Height | Output Type | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

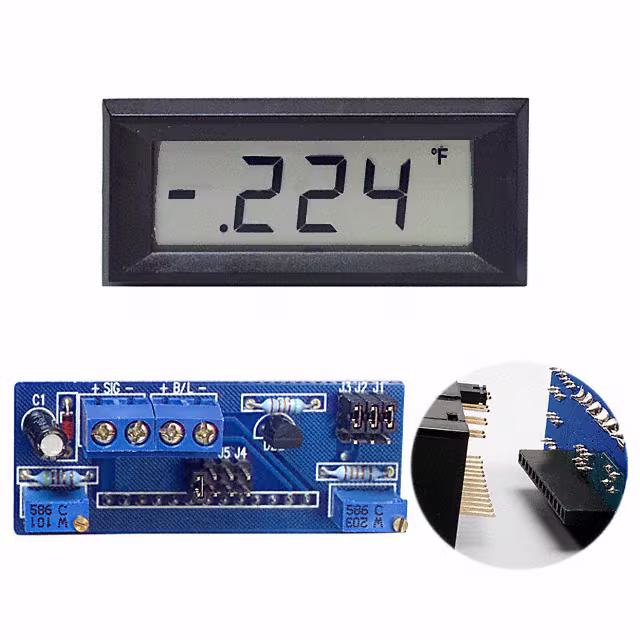

DK191PROCESS METER 4-20MA LCD PNL MT |
4,155 |
|
Datasheet | DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.449" (11.40mm) | - | Loop Power | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK191PPROCESS METER 4-20MA LCD PNL MT |
4,350 |
|
Datasheet | DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.449" (11.40mm) | - | Loop Power | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK190FPROCESS METER 4-20MA LCD PNL MT |
4,286 |
|
Datasheet | DK190 | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.472" (12.00mm) | - | Loop Power | - | Panel Mount - Surface | Screw Terminal | - | - |
|

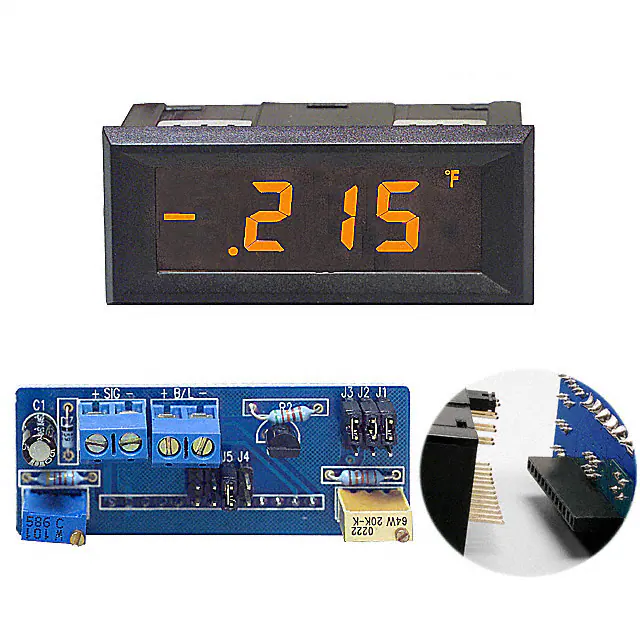

DK192PROCESS METER 4-20MA LCD PNL MT |
4,602 |
|
Datasheet | DK191 EPIC Loop | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK194PPROCESS METER 4-20MA LCD PNL MT |
3,215 |
|
Datasheet | DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK195PPROCESS METER 4-20MA LCD PNL MT |
1,269 |
|
Datasheet | DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters, Green Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK192PPROCESS METER 4-20MA LCD PNL MT |
3,701 |
|
Datasheet | DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|

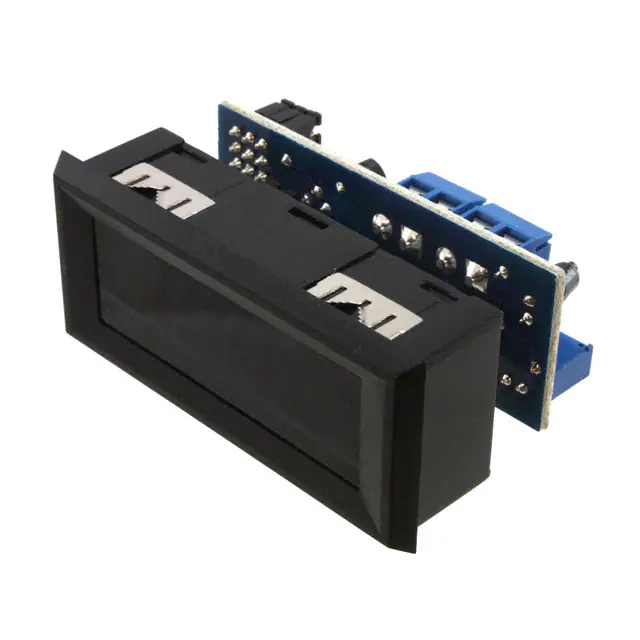

DK193PPROCESS METER 4-20MA LCD PNL MT |
1,697 |
|
Datasheet | DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK751VOLTMETER 200MVDC LCD PANEL MT |
4,383 |
|
Datasheet | DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK761VOLTMETER 200MVDC LCD PANEL MT |
3,826 |
|
Datasheet | DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
