Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVL16FLS41LED PANEL INDICATOR BLUE 2.8V |
4,324 |
|
Datasheet | PVL | Bulk | Active | LED | Blue | Blue | Clear | - | 2.8V | 20mA | Round | 0.64" (16.26mm) | 10.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

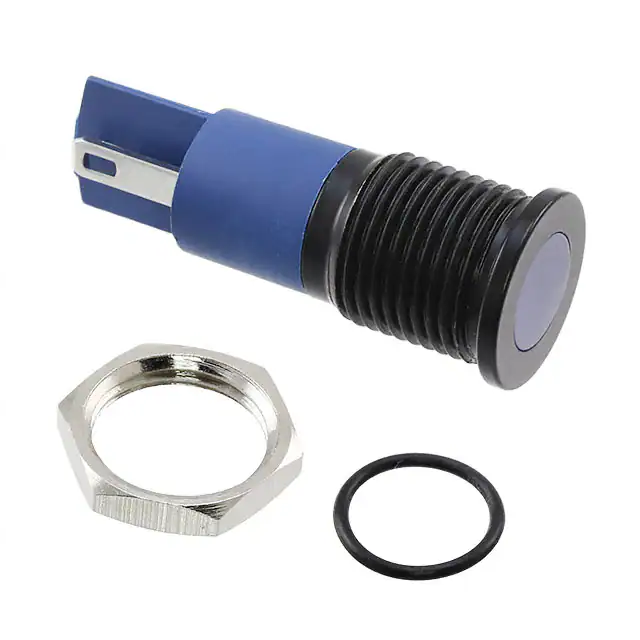

PVL12FL141LED PANEL INDICATOR BLUE 2.8V |
2,869 |
|
Datasheet | PVL | Bulk | Active | LED | Blue | Blue | Clear | - | 2.8V | 20mA | Round | 0.56" (14.22mm) | 8.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PVL14FWS16LED PANEL INDICATOR 110V |
3,087 |
|
Datasheet | PVL | Bulk | Active | LED | - | Red | - | DC | 110V | 2mA ~ 20mA | Round | 0.551" (14.00mm) | 8.00mm Dia | Round with Flat Top | - | - | - | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

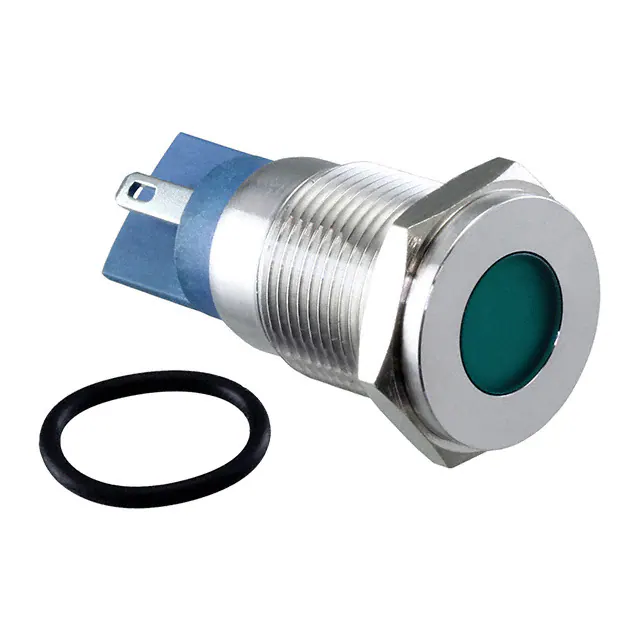

PVL16FLS31LED PANEL INDICATOR GREEN 2.8V |
4,987 |
|
Datasheet | PVL | Bulk | Active | LED | Green | Green | Clear | - | 2.8V | 20mA | Round | 0.64" (16.26mm) | 10.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PV6F2PXSS-211LED PANEL INDICATOR RED 1.8V |
1,360 |
|
Datasheet | PV6 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 1.8V | 20mA | Round | 0.63" (16.00mm) | 4.00mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP65 | - |
|
PV6F2PXSS-231LED PANEL INDICATOR GRN 2.8V |
1,060 |
|
Datasheet | PV6 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 2.8V | 20mA | Round | 0.63" (16.00mm) | 4.00mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP65 | - |
|
L16PLT10CGRNINCAND PANEL INDICATOR GRN 28V |
1,241 |
|
Datasheet | L16 | Bulk | Active | Incandescent | Green | - | - | DC | 28V | 40mA | Round | 0.63" (16.00mm) | 24.00mm x 18.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
RA12001000-137PILOT LIGHT RECT GREEN 250V |
1,406 |
|
Datasheet | RA1 | Bulk | Active | - | - | Green | - | - | 250V | - | Rectangle | 0.52" x 0.76" (13.10mm x 19.40mm) | 14.30mm x 9.70mm | Rectangle with Flat Top | - | - | - | Solder Lug | - | - |
|
|
RSCHT141D1100PANEL INDICATOR |
3,283 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSCHT14001000-137NEON PANEL INDICATOR GRN |
4,928 |
|
Datasheet | - | Bulk | Active | Neon | Green | Green | - | - | 250V | - | Rectangle | 1.12" x 0.54" (28.50mm x 13.80mm) | 28.60mm x 13.90mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - |
