Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVL06FW131LED PANEL INDICATOR 2.8V |
356 |
|
Datasheet | PVL | Bulk | Active | LED | - | Green | - | DC | 2.8V | 2mA ~ 20mA | Round | 0.236" (6.00mm) | 3mm, T-1 | Round with Flat Top | - | - | - | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|
PVL06FL131LED PANEL INDICATOR GREEN 2.8V |
1,346 |
|
Datasheet | PVL | Bulk | Active | LED | Green | Green | Clear | - | 2.8V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PVL08FLS31LED PANEL INDICATOR GREEN 2.8V |
4,700 |
|
Datasheet | PVL | Bulk | Active | LED | Green | Green | Clear | - | 2.8V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PVL06FLS31LED PANEL INDICATOR 2.8V |
1,434 |
|
Datasheet | PVL | Bulk | Active | LED | - | Green | - | - | 2.8V | 20mA | Round | 0.236" (6.00mm) | 3.00mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP67 | - |
|

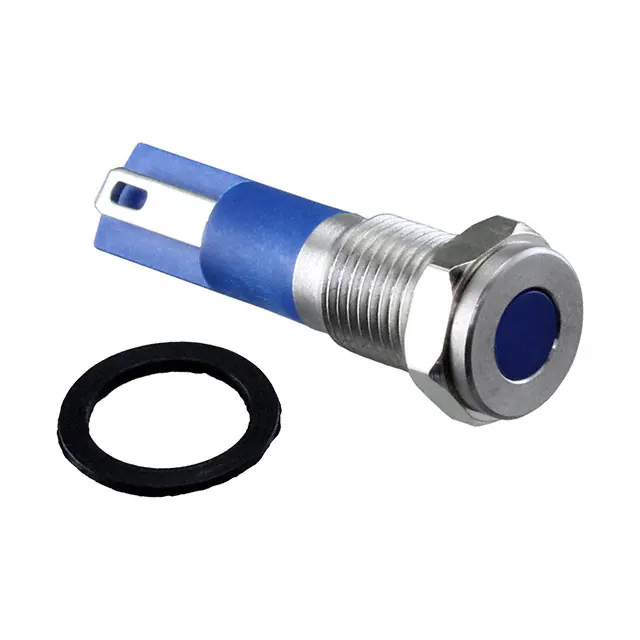

PVL08FLS41LED PANEL INDICATOR BLUE 2.8V |
383 |
|
Datasheet | PVL | Bulk | Active | LED | Blue | Blue | Clear | - | 2.8V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
L16PLR10KYELYELCONCAVELED PANEL INDICATOR YELLOW 24V |
177 |
|
Datasheet | L16 | Bulk | Active | LED | Yellow | Yellow | - | DC | 24V | - | Round | 0.63" (16.00mm) | 18.00mm Dia | Round with Flat Top | - | - | - | Solder Lug | - | - |
|
PV6F2PXSS-3R1LED PANEL INDICATOR RGB |
2,725 |
|
Datasheet | PV6, LAMB | Bulk | Active | LED | Red, Green, Blue (RGB) | - | - | DC | 1.8V Red, 2.8V Green, 2.8V Blue | 20mA Red, 20mA Green, 20mA Blue | Round | 0.63" (16.00mm) | 11.80mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP65 | - |
|
|
PVL08FW146LED PANEL INDICATOR 110V |
3,789 |
|
Datasheet | PVL | Bulk | Active | LED | - | Blue | - | - | 110V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | - | - | - | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|
PVL12FW145LED PANEL INDICATOR 24V |
2,674 |
|
Datasheet | PVL | Bulk | Active | LED | - | Blue | - | DC | 24V | 2mA ~ 20mA | Round | 0.472" (12.00mm) | 8.00mm Dia | Round with Flat Top | - | - | - | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

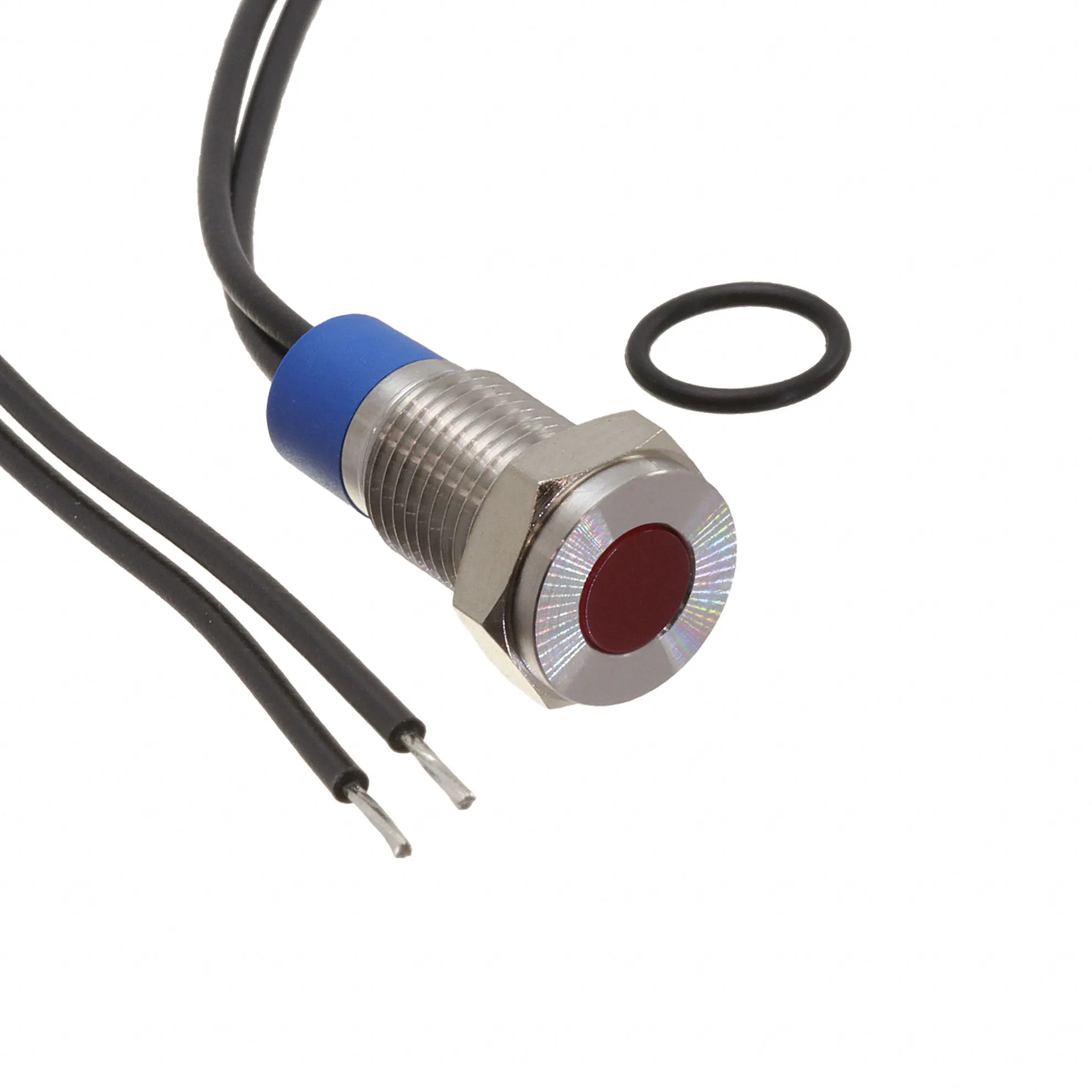

PVL08FWS13LED PANEL INDICATOR 6V |
100 |
|
Datasheet | PVL | Bulk | Active | LED | - | Red | - | DC | 6V | 2mA ~ 20mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | - | - | - | Wire Leads - 5.9" (150.00mm) | IP67 | - |
