Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6092322130FLED PNL MT 9MM 12V BLACK YELLOW |
316 |
|
Datasheet | 609 | Bag | Active | LED | Yellow | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | - | Round with Flat Top | 90mcd | - | - | - | IP66, NEMA 4X | - |
|
6091222120FLED PNL MT 9MM 6V BLACK GREEN |
151 |
|
Datasheet | 609 | Bag | Active | LED | Green | - | - | DC | 6V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 110mcd | - | - | - | IP66, NEMA 4X | - |
|
6762511110FLED PANEL INDCATOR WHITE 3.3V |
134 |
|
Datasheet | 676 | Bag | Active | LED | White | - | - | DC | 3.3V | 20mA | Round | 0.24" (6.20mm) | - | - | 6220mcd | - | - | PC Pin | - | - |
|
6773232322F7MM HG/G PMI-6VDC W/O-RING |
167 |
|
Datasheet | 677 | Bag | Active | LED | Green | - | - | DC | 6V | 30mA | Round | 0.28" (7.11mm) | - | - | 5500mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
6781315333F8MM HO/O PMI-12VDC W/O-RING |
150 |
|
Datasheet | 678 | Bag | Active | LED | Orange | - | - | DC | 12V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 490mcd | - | 20° | Wire Leads - 6" (152.40mm) | - | - |
|
6792125341F9MM HR/R PMI-24VDC W/O-RING |
132 |
|
Datasheet | 679 | Bag | Active | LED | Red | - | - | DC | 24V | 30mA | Round | 0.37" (9.40mm) | - | - | 775mcd | - | - | Wire Leads - 6" (152.40mm) | IP66, NEMA 4X | - |
|
6803435144F10MM HB/B PMI-24VDC |
205 |
|
Datasheet | 680 | Bag | Active | LED | Blue | - | - | DC | 24V | 30mA | Round | 0.41" (10.41mm) | - | - | 245mcd | - | - | Wire Leads - 6" (152.40mm) | - | - |
|
6792315343FLED PANEL INDCATOR ORANGE 24V |
148 |
|
Datasheet | 679 | Bag | Active | LED | Orange | - | - | DC | 24V | 30mA | Round | 0.37" (9.40mm) | - | - | 1570mcd | - | - | Wire Leads - 6" (152.40mm) | IP66, NEMA 4X | - |
|

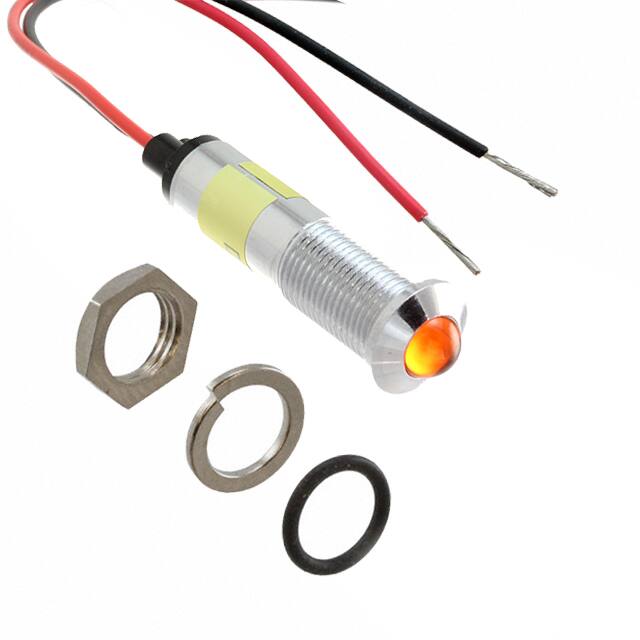

6791315343F9MM HO/O PMI-24VDC W/O-RING |
138 |
|
Datasheet | 679 | Bag | Active | LED | Yellow | - | - | DC | 24V | 30mA | Round | 0.37" (9.40mm) | 6.00mm Dia | Round with Domed Top | 1570mcd | - | - | Wire Leads - 6" (152.40mm) | IP66, NEMA 4X | - |
|
6772212322F7MM HG/G PMI-6VDC W/O-RING |
145 |
|
Datasheet | 677 | Bag | Active | LED | Green | - | - | DC | 6V | 30mA | Round | 0.28" (7.11mm) | - | - | 4135mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
