Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5581101805FLED PMI-RED |
1,831 |
|
- |
558 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5581301802FLED PMI-GREEN |
1,710 |
|
- |
558 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
6781135231F8MM HR/R PMI-12VDC |
1,743 |
|
Datasheet | 678 | Bag | Obsolete | LED | Red | - | - | DC | 12V | 30mA | Round | 0.32" (8.13mm) | - | - | 2210mcd | - | 5° | Wire Leads - 6" (152.40mm) | - | - |
|
|
5592201814FLED PANEL GRN DIFF SNAP-IN |
2,974 |
|
- |
559 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 10mcd | 563nm | 65° | - | - | - |
|
|
5593501810FLED PANEL RED/GRN SNAP-IN |
4,640 |
|
- |
559 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.3V Green, 2.1V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd Green, 5mcd Red | 565nm Green, 635nm Red | 65° | - | - | - |
|
|
5593501027FLED SNAP-IN PMI PVC FREE |
1,279 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.3V Green, 2.1V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd Green, 5mcd Red | 565nm Green, 635nm Red | 65° | Wire Leads - 14" (355.60mm) | - | - |
|
|
5580001809FLED PANEL INDICATOR 3MM |
3,476 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5591201023FLED PMI SNAP-IN YLW PVC FREE |
4,545 |
|
Datasheet | 559 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 1.9V | 7mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 1.8mcd | 583nm | 50° | Wire Leads - 6" (152.40mm) | - | - |
|

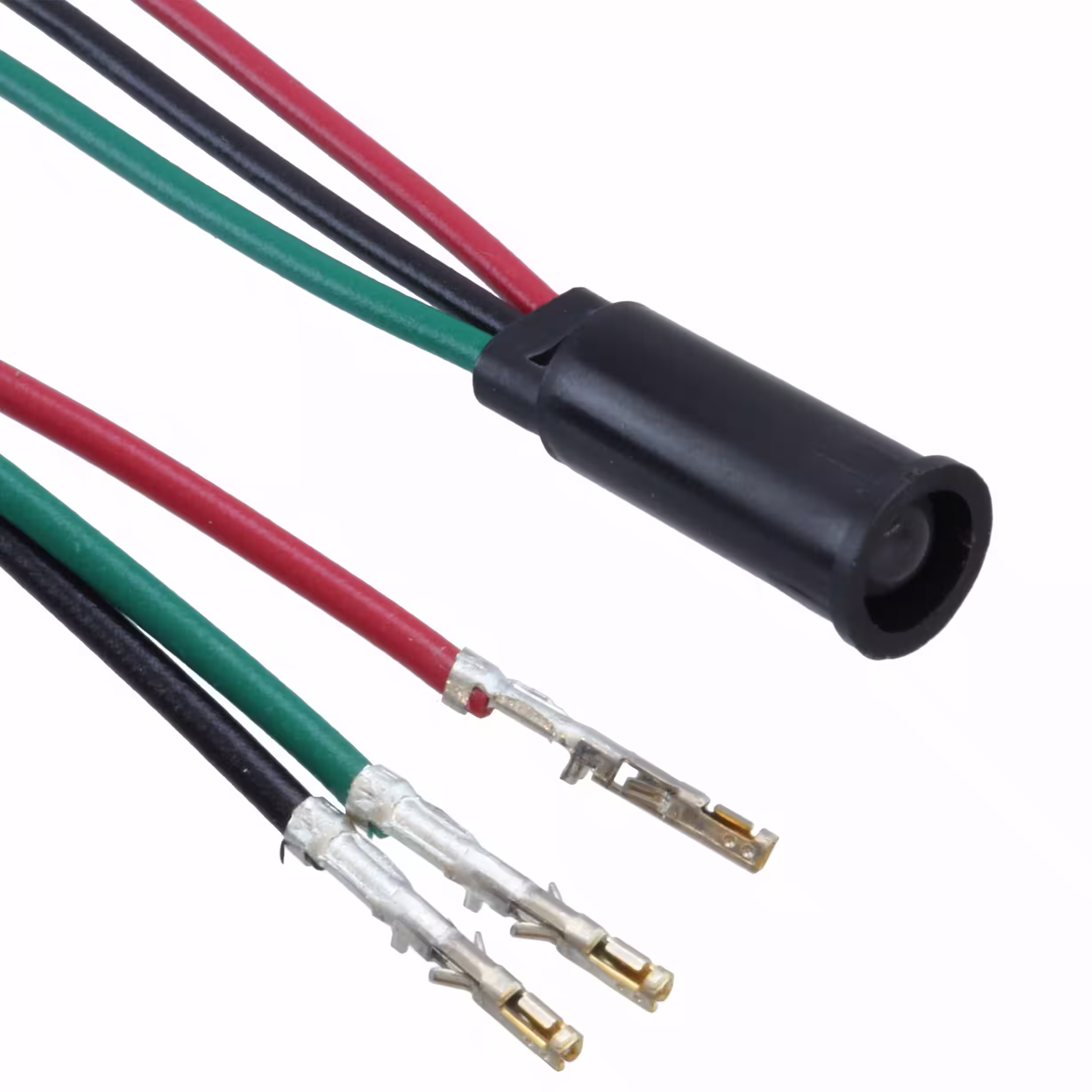

5593601809FLED PMI PANEL SNAP-IN |
2,382 |
|
- |
559 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
6781331113F8MM HO/O PMI 2VFTYP W/O RES |
4,691 |
|
Datasheet | 678 | Bag | Active | LED | Orange | - | - | DC | 2V | 30mA | Round | 0.32" (8.13mm) | - | - | 2210mcd | - | 4° | Solder Lug | - | - |
