Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3-PYDW12.0PNL MNT YLW 20MA W/WIRE: 12" |
4,260 |
|
Datasheet | PM3 | Bag | Obsolete | LED | Yellow | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 585nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|

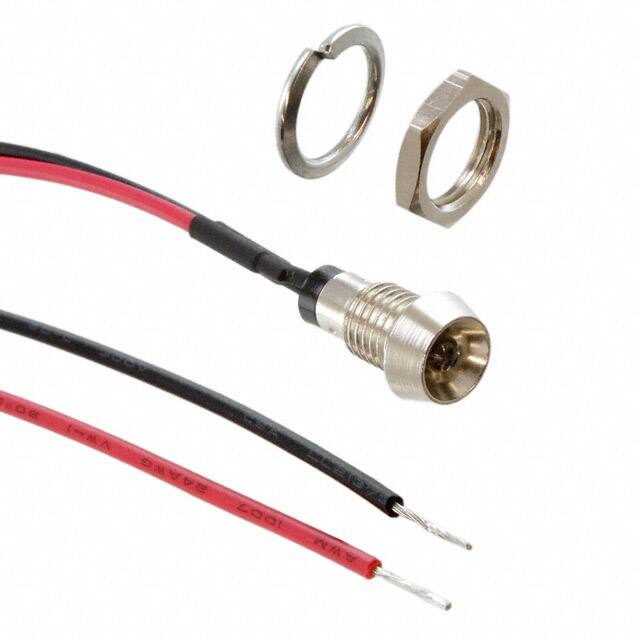

MPR3BWCW12.0PNL MNT BLUE W/WIRE 12" |
4,274 |
|
Datasheet | MPR3 | Bag | Obsolete | LED | Blue | Colorless | Clear | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd | 430nm | 20° | Wire Leads - 12" (304.80mm) | - | - |
|
PM3-PBWDW12.0PNL MNT BLUE 20MA W/WIRE: 12" |
3,590 |
|
Datasheet | PM3 | Bag | Obsolete | LED | Blue | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 200mcd | 470nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
MPC3BWD5VIND METAL PNL 3MM BLUE BLUE DIFF |
1,209 |
|
Datasheet | - | Tray | Obsolete | LED | Blue | - | Diffused | - | 5V | - | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 35° | - | - | - |
|
|
MPC3SRDLIND METAL PNL 3MM RED DIFF |
1,977 |
|
Datasheet | - | Bag | Obsolete | LED | Red | - | Diffused | Vf (Typ), If (Max) | 2V | 7mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 8mcd | 645nm | 35° | - | - | - |
|
|
MPC3YD5VIND METAL PNL 3MM YLW DIFF 5VDC |
1,257 |
|
Datasheet | - | Tray | Obsolete | LED | Yellow | - | Diffused | - | 5V | - | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 20mcd | 590nm | 35° | - | - | - |
|
|
MPC5BWTW12.0-CCIND METAL PNL 5MM BLUE TINT 12" |
3,357 |
|
Datasheet | - | Bag | Obsolete | LED | Blue | - | - | Vf (Typ), If (Max) | 4V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | 430nm | 20° | Wire Leads - 12" (304.80mm) | - | - |
|
|
MPC5GD12VIND METAL PNL 5MM GRN DIFF 12VDC |
4,014 |
|
Datasheet | - | Tray | Obsolete | LED | Green | - | Diffused | - | 12V | - | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 40° | - | - | - |
|
|
MPC5GD5VW24.0LED ASSY PNL 5MM GRN DIFF 12" |
4,998 |
|
Datasheet | - | Tray | Obsolete | LED | Green | - | Diffused | - | 5V | - | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 40° | Wire Leads - 24" (609.60mm) | - | - |
|
|
MPC5HD12VIND METAL PNL 5MM HER DIFF 12VDC |
3,947 |
|
Datasheet | - | Tray | Obsolete | LED | Red | - | Diffused | - | 12V | - | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 30mcd | 625nm | 40° | - | - | - |
