Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM5-KYDPNL MNT 590NM 300MCD 2V YLW |
4,888 |
|
- |
PM5 | Bag | Obsolete | LED | Yellow | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 300mcd | 590nm | 120° | - | - | - |
|
PM5-KYDW12.0LED PANEL INDICATOR YLW 2V |
3,795 |
|
- |
PM5 | Bag | Obsolete | LED | Yellow | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 300mcd | 590nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
PM3-KHDPNL MNT 625NM 30MCD 2V RED |
3,310 |
|
- |
PM3 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 625nm | 120° | - | - | - |
|
PM5-PBWDW12.0PNL MNT W/ WIRE 430NM 200MCD BLU |
4,168 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Blue | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 200mcd | 430nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
|
PM3-KPGDPNL MNT 555NM 20MCD 2.2V GREEN |
1,909 |
|
- |
PM3 | Bag | Obsolete | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 20mcd | 555nm | 120° | - | - | - |
|

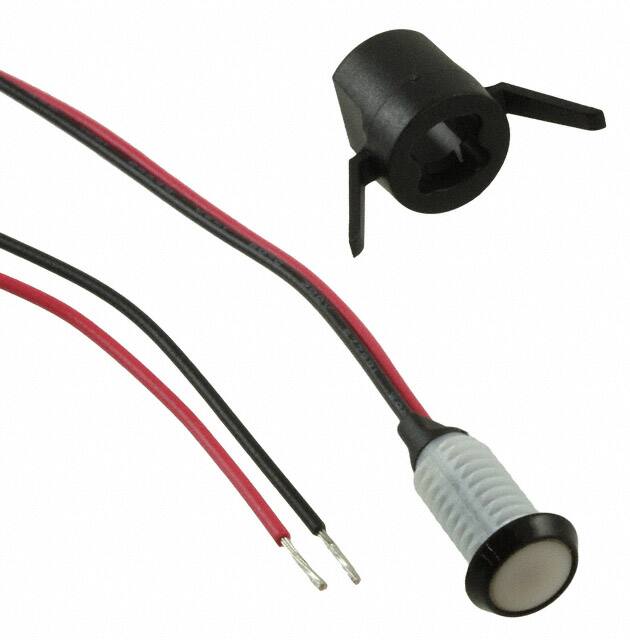

PM3-KPGDW12.0PNL MNT GREEN 20MA W/WIRE: 12" |
4,040 |
|
- |
PM3 | Bag | Obsolete | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 20mcd | 555nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
|
PM3-KRDW12.0PNL MNT RED 20MA W/WIRE: 12" |
1,473 |
|
- |
PM3 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 1.7V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
PM3-KADPNL MNT 610NM 100MCD 2V AMBER |
2,247 |
|
- |
PM3 | Bag | Obsolete | LED | Amber | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 100mcd | 610nm | 120° | - | - | - |
|

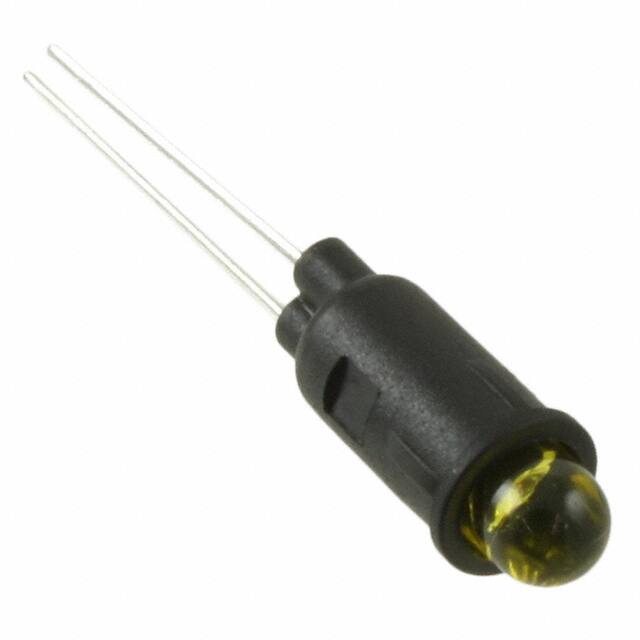

PM5YTPNL MNT W/ WIRE 590NM 40MCD YLW |
1,816 |
|
Datasheet | PM5 | Tray | Obsolete | LED | Yellow | Yellow | Clear | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 590nm | 35° | - | - | - |
|
PM5YTW12.0PNL MNT YLW 20MA W/WIRE 12" |
1,342 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Yellow | Yellow | Clear | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 590nm | 35° | Wire Leads - 12" (304.80mm) | - | - |
