Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

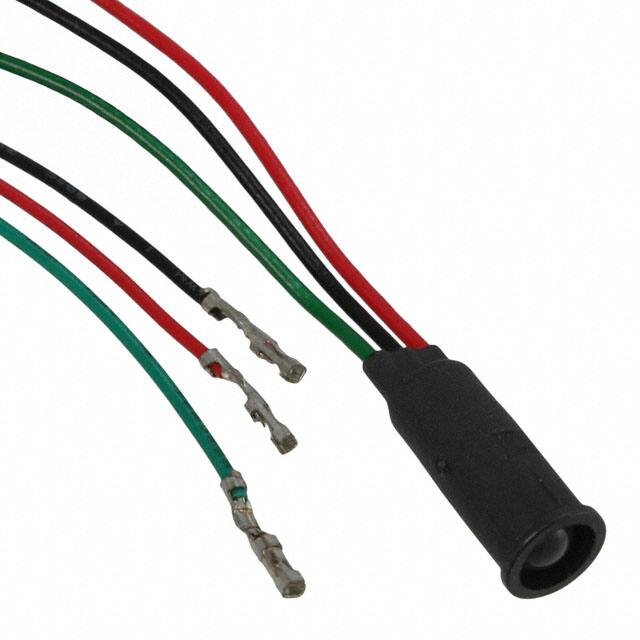

PM5R3-BCW12.0INDICATOR LED GREEN/RED PNL MNT |
2,733 |
|
Datasheet | PM5R3 | Bag | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | Wire Leads - 12" (304.80mm) | - | - |
|
MPR5RDPNL MNT W/ WIRE 700NM 2MCD RED |
1,619 |
|
Datasheet | MPR5 | Tray | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 35° | - | - | - |
|
MPR3BWDPNL MNT W/ WIRE 430NM 10MCD BLUE |
1,780 |
|
Datasheet | MPR3 | Tray | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 35° | - | - | - |
|
MPC5BWDPNL MNT W/ WIRE 430NM 15MCD BLUE |
4,516 |
|
Datasheet | MPC5 | Tray | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd | 430nm | 45° | - | - | - |
|
PMR4RDLED PANEL INDICATOR RED 2.1V |
1,716 |
|
Datasheet | PMR4 | Bag | Active | LED | Red | - | Diffused | Vf (Typ), If (Max) | 2.1V | 80mA | Rectangle | 0.22" x 0.14" (5.59mm x 3.56mm) | 2.10mm x 4.00mm | Rectangle with Flat Top | 0.4mcd | 700nm | 120° | PC Pin | - | - |
|
PMR4ADLED PANEL INDICATOR AMBER 2V |
3,719 |
|
Datasheet | PMR4 | Bag | Active | LED | Amber | - | Diffused | Vf (Typ), If (Max) | 2V | 150mA | Rectangle | 0.22" x 0.14" (5.59mm x 3.56mm) | 2.10mm x 4.00mm | Rectangle with Flat Top | 6mcd | 605nm | 120° | PC Pin | - | - |
|
MPC5HDPNL MNT W/ WIRE 625NM 25MCD RED |
3,272 |
|
Datasheet | MPC5 | Tray | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 625nm | 45° | - | - | - |
|
PM5-PADPNL MNT 605NM 25MCD AMBER |
2,079 |
|
Datasheet | PM5 | Bag | Active | LED | Amber | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 25mcd | 605nm | 120° | - | IP67 | - |
|
|
PM5YDLSTD PANEL MOUNT INDICATORS |
3,079 |
|
- |
PM5 | Bulk | Active | LED | Yellow | - | Diffused | Vf (Typ), If (Max) | 2V | 2mA | Round | 0.25" (6.35mm) | 4.83mm Dia | Round with Domed Top | 4mcd | 590nm | 45° | PC Pin | - | - |
|
|
PM3HDPNL MNT W/ WIRE 625NM 30MCD RED |
4,842 |
|
Datasheet | PM3 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 625nm | 40° | - | - | - |
