Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM5GDPNL MNT W/ WIRE 568NM 25MCD GREE |
2,553 |
|
Datasheet | PM5 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 45° | - | - | - |
|
MPR3GDPNL MNT W/ WIRE 568NM 25MCD GRN |
1,302 |
|
Datasheet | MPR3 | Tray | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | - | - | - |
|
MPR3GDW12.0LED PANEL INDICATOR GREEN 2.1V |
2,889 |
|
Datasheet | MPR3 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | Wire Leads - 12" (304.80mm) | - | - |
|

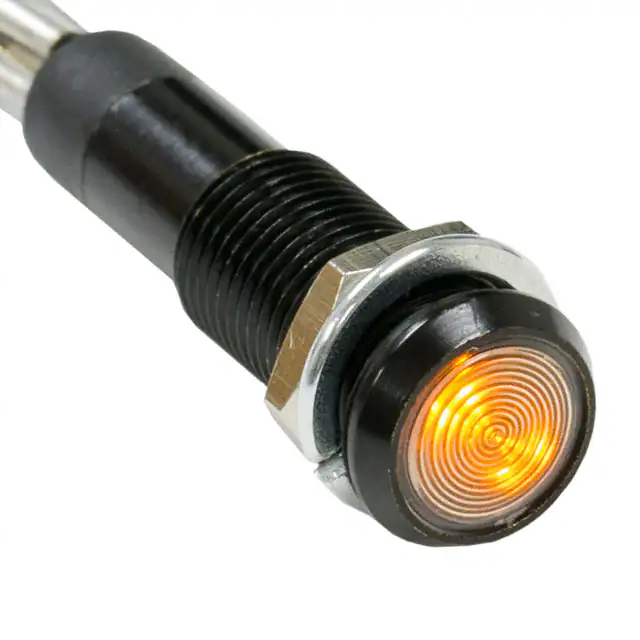

PM5-M124-YLWPANEL MNT ASSY IP67 7MM YELLOW |
1,340 |
|
Datasheet | PM5-M124 | Bag | Active | LED | Yellow | Colorless | Fresnel | AC/DC | 12V ~ 24V | 20mA | Round | 0.32" (8.13mm) | 10.20mm Dia | Round with Flat Top | 10mcd | 590nm | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | Auto-Dimming |
|
PM3SRDPMI IND 645NM RED DIFF LENS |
2,428 |
|
Datasheet | PM3 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.7V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 40mcd | 645nm | 40° | - | - | - |
|
MPC3GDLED ASSY PNL 3MM GRN DIFF 565NM |
2,472 |
|
Datasheet | MPC3 | Tray | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | PC Pin | - | - |
|
PM5RDW12.0PNL MNT RED 20MA W/WIRE 12" |
4,430 |
|
Datasheet | PM5 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | Wire Leads - 12" (304.80mm) | - | - |
|
MPR5HDPNL MNT W/ WIRE 625NM 25MCD RED |
4,000 |
|
Datasheet | MPR5 | Tray | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 625nm | 40° | - | - | - |
|
PM5R3-BCW12.0CCINDICATOR LED GREEN/RED PNL MNT |
2,617 |
|
Datasheet | PM5R3 | Bag | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | Wire Leads - 12" (304.80mm) | - | - |
|
MPR5BWDW12.0PNL MNT BLUE W/WIRE 12" |
3,063 |
|
Datasheet | MPR5 | Bag | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd | 430nm | 40° | Wire Leads - 12" (304.80mm) | - | - |
