Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

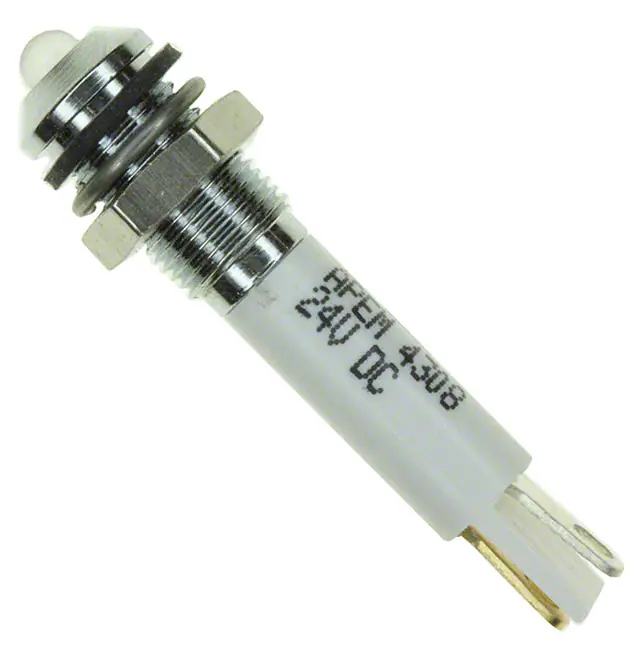

Q6P1CXXW24EINDICATOR 24V 6MM PROMINENT WHT |
1,867 |
|
Datasheet | Q6 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 1200mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8P7CXXG06ELED Panel Mount Indicators Promi |
4,201 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Q8P1CXXSR12INDICATOR 12V 8MM PROMINENT RED |
4,570 |
|
Datasheet | Q8 | Bag | Discontinued at Digi-Key | LED | Red | Colorless | Clear | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 10000mcd | - | 100° | Solder Lug | - | - |
|
Q16P1BXXR12EINDICATOR 12V 16MM PROMINENT RED |
3,786 |
|
Datasheet | Q16 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Domed Top | 100mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q16F1BXXY12EINDICATOR 12V 16MM FLUSH YELLOW |
4,872 |
|
Datasheet | Q16 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q8R7BXXSG02ELED PANEL INDICATOR GRN 2V |
3,999 |
|
Datasheet | Q8 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 4500mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14P1CXXY12INDICATOR 12V 14MM PROMINENT YLW |
3,510 |
|
Datasheet | Q14 | Bag | Discontinued at Digi-Key | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 50mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | - | - |
|
Q8P1CXXR12EINDICATOR 12V 8MM PROMINENT RED |
2,650 |
|
Datasheet | Q8 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd | - | 100° | Solder Lug | IP67 | - |
|

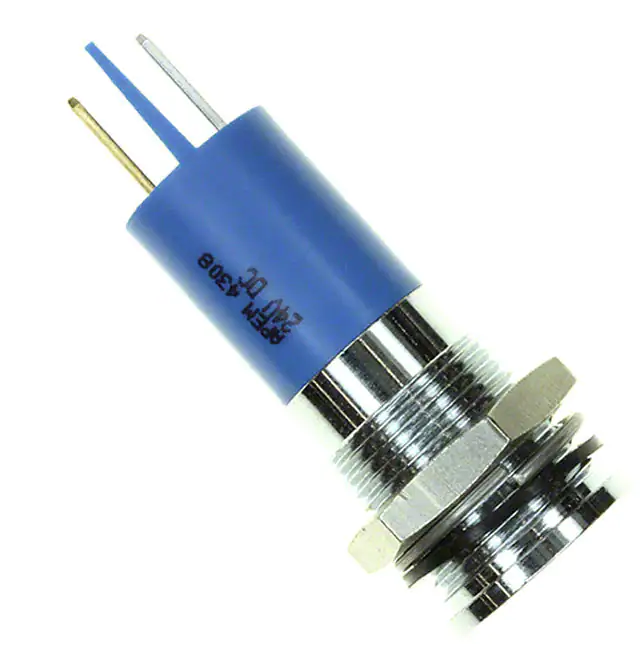

Q14F1CXXB24EINDICATOR 24V 14MM FLUSH BLUE |
2,576 |
|
Datasheet | Q14 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 100mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F1CXXW12EINDICATOR 12V 14MM FLUSH WHITE |
2,038 |
|
Datasheet | Q14 | Bulk | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 120mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
