Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q22P5BXXY24EX0199LED INDICATOR 22MM |
4,211 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Q22P1CXXG110LED INDICATOR 22MM |
3,328 |
|
Datasheet | Q22 | Bulk | Active | LED | Green | Green | Diffused | AC | 110V | 5mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Domed Top | 95mcd | - | 100° | Solder Lug | - | - |
|
|
Q19P3CXXSG02ELED INDICATOR 19MM |
4,374 |
|
Datasheet | Q19 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.75" (19.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 11000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q19P3BXXSR110ELED INDICATOR 19MM |
4,637 |
|
Datasheet | Q19 | Bulk | Active | LED | Red | Colorless | Clear | AC | 110V | 6mA | Round | 0.75" (19.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 17000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q19P7BXXSG02ELED INDICATOR 19MM |
1,063 |
|
Datasheet | Q19 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.75" (19.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 11000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q22F1CZZRYG24ELED INDICATOR 22MM |
2,403 |
|
Datasheet | Q22 | Bulk | Active | LED | Green, Red, Yellow | Green, Red, Yellow | Diffused | DC | 24V Green, 24V Red, 24V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Flat Top | 50mcd Green, 80mcd Red, 50mcd Yellow | - | 100° | Solder Lug | IP67 | - |
|

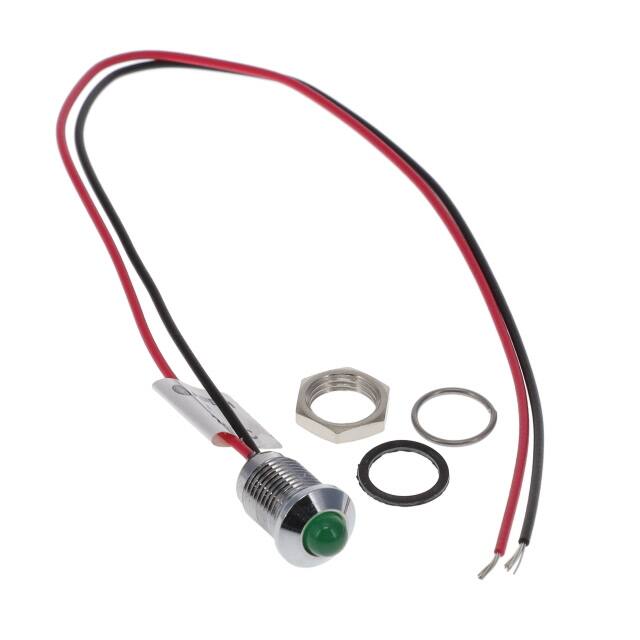

Q8P5CXXHG24EINDICATOR 8MM PM PROMINENT GREEN |
1,404 |
|
Datasheet | Q8 | Tray | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1900mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

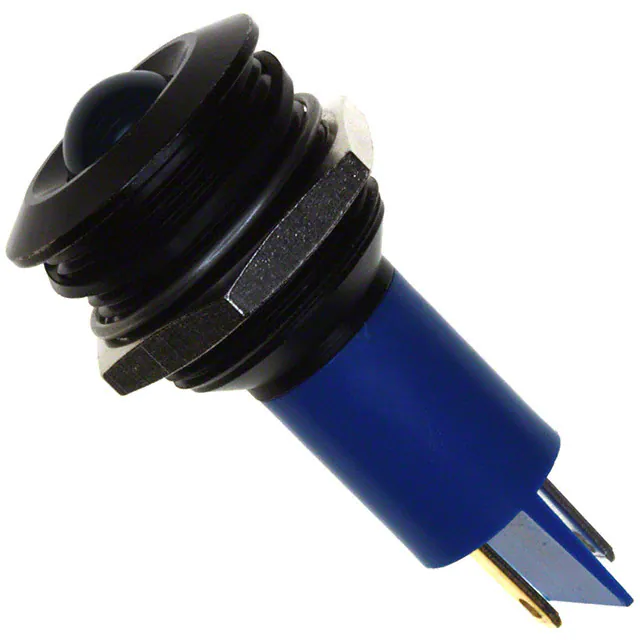

Q19P1CXXB110EINDICATOR 110V 19MM PROM BLUE |
2,206 |
|
Datasheet | Q19 | Bulk | Active | LED | Blue | Blue | Diffused | AC | 110V | 6mA | Round | 0.75" (19.05mm) | 10.00mm Dia | Round with Domed Top | 540mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

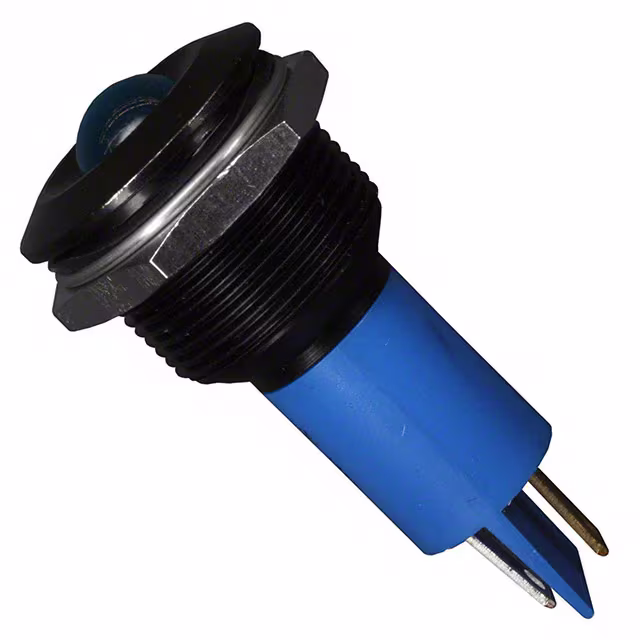

Q19P1BXXB110EINDICATOR 110V 19MM PROM BLUE |
1,214 |
|
Datasheet | Q19 | Bulk | Active | LED | Blue | Blue | Diffused | AC | 110V | 6mA | Round | 0.75" (19.05mm) | 10.00mm Dia | Round with Domed Top | 540mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q12P3CXXHR24ELED INDICATOR 12MM |
1,704 |
|
Datasheet | Q12 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.47" (12.00mm) | 8.00mm Dia | Round with Domed Top | 1900mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
