Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

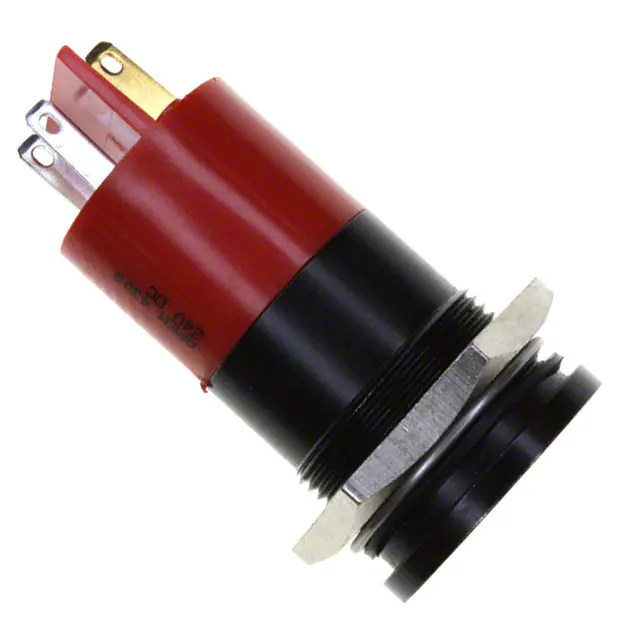

Q22F1BXXR24EINDICATOR 24V 22MM FLUSH RED |
4,019 |
|
Datasheet | Q22 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 70mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

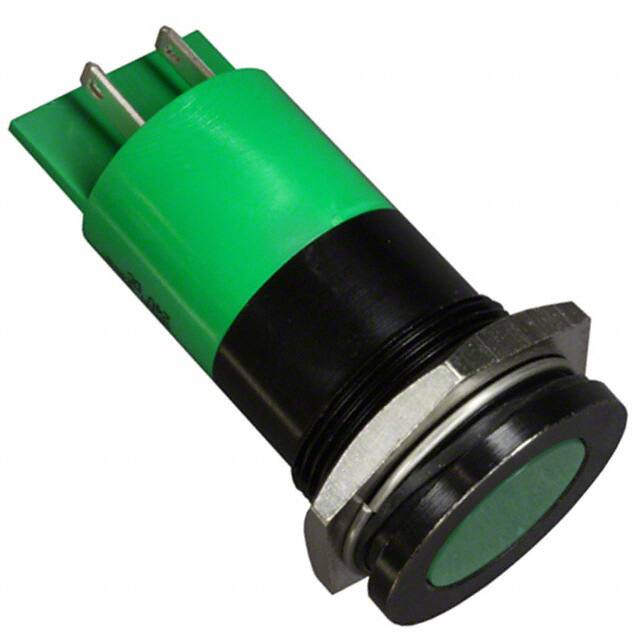

Q22F1BXXG24EINDICATOR 24V 22MM FLUSH GREEN |
1,688 |
|
Datasheet | Q22 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

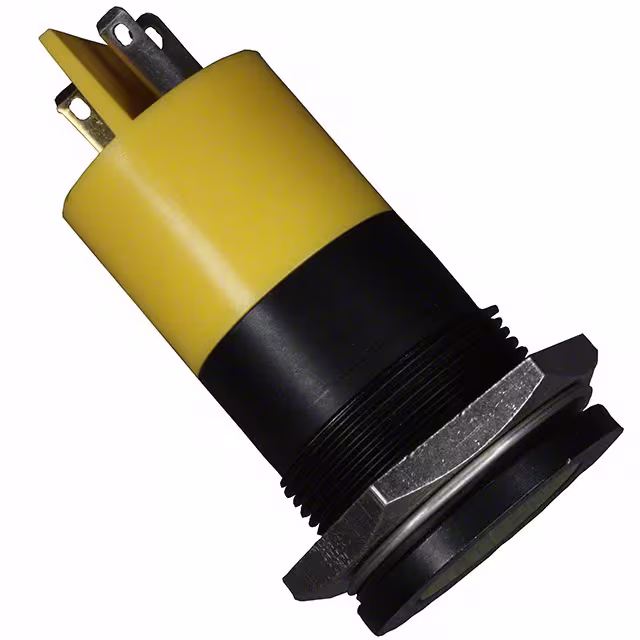

Q22F1BXXY24EINDICATOR 24V 22MM FLUSH YELLOW |
3,383 |
|
Datasheet | Q22 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q22F1BXXY28ELED INDICATOR 22MM |
2,851 |
|
Datasheet | Q22 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 28V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Flat Top | 59mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q22F1BXXR28ELED INDICATOR 22MM |
3,107 |
|
Datasheet | Q22 | Bulk | Active | LED | Red | Red | Diffused | DC | 28V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Flat Top | 70mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8F5BXXW02EINDICATOR 8MM PM FLUSH WHITE POT |
3,426 |
|
Datasheet | Q8 | Tray | Active | LED | White | White | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 500mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q16F5GXXHR220ELED INDICATOR 16MM |
2,997 |
|
Datasheet | Q16 | Bulk | Active | LED | Red | Red | Diffused | AC | 220V | 3mA | Round | 0.63" (16.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 800mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q19P1CXXSG24ELED INDICATOR 19MM |
2,249 |
|
Datasheet | Q19 | Bulk | Active | LED | Green | Colorless | Clear | DC | 24V | 20mA | Round | 0.75" (19.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 11000mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q19P1CXXSB12ELED INDICATOR 19MM |
2,527 |
|
Datasheet | Q19 | Bulk | Active | LED | Blue | Colorless | Clear | DC | 12V | 20mA | Round | 0.75" (19.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 2500mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q19P1CXXSG12ELED INDICATOR 19MM |
4,890 |
|
Datasheet | Q19 | Bulk | Active | LED | Green | Colorless | Clear | DC | 12V | 20mA | Round | 0.75" (19.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 11000mcd | - | 100° | Solder Lug | IP67 | - |
