Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

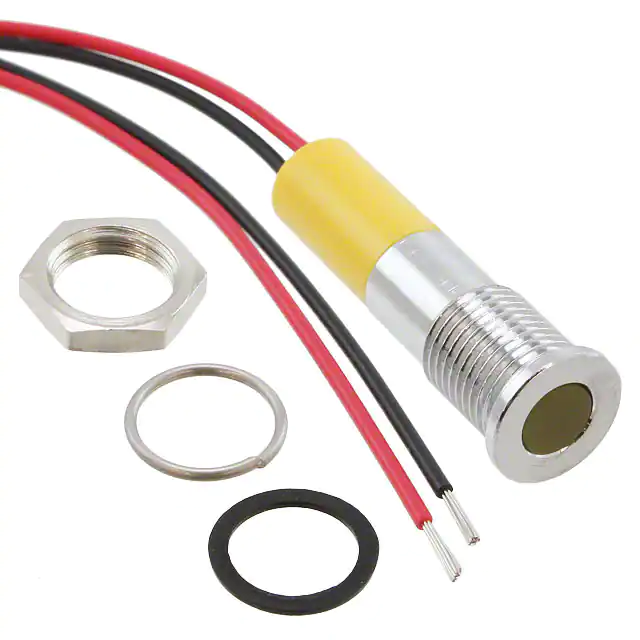

Q8F3CXXY24ELED PM INDICATOR FLUSH YELLOW |
333 |
|
Datasheet | Q8 | Bag | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8R3CXXG24ELED PM INDICATOR RECESSED GREEN |
229 |
|
Datasheet | Q8 | Bag | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F3BXXR24ELED PM INDICATOR FLUSH RED |
101 |
|
Datasheet | Q8 | Bag | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 12mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

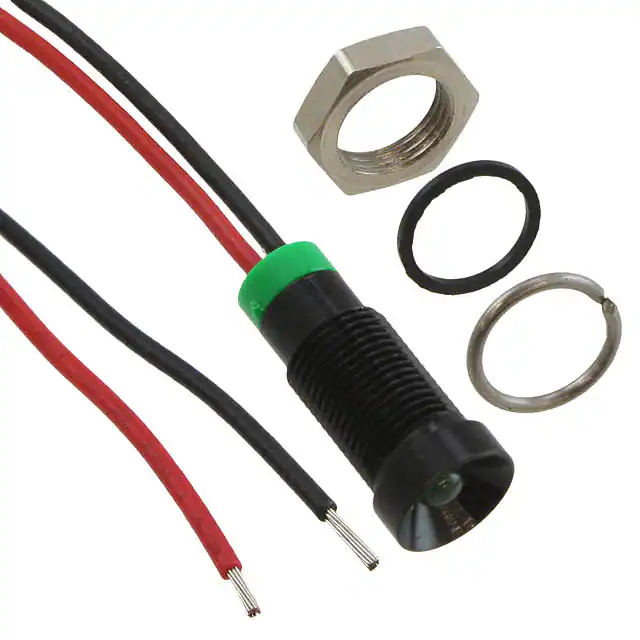

Q6R7BXXG02ELED PM INIDCATOR RECESSED GREEN |
225 |
|
Datasheet | Q6 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6R7BXXR02ELED PM INDICATOR RECESSED RED |
228 |
|
Datasheet | Q6 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P1BXXY110EINDICATOR 110V 8MM PROMINENT YEL |
139 |
|
Datasheet | Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | - | 100° | Solder Lug | IP67 | - |
|
Q14F3CXXG12ELED PM INDICATOR FLUSH GREEN |
148 |
|
Datasheet | Q14 | Bag | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12-7P1CXXHG02ELED INDICATOR 12.7MM PROMINENT H |
416 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 3.3V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Domed Top | 1560mcd | - | - | Solder Lug | IP67 | - |
|
Q8P3BZZRYG24ELED PMI PROMINENT GRN/RED/YLW |
698 |
|
Datasheet | Q8 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd Green, 60mcd Red, 13mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12P1BXXG24EINDICATOR 24V 12MM PROMINENT GRN |
531 |
|
Datasheet | Q12 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 60mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
