Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

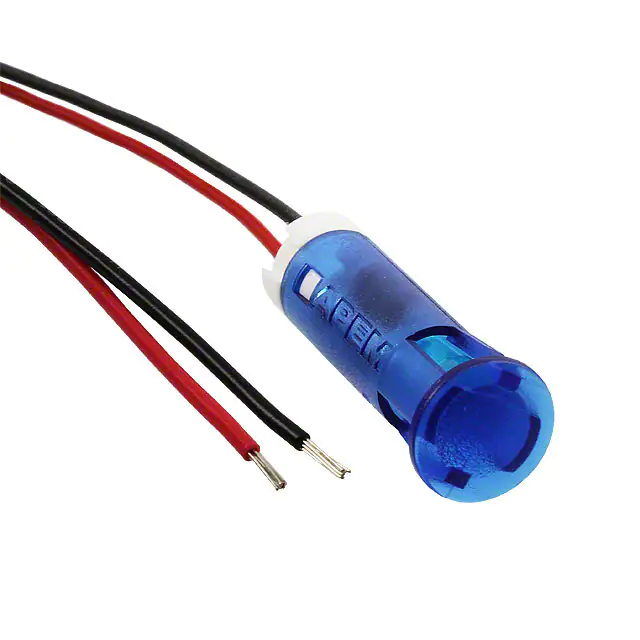

QS83XXHB220INDICATOR 8MM FIXED HI BLU 220V |
105 |
|
Datasheet | QS | Bulk | Active | LED | Blue | Blue | Diffused | AC | 220V | 3mA | Round | 0.315" (8.00mm) | 10.00mm Dia | Round with Flat Top | 1600mcd | - | 45° | Wire Leads - 7.87" (200.00mm) | - | - |
|
QS83XXW24INDICATOR 8MM FIXED WHT 24V WIRE |
406 |
|
Datasheet | QS | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.315" (8.00mm) | 10.00mm Dia | Round with Flat Top | 380mcd | - | 30° | Wire Leads - 7.87" (200.00mm) | - | - |
|

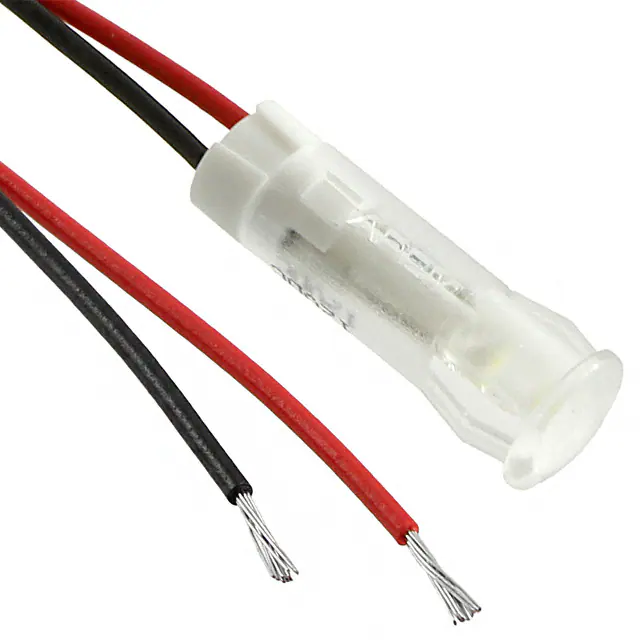

QS63XXW24INDICATOR 6MM FIXED WHT 24V WIRE |
207 |
|
Datasheet | QS | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.24" (6.00mm) | 7.20mm Dia | Round with Convex Top | 1200mcd | - | 30° | Wire Leads - 7.87" (200.00mm) | - | - |
|
Q14F1BXXY12EINDICATOR 12V 14MM FLUSH YELLOW |
191 |
|
Datasheet | Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q6P1BXXG12EINDICATOR 12V 6MM PROMINENT GRN |
3,162 |
|
Datasheet | Q6 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8P1BXXG12EINDICATOR 12V 8MM PROMINENT GRN |
1,107 |
|
Datasheet | Q8 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8F1CXXG12EINDICATOR 12V 8MM FLUSH GREEN |
667 |
|
Datasheet | Q8 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Solder Lug | IP67 | - |
|
Q6F7BXXY02ELED PM INDICATOR FLUSH YLW |
9,383 |
|
Datasheet | Q6 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 8mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8R7CXXG02ELED PM IND RECESSED GREEN |
448 |
|
Datasheet | Q8 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14P1CXXG24EINDICATOR 24V 14MM PROMINENT GRN |
550 |
|
Datasheet | Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 60mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
