Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Actuator Type | Switch Function | Functions, Extra | Output | Voltage - Supply | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Resistance | Mounting Type | Termination Style | Operating Temperature | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF27R11SWITCH JOYSTICK HALL EFFECT |
1,159 |
|
Datasheet | HF | Bulk | Active | Joystick, 2 - Axis | Joystick | 360° Directional | 1 Pushbutton | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 85°C | Circular - 41.28mm Dia | IP67 - Dust Tight, Waterproof | - |
|

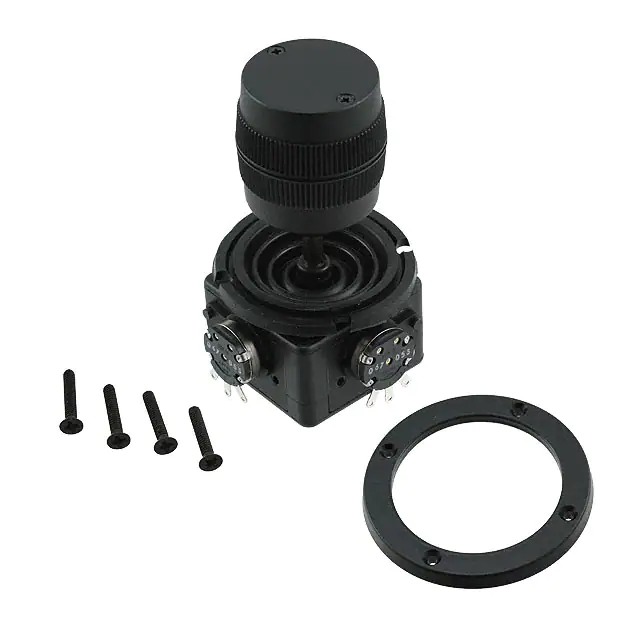

M31L081PSWITCH JOYSTICK ANALOG |
1,119 |
|
Datasheet | M | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 4-Way Directional | - | Analog (Resistive) | - | - | - | - | - | - | 5 kOhms | Panel Mount | Solder Lug | -25°C ~ 70°C | Circular - 39.70mm Dia | - | - |
|

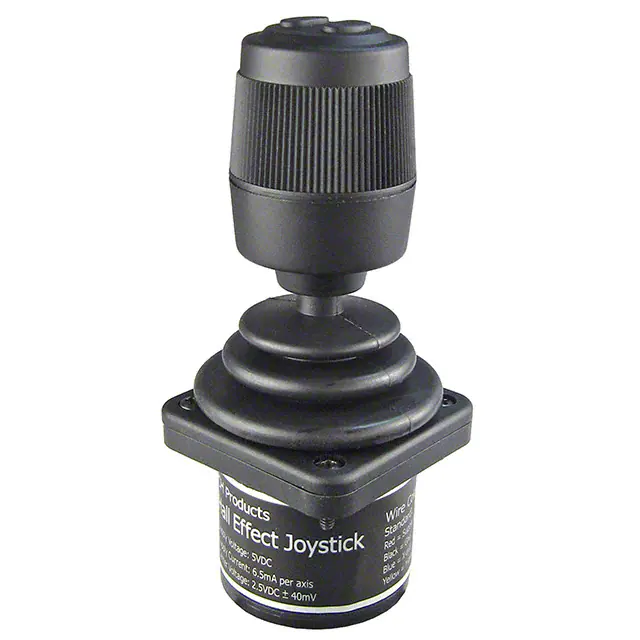

HFX45S10SWITCH JOYSTICK HALL EFFECT |
1,516 |
|
Datasheet | HFX Series I | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 2 Pushbuttons | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 85°C | Circular - 41.66mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
890003-0122SWITCH THUMBWHEEL ROCKER HALL |
4,000 |
|
Datasheet | AR3 | Box | Active | Thumbwheel, 1 - Axis | Rocker | 2-Way Directional | - | Analog (Hall Effect) | 8.5 ~ 30VDC | - | - | - | - | - | - | Panel Mount | Bare PCB | -35°C ~ 70°C | - | IP65 - Dust Tight, Water Resistant | Gray Actuator |
|
04J-AP-T02SWITCH NAVIGATION CASTLE 10MA 5V |
2,483 |
|
Datasheet | 04J | Bulk | Active | Navigation Switch, 2 - Axis | Castle | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 10mA (DC) | - | 5 V | Nickel | Gold | - | Panel Mount | PC Pin | -55°C ~ 85°C | - | IP68 - Dust Tight, Waterproof | - |
|
XS140SDM12A62000SWITCH THUMBSTCK FINGER TIP HALL |
1,169 |
|
Datasheet | XS | Box | Active | Thumbstick, 2 - Axis | Finger Tip | 4-Way Directional | - | Analog (Hall Effect) | 0 ~ 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads with Connector | -30°C ~ 85°C | Circular - 39.00mm Dia | IP66 - Dust Tight, Water Resistant | Black Actuator |
|
|
TSSJ 30SWITCH TACT 20MA 15V |
296 |
|
Datasheet | TSS | Tray | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 20mA (DC) | - | 15 V | Phosphor Bronze | Silver | 100 mOhms | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
|
TSSJ 4SWITCH TACT 50MA 12V |
850 |
|
Datasheet | TSS | Tape & Reel (TR) | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | Brass | Silver | 100 mOhms | Surface Mount | SMD (SMT) Tab | -40°C ~ 85°C | - | - | - |
|
|
TSSJ 5-JSWITCH TACT 50MA 12V |
850 |
|
Datasheet | TSS | Tape & Reel (TR) | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | Brass | Silver | 100 mOhms | Surface Mount | SMD (SMT) Tab | -40°C ~ 85°C | - | - | - |
|
|
TSSJ 5SWITCH TACT 50MA 12V |
850 |
|
Datasheet | TSS | Tape & Reel (TR) | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | Brass | Silver | 100 mOhms | Surface Mount | SMD (SMT) Tab | -40°C ~ 85°C | - | - | - |
|
|
TSJ 31SWITCH TACT 20MA 15V |
282 |
|
Datasheet | TSJ | Tray | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 20mA (DC) | - | 15 V | Phosphor Bronze | Silver | 100 mOhms | Through Hole | PC Pin | -25°C ~ 70°C | - | - | - |
|
|
PLSJ 1SWITCH TACT 10MA 5V |
999 |
|
Datasheet | PLS | Tape & Reel (TR) | Active | Thumbwheel, 1 - Axis | Thumbwheel | 2-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 10mA (DC) | - | 5 V | Phosphor Bronze | Silver | 100 mOhms | Surface Mount | J Lead | -10°C ~ 70°C | - | - | - |
|
CS41001ESWITCH NAV PUSHBUTTON 200MA 12V |
488 |
|
Datasheet | CS-41001E | Bulk | Active | Navigation Switch, 2 - Axis | Pushbutton | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 200mA (DC) | - | 12 V | - | - | - | Panel Mount, Snap-In | Wire Leads with Connector | -40°C ~ 90°C | Rectangular - 36.00mm x 35.70mm | - | - |
|
|
JS5210SWITCH DIP |
34,998 |
|
Datasheet | - | Bulk | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | - | - | - | - | - | Nickel | - | - | Surface Mount | J Lead | - | Square - 12.40mm² | - | - |
|
SAM-H2-MR14SPASWITCH NAVIGATION DGTL 15A 14V |
3,735 |
|
Datasheet | SAM | Tray | Obsolete | Navigation Switch, 1 - Axis | Plunger for Cap | 2-Way Directional | - | Digital (Mechanical Switch) | - | 15A (DC) | - | 14 V | Silver Alloy | - | - | Through Hole | PC Pin | -40°C ~ 85°C | - | IP30 | - |
|
SAM-H2-LR10SPASWITCH NAVIGATION DGTL 15A 14V |
3,248 |
|
Datasheet | SAM | Tray | Obsolete | Navigation Switch, 1 - Axis | Plunger for Cap | 2-Way Directional | - | Digital (Mechanical Switch) | - | 15A (DC) | - | 14 V | Silver Alloy | - | - | Through Hole | PC Pin | -40°C ~ 85°C | - | IP30 | - |
|
SAM-H2-LR14SPASWITCH NAVIGATION DGTL 15A 14V |
3,581 |
|
Datasheet | SAM | Tray | Obsolete | Navigation Switch, 1 - Axis | Plunger for Cap | 2-Way Directional | - | Digital (Mechanical Switch) | - | 15A (DC) | - | 14 V | Silver Alloy | - | - | Through Hole | PC Pin | -40°C ~ 85°C | - | IP30 | - |
|
SAM-H4-MR11SPASWITCH NAVIGATION DGTL 15A 14V |
3,470 |
|
Datasheet | SAM | Tray | Obsolete | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional | - | Digital (Mechanical Switch) | - | 15A (DC) | - | 14 V | Silver Alloy | - | - | Through Hole | PC Pin | -40°C ~ 85°C | - | IP30 | - |
|
|
SS2-T-8-A-1SWITCH JOYSTICK DIGITAL 5A 250V |
522 |
|
Datasheet | SS2 | Bulk | Active | Joystick, 2 - Axis | - | 4-Way Directional | - | Digital (Mechanical Switch) | - | 5A (AC) | 250 V | - | Silver (Ag) | Silver | - | Panel Mount | Solder Lug | -23°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | - |
|
TS2-1-S-T-1-C-BKSWITCH JOYSTICK CASTLE HALL 5V |
3,260 |
|
Datasheet | TS2 | Box | Active | Joystick, 2 - Axis | Castle | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Circular - 12.57mm | IP67 - Dust Tight, Waterproof | - |
