Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Actuator Type | Switch Function | Functions, Extra | Output | Voltage - Supply | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Resistance | Mounting Type | Termination Style | Operating Temperature | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSHA1S00A1RRSWITCH THUMBSTICK CASTLE HALL |
208 |
|
Datasheet | TS | Bulk | Active | Thumbstick, 2 - Axis | Castle | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Illuminated |
|
67B-RA-3C-S-04CSWITCH JOYSTICK FLATTED HALL |
130 |
|
Datasheet | 67B | Bulk | Active | Joystick, 3 - Axis | Flatted (4.06mm Dia) | 2-Way Rotational, 360° Directional, Center Select | - | Digital (Hall Effect Over I2C Interface) | 3.3VDC | - | - | - | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | Half Boot |
|

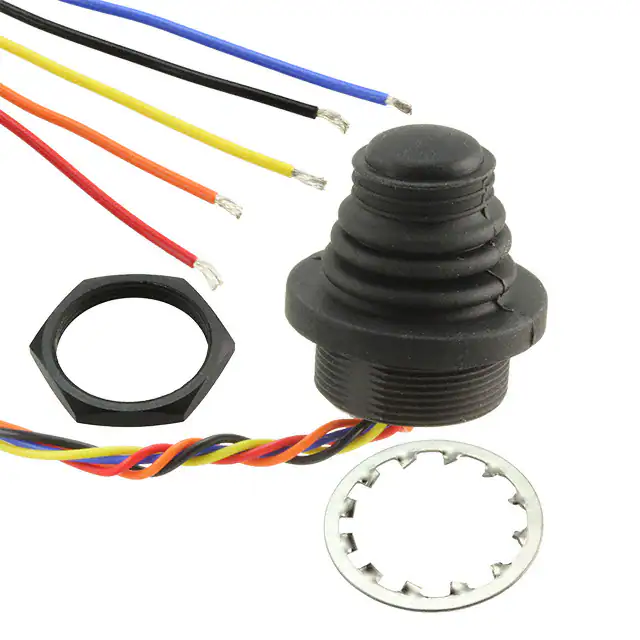

TS6T1S02ASWITCH THUMBSTCK PUSHBUTTON HALL |
348 |
|
Datasheet | TS | Bulk | Active | Thumbstick, 2 - Axis | Pushbutton | 4-Way Directional, Center Select | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.02mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
HF33S10SWITCH JOYSTICK HALL EFFECT |
145 |
|
Datasheet | HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP68 - Dust Tight, Waterproof | - |
|
HF44S10SWITCH JOYSTICK HALL EFFECT |
150 |
|
Datasheet | HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 1 Pushbutton | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP68 - Dust Tight, Waterproof | - |
|
HF46S10SWITCH JOYSTICK HALL EFFECT |
105 |
|
Datasheet | HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP68 - Dust Tight, Waterproof | - |
|
HF45S10SWITCH JOYSTICK HALL EFFECT |
104 |
|
Datasheet | HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 2 Pushbuttons | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP68 - Dust Tight, Waterproof | - |
|
3J2115-200SWITCH JOYSTICK DIGITAL |
416 |
|
Datasheet | 3J | Bulk | Active | Joystick, 3 - Axis | Joystick | 360° Directional, 360° Rotational, Center Select | 5 Pushbuttons | Digital (Mechanical Switch) | 8 ~ 32VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | - |
|
|

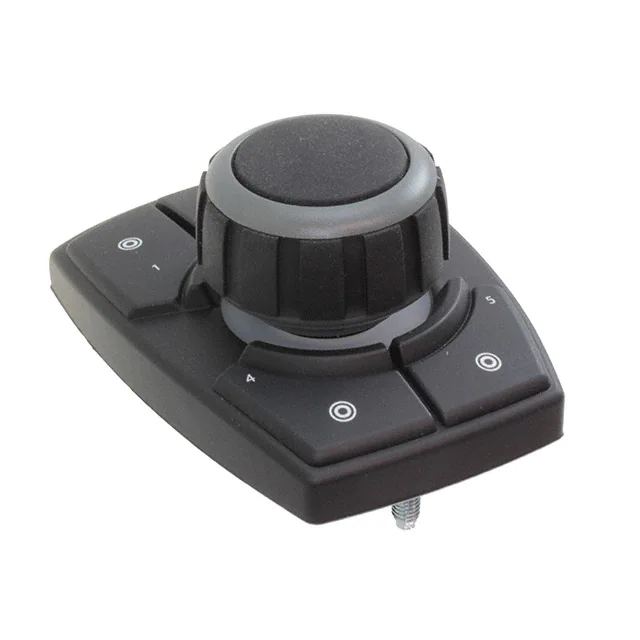

3J2115-200NSWITCH JOYSTICK DIGITAL |
140 |
|
Datasheet | 3J | Bulk | Active | Joystick, 3 - Axis | Joystick | 360° Directional, 360° Rotational, Center Select | 5 Pushbuttons | Digital (Mechanical Switch) | 8 ~ 32VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | - |
|
HF52S10SWITCH JOYSTICK HALL EFFECT |
2,427 |
|
Datasheet | HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 2 Pushbuttons | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP67 - Dust Tight, Waterproof | - |
|

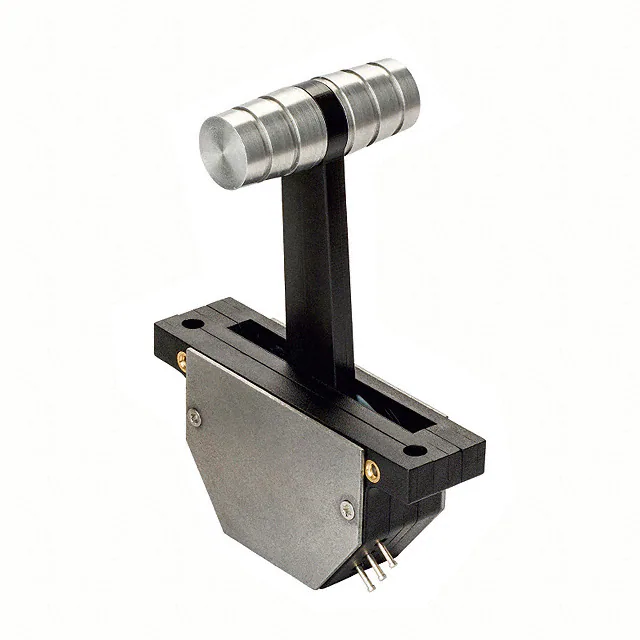

SN101SSSWITCH JOYSTICK T-HANDLE HALL |
4,197 |
|
Datasheet | SN | Bulk | Active | Joystick, 1 - Axis | T-Handle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Solder Turret | -20°C ~ 70°C | Rectangular - 56.00mm x 7.00mm | - | - |
|
HF44S10USWITCH JOYSTICK HALL EFFECT |
3,829 |
|
Datasheet | HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 1 Pushbutton | Digital (Hall Effect Over USB Interface) | 5VDC | - | - | - | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP68 - Dust Tight, Waterproof | - |
|
HF45S10USWITCH JOYSTICK HALL EFFECT |
3,248 |
|
Datasheet | HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 2 Pushbuttons | Digital (Hall Effect Over USB Interface) | 5VDC | - | - | - | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP68 - Dust Tight, Waterproof | - |
|
2425755-1SWITCH NAVIGATION DGTL 50MA 12V |
2,949 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | - | - | - | Surface Mount | J Lead | -25°C ~ 70°C | - | IP40 | - |
|
COM-08184SWITCH THUMBWHEEL DGTL 10MA 5V |
257 |
|
Datasheet | - | Strip | Active | Thumbwheel, 1 - Axis | Thumbwheel | 2-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 10mA (DC) | - | 5 V | - | - | - | Surface Mount | J Lead | - | - | - | - |
|
JS1300AQSWITCH NAV TACTILE 50MA 12V |
402 |
|
Datasheet | JS1300 | Tape & Reel (TR) | Active | Navigation Switch, 2 - Axis | Tactile (5 Button) | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | - | - | - | Surface Mount | J Lead | -20°C ~ 70°C | - | - | - |
|
|
JS1400DFQSWITCH NAVIGATION DGTL 50MA 12V |
753 |
|
Datasheet | JS1400 | Tape & Reel (TR) | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | - | - | 100 mOhms | Surface Mount | Gull Wing | -25°C ~ 70°C | - | - | - |
|
|
2765SWITCH THUMBSTICK PUCK ANALOG |
170 |
|
Datasheet | - | Bulk | Active | Thumbstick, 2 - Axis | Puck | 4-Way Directional | - | Analog (Resistive) | - | - | - | - | - | - | 10 kOhms | Through Hole | PC Pin | - | - | - | - |
|
|
SKRHABE010SWITCH JOYSTICK DIGITAL 50MA 12V |
794 |
|
Datasheet | SKRH | Tape & Reel (TR) | Active | Joystick, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | 1 Pushbutton | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | - | - | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
|
SKRHAAE010SWITCH JOYSTICK DIGITAL 50MA 12V |
1,294 |
|
Datasheet | SKRH | Tape & Reel (TR) | Active | Joystick, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | 1 Pushbutton | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | - | - | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
