Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-03250CABLE 14COND 20AWG BLACK SHLD |
4,770 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 14 | 20 AWG | 105/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.362" (9.20mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01168CABLE 8COND 26AWG BLACK SHLD 1M |
1,911 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 8 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.189" (4.80mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-00405CABLE 2COND 24AWG WHITE 5M |
3,210 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 24 AWG | 11/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.118" (3.00mm) | - | 16.40' (5.00m) | White | UL Style 2468 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01201CABLE 10COND 28AWG BLK SHLD 1M |
3,184 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 10 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.181" (4.60mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

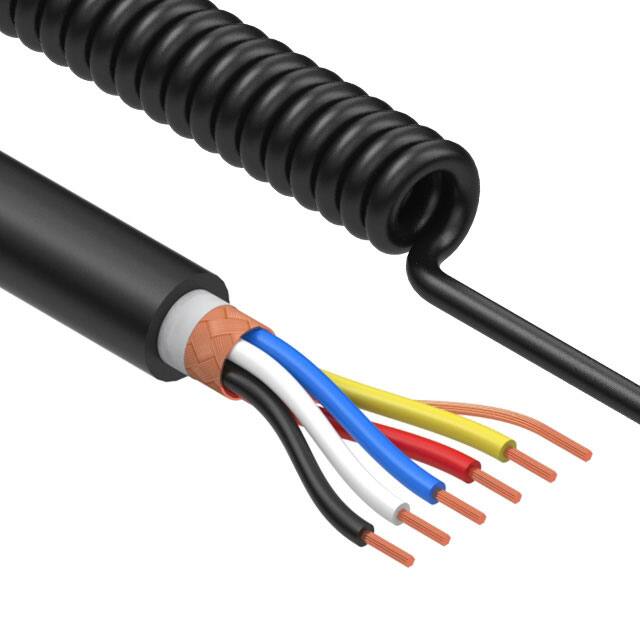

31-00066CBL COIL SHLD 5C 26AWG 1115MM |
4,995 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 5 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.189" (4.80mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01506CBL 8COND 26AWG SHLD 1M MPPE |
1,696 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 8 | 26 AWG | 26/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.197" (5.00mm) | Foil | 3.28' (1.00m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0311" (0.790mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02476CABLE 10COND 22AWG BLACK SHLD |
2,270 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 26/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.236" (5.99mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-01516CBL 9COND 20AWG SHLD MPPE |
2,425 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.283" (7.19mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0331" (0.840mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-01704CABLE 10COND 18AWG BLACK |
1,083 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 18 AWG | 41/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.421" (10.69mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00695CABLE 2COND 26AWG BLACK 5M |
2,223 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 26 AWG | 34/7 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.150" (3.81mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
