Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-02027CABLE 8COND 28AWG BLACK 1M |
2,706 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 8 | 28 AWG | 7/0.0047" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.185" (4.70mm) | - | 3.28' (1.00m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-02023CABLE 8COND 20AWG BLACK |
2,127 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.272" (6.91mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0102" (0.260mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
31-00006CBL COIL SHLD 2C 22AWG 1115MM |
1,197 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 2 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.185" (4.70mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|

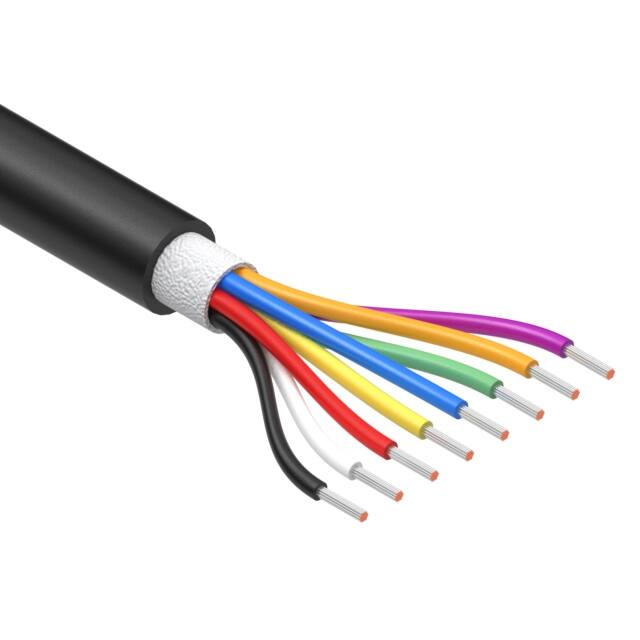

30-01949CABLE 8COND 20AWG BLACK |
2,617 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 20 AWG | 41/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.217" (5.51mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-03258CABLE 18COND 22AWG BLACK SHLD |
2,081 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 18 | 22 AWG | 65/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.354" (8.99mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01910CABLE 3COND 22AWG BLACK 1M |
4,219 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 22 AWG | 26/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.150" (3.81mm) | - | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-01863CABLE 3COND 22AWG BLACK SHLD 1M |
2,040 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.165" (4.19mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0256" (0.650mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02429CABLE 4COND 24AWG BLACK SHLD 1M |
4,942 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 24 AWG | 26/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.150" (3.81mm) | Spiral | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|

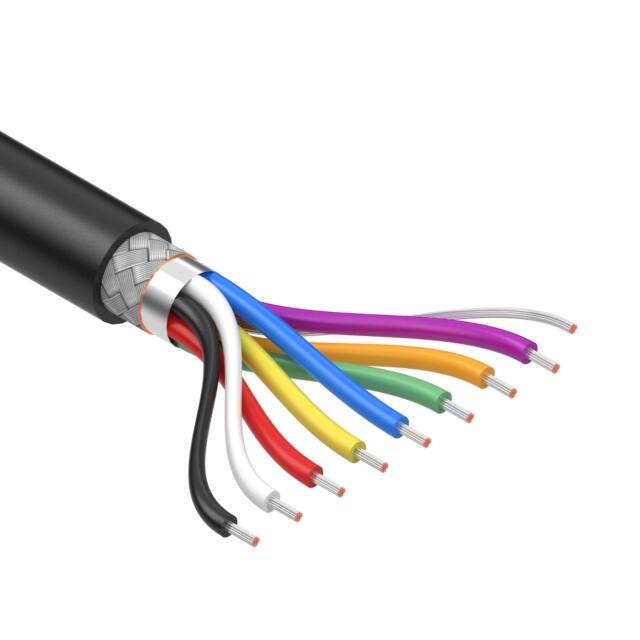

30-01608CABLE 8COND 18AWG BLACK SHLD |
4,133 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 18 AWG | 41/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.374" (9.50mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0386" (0.980mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01927CABLE 5COND 24AWG BLACK METER |
1,271 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 5 | 24 AWG | 26/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.157" (3.99mm) | - | Enter Number of Meters in Order Quantity | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
