Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

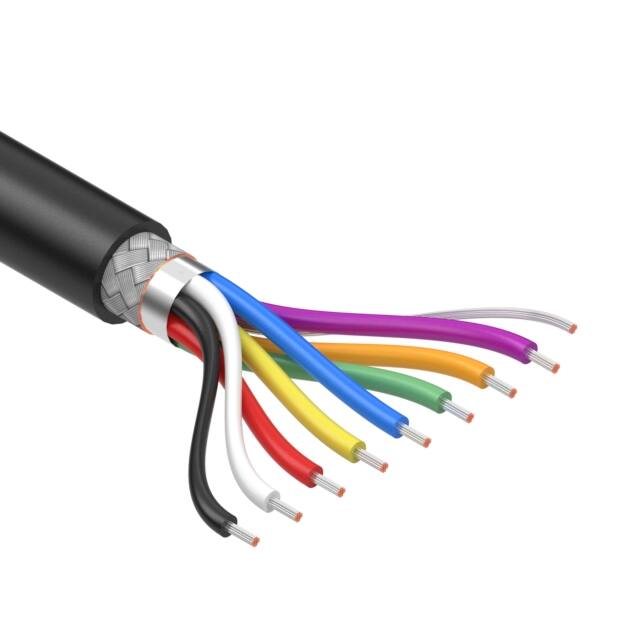

30-01610CABLE 8COND 22AWG BLACK SHLD |
4,635 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.295" (7.49mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01248CABLE 2COND 18AWG BLACK METER |
3,056 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 18 AWG | 41/0.0063" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.173" (4.39mm) | - | Enter Number of Meters in Order Quantity | Black | UL Style 4384 | - | 300 V | 105°C | - | 0.0189" (0.480mm) | - | - |
|
30-01404CBL 2COND 20AWG SHLD MPPE |
3,083 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.295" (7.49mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-01706CABLE 10COND 22AWG BLACK |
1,365 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.331" (8.41mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01162CABLE 7COND 32AWG BLK SHLD METER |
3,792 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 7 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.118" (3.00mm) | Spiral | Enter Number of Meters in Order Quantity | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01540CBL 10COND 28AWG SHLD MPPE |
3,436 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 28 AWG | 7/0.0047" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.209" (5.31mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02689CBL 9CON 24AWG BLK BIO |
1,498 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02833CBL 9CON 24AWG WHT BIO |
4,628 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02761CBL 9CON 24AWG GRY BIO |
1,645 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
30-00366CABLE 3COND 18AWG WHITE 1M |
2,060 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.216" (5.49mm) | - | 3.28' (1.00m) | White | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
