Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01228CABLE 2COND 28AWG BLACK SHLD 1M |
2,771 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 28 AWG | 19/0.0031" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.150" (3.81mm) | Braid | 3.28' (1.00m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01035CABLE 4COND 28AWG BLACK SHLD 1M |
2,195 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01151CABLE 7COND 24AWG WHITE SHLD |
2,053 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.197" (5.00mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01152CABLE 7COND 24AWG GRAY SHLD |
1,846 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.197" (5.00mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

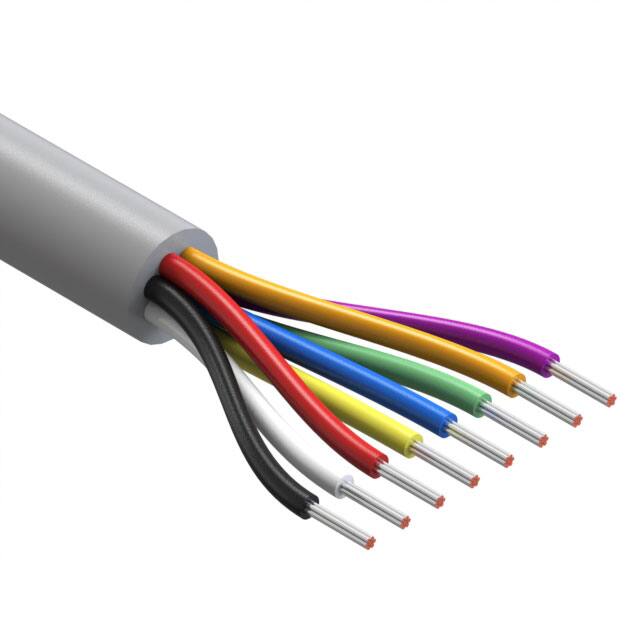

30-01315CABLE 8COND 20AWG GRAY |
2,453 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | - | 502.0' (153.0m) | Gray | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01314CABLE 8COND 20AWG WHITE |
3,836 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | - | 502.0' (153.0m) | White | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01021CABLE 3COND 26AWG BLACK SHLD 1M |
4,555 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 26 AWG | 7/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02454CABLE 7COND 26AWG BLACK SHLD |
3,993 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 26 AWG | 19/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.161" (4.09mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-02017CABLE 7COND 24AWG BLACK |
2,971 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 24 AWG | 41/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.197" (5.00mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0094" (0.240mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02471CABLE 9COND 28AWG BLACK SHLD |
1,020 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 28 AWG | 19/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.165" (4.19mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
