Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-03269CABLE 25COND 30AWG BLACK SHLD |
1,703 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 25 | 30 AWG | 10/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01007CABLE 2COND 24AWG BLACK SHLD 1M |
1,628 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 24 AWG | 11/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00180CABLE 3COND 28AWG WHITE SHLD 1M |
2,963 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.150" (3.81mm) | Foil, Spiral | 3.28' (1.00m) | White | - | - | 300 V | -10°C ~ 80°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
30-00179CABLE 3COND 28AWG BLACK SHLD 1M |
4,522 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.150" (3.81mm) | Foil, Spiral | 3.28' (1.00m) | Black | - | - | 300 V | -10°C ~ 80°C | - | 0.0327" (0.831mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02026CABLE 8COND 26AWG BLACK |
1,857 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 26 AWG | 26/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.197" (5.00mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-00653CABLE 2COND 28AWG BLK SHLD METER |
2,680 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.102" (2.59mm) | Spiral | Enter Number of Meters in Order Quantity | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01185CABLE 9COND 26AWG GRAY SHLD |
3,997 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

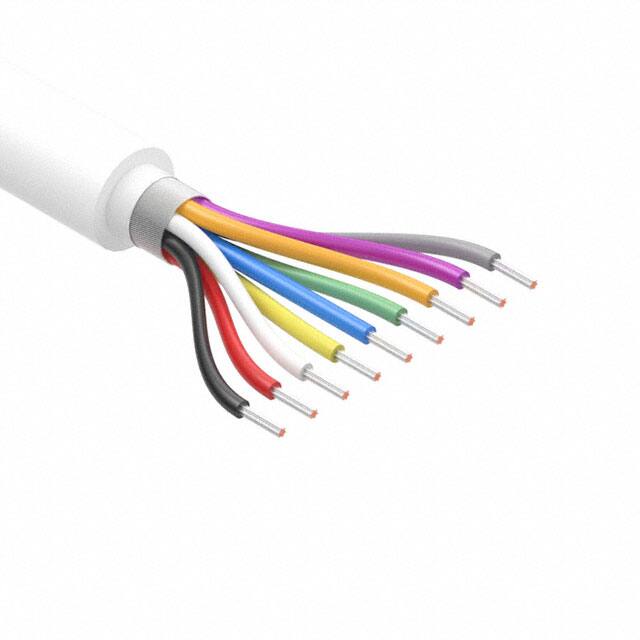

30-01184CABLE 9COND 26AWG WHITE SHLD |
2,769 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02783CBL 3CON 20AWG WHT BIO |
4,854 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02711CBL 3CON 20AWG GRY BIO |
2,966 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
